Bose ESP-00 Series II - 6 And RS-232 Connections; Connector; RS-232 Connector

Page 18 User Guide English
Installation and Operating Guide pro.Bose.com
6. CC-16 and RS-232 connections
CC-16 Connector
The CC-16 connector is an RS-485 network connection for use with
Bose
®
CC-16 zone controllers. Using the supplied Euroblock 3-pin
labeled connector, up to 15 CC-16 zone controllers can be networked to
control the ESP processor or any device on the Bose ControlSpace
®
control network. An external power supply is required. Note that in
addition to wiring the A and B terminals, it is highly recommended to
connect the ground terminal from the ESP processor to each CC-16 zone
controller. The maximum distance from ESP processor to any CC-16 is
2000 feet (610 m).
RS-232 Connector
The RS-232 connector provides a DB-9 male connector (type DTE) for
communication between the ESP processor and other serial-controlled
devices including third-party control systems.

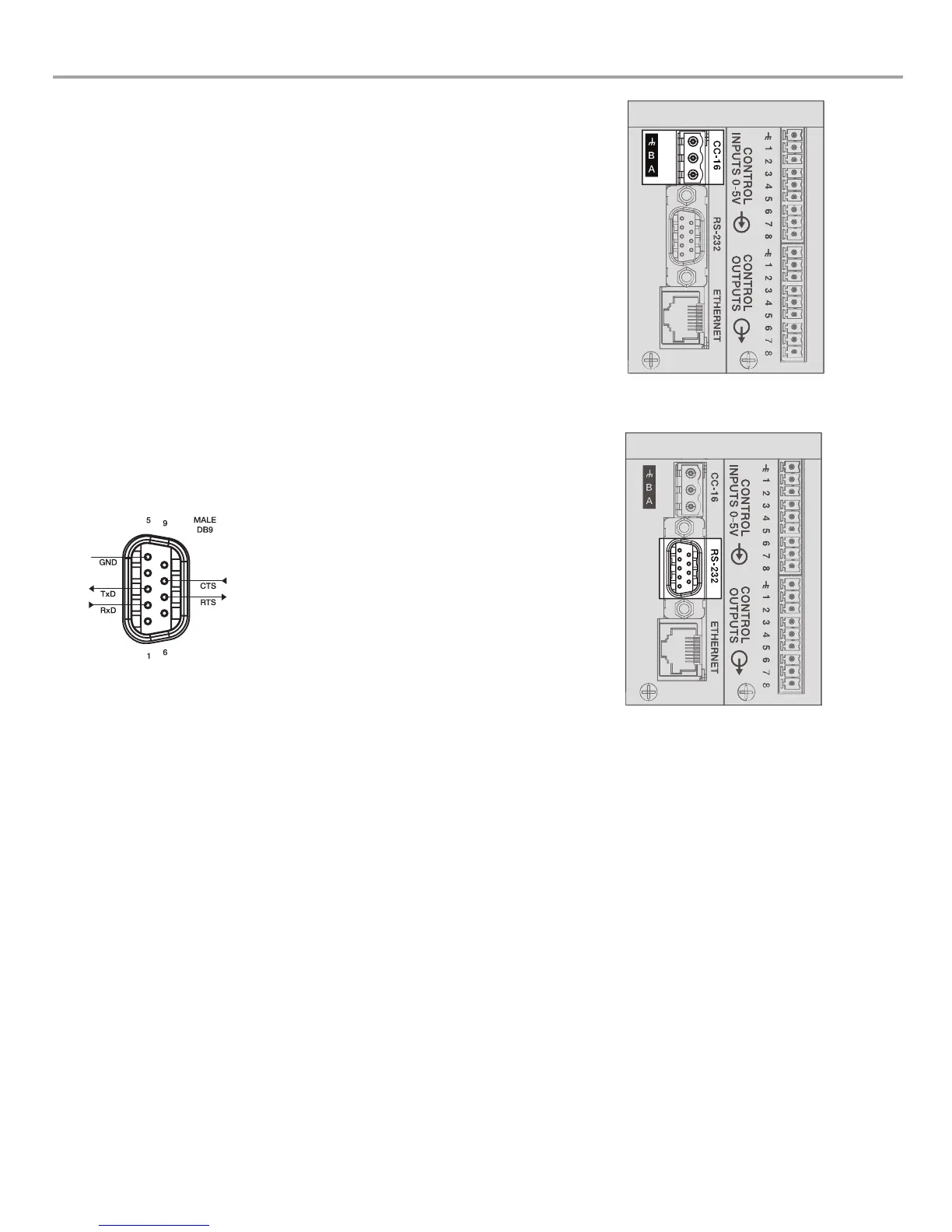

Figure 7. RS-232 Panel Connector Pinout
The default serial port settings are 38,400 baud, 8-bits length, 1 stop bit, no parity, and no flow control. If required these settings can be
changed using ControlSpace
®
Designer
™
software.
The document ControlSpace
®
Serial Control Protocol (downloadable from pro.Bose.com) outlines all supported command strings and
functions available to control/query Bose ESP processors and PowerMatch
®
power amplifiers.
