Operation

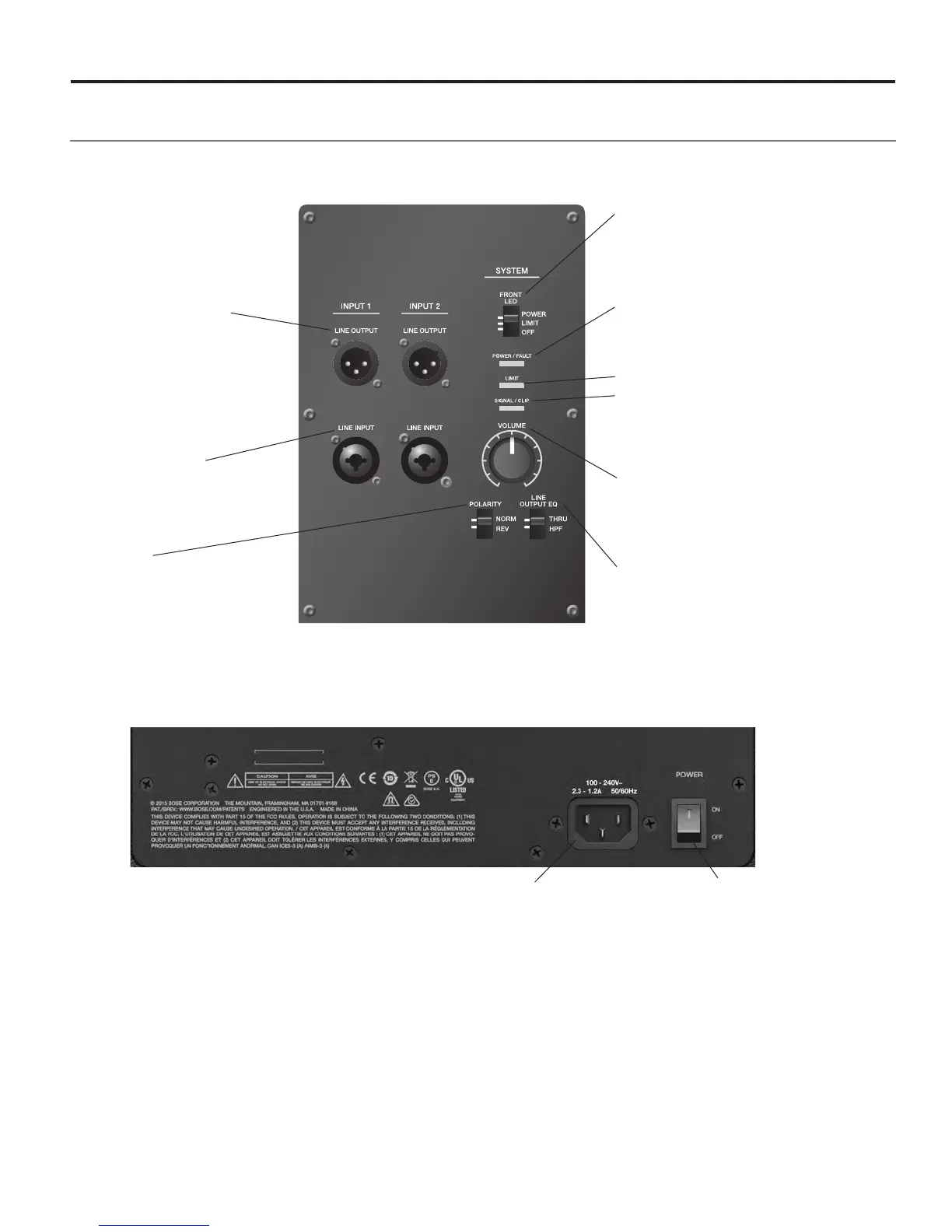

F1 Subwoofer Control Panel
Note: For a complete list of LED indications and behaviors, see “LED Indicators” on page 20.
FRONT LED selector switch:
• POWER enables LED to indicate power
status.
• LIMIT enables LED to indicate limiting.
• OFF turns off LED.
POWER/FAULT: indicates power/fault
status
• Blue = power on.
• Red = fault condition.
LIMIT: Amber = system limiting.
SIGNAL/CLIP: Displays the input signal
status in color.
• Green = signal present.
• Red = signal clipping - input signal too
high.
VOLUME – Adjusts subwoofer volume.
Middle detent position is 0dB – nominal
position when the F1 Model 812 and F1
Subwoofer are connected to a mixing
console. Use 0dB position for a line-level
signal input.
LINE OUTPUT EQ: (See “Power On/Off
Sequence” on page 12.)
• THRU passes input signal to the output
with no filtering. Recommended when
using with F1 Model 812.
• HPF passes input through a high-pass
(100 Hz) filter. Affects LINE OUTPUT
signals only.
LINE OUTPUT 1 & 2:
Individual outputs that provide
balanced line output signals
(pre-volume control) that can be
sent to powered loudspeakers
or additional subwoofers.
Note: When the LINE OUTPUT
EQ selector switch is set to
THRU, the LINE OUTPUT signal
will be full range.
LINE INPUT 1 & 2:
Combination XLR – ¼" phone
connector inputs that accept
line level signals.
AC input connector. POWER on/off switch.
POLARITY:
• NORM is used when when the
F1 Model 812 loudspeaker is
mounted on the supplied stand.
• REV may be used to better align
the bass when the subwoofer is
located further away from the F1
Model 812 loudspeaker.
