ALTERNATE SETUP
Option 1

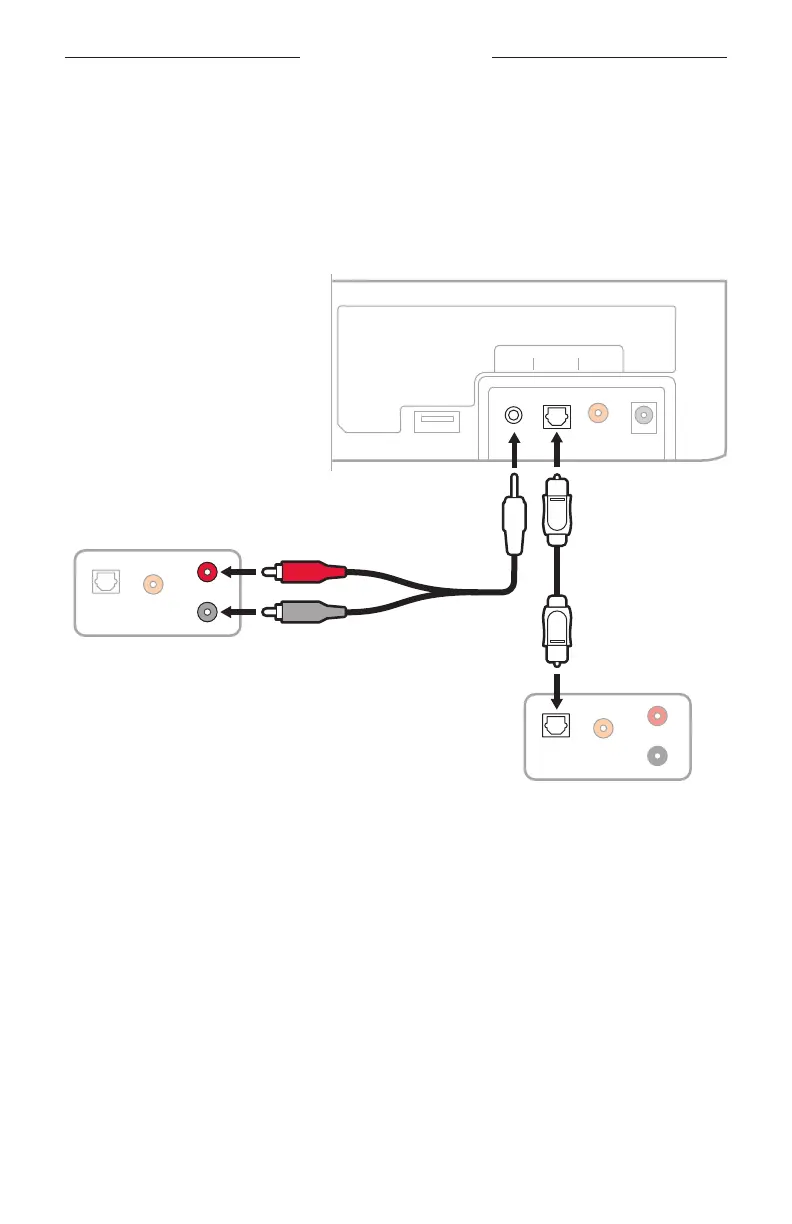

This figure shows two source connections using an optical cable and 3.5 mm to RCA
stereo cable (not provided).
CAUTION: If using an optical cable, remove the protective caps from both ends.
Inserting the plug in the wrong orientation can damage the plug and/or
the port.
3.5 mm to RCA
stereo cable
(not provided)
Service
TV Input
R
L
CoaxialOptical
R
L
CoaxialOptical
AUX Optical Coaxial Power
Audio OUT
Source 2
Audio OUT
Source 1
Soundbar port panel
