DISASSEMBLY PROCEDURE
1.4 Use your hands and lift up on the
Enclosure bottom as indicated in Figure 9.
2. Grille Removal
2.1 Perform procedure 1.
2.2 Pull the Grille out gently. Figure 10.
Note: When installing the Grille, make sure
the Grille inserted into the Grille guides.
3. I/O Panel Assy Removal
3.1 Remove the 10 screws securing the I/O
panel assy as indicated in Figure 11.

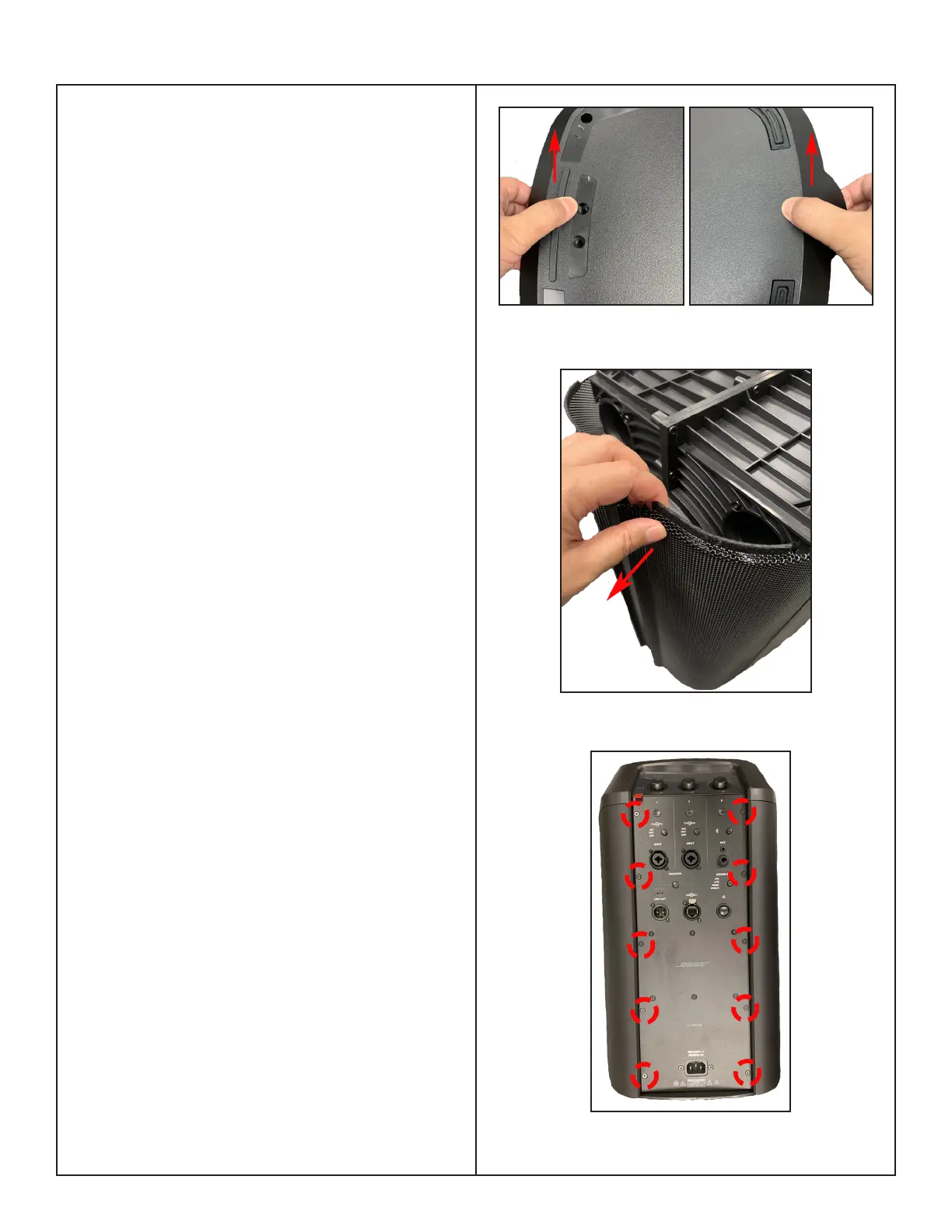

Figure 9. Enclosure Bottom Removal
Figure 10. Grille Removal
Figure 11. I/O Panel Assy Screws Removal
