Bose L1 Pro8

40
DISASSEMBLY PROCEDURE
1.2 Lift o󰀨 the Top and Lower endcap. Figure
26.
Note: Be careful the cable of Lower endcap is
very short.
1.3 Grasp the Grille and carefully slide the
Grille o󰀨 of the ba󰀪e. Figure 27.
Re-assembly Note: Be sure there is su󰀩cient
gasket material on the battle to prevent buzz-
es as the red arrow indicated in Figure 28.
Gasket material PN: 843112-0102
Perform the Array sweep tests after replacing
the Grille.
2. Drivers Removal
2.1 Perform procedure 1.
2.2 Remove the 4 screws securing the 1
Driver to the ba󰀪e as indicated in Figure 29
(left).
2.3 Detach the Driver's cable by pressing the
white fastener. Figure 29 (right).
Array Extensions
Note: The Array extensions are not repair-
able.
If damaged they must be replaced.

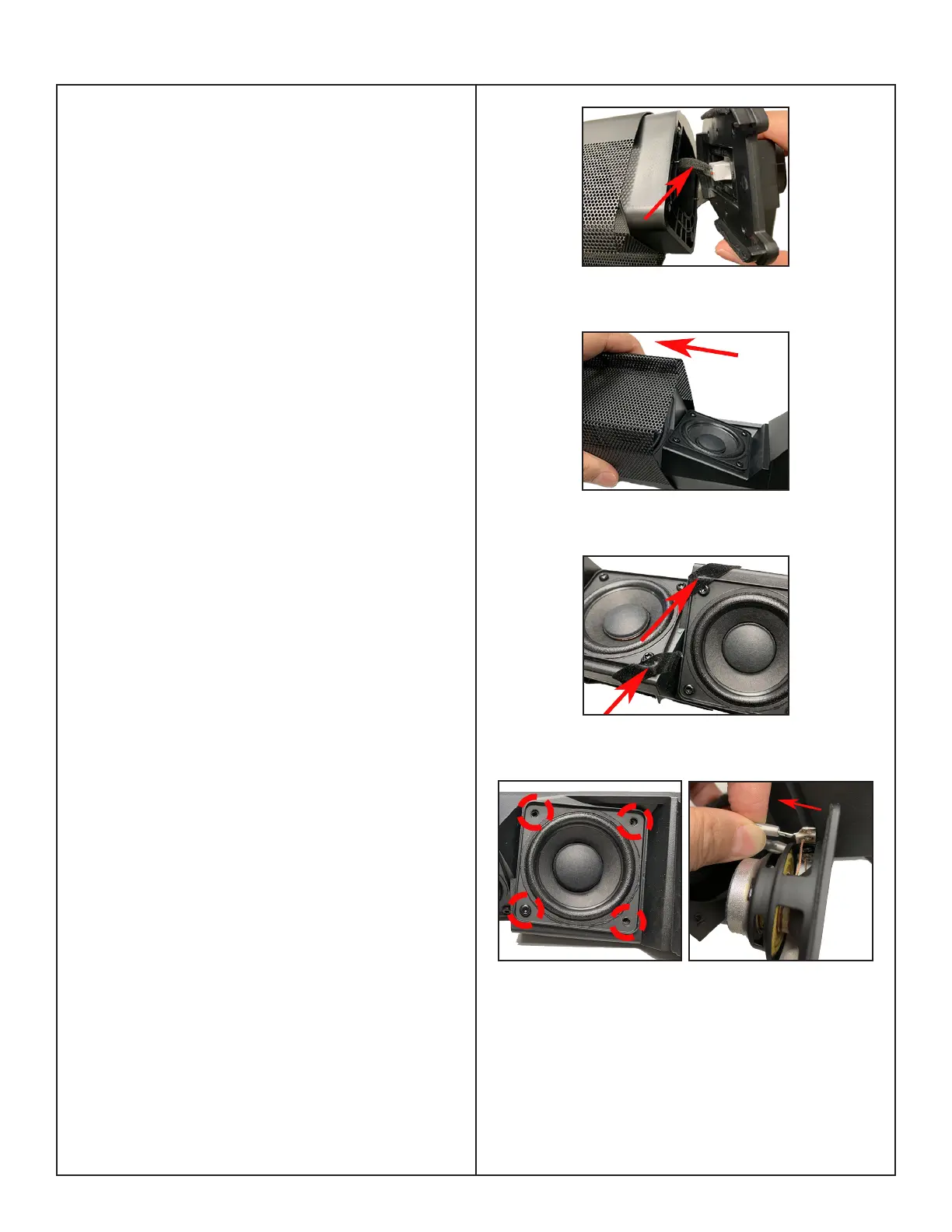

Figure 26. Lower Endcap Removal
Figure 27. Array Grille Removal
Figure 28. Gasket Material Locations
Figure 29. Driver Screws & Cable Removal
