16 - Installation Guide
Installation
pro.Bose.com

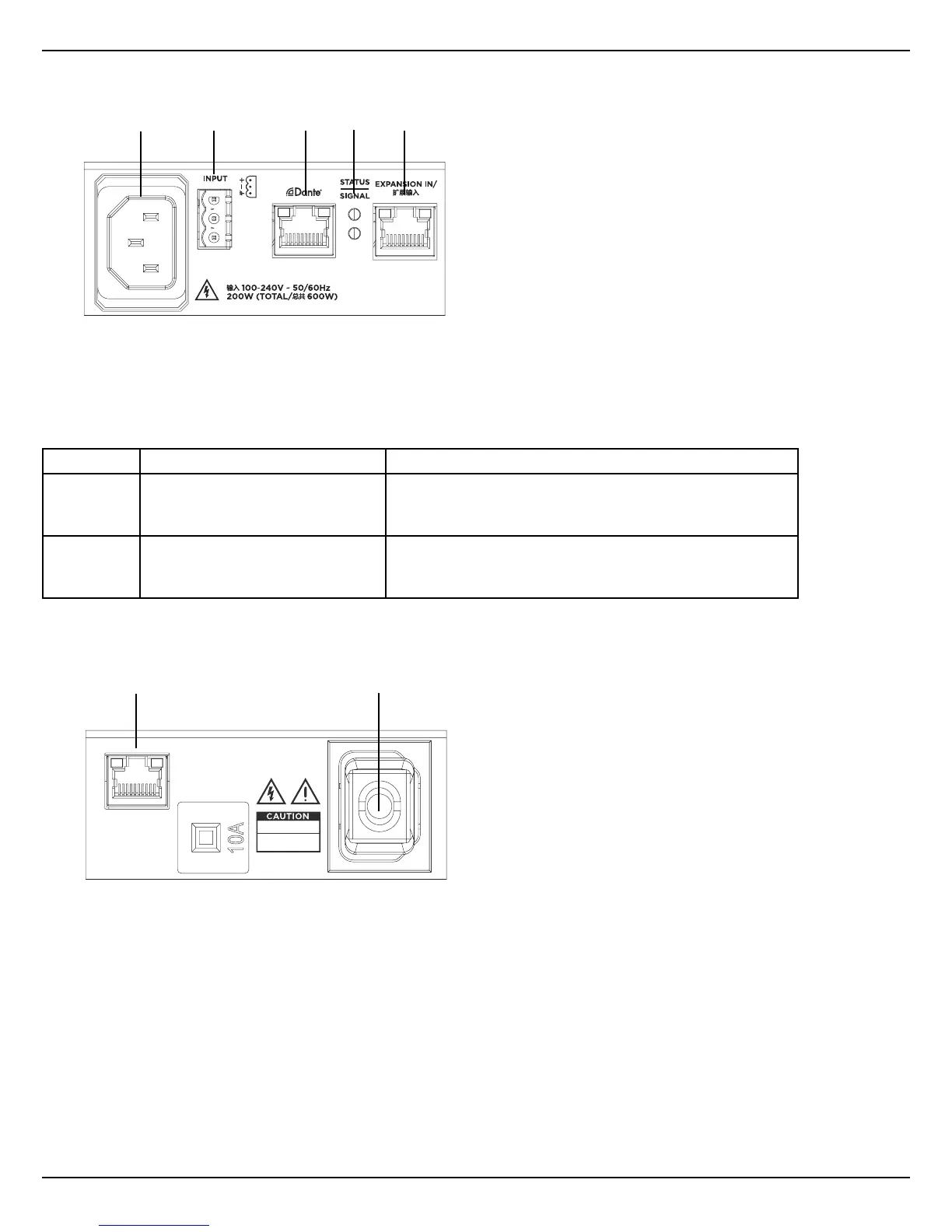

Connector Panels
Input Panel
q Power connector - Use the included power cable to connect to external power, or use the power interconnect
cable to connect multiple loudspeaker units. Use the power interconnect cable that is appropriate for your region.
w Analog audio connection - Connect to analog audio source using the included 3-pin Euroblock connector.
e Dante Input - Supports two channels of Dante® digital audio input (RJ-45).
r Network connectivity indicator lights:
LED Function Behavior
LED #1 Status/Fault LED Solid green: Power on, system OK
Solid or blinking red: System fault
Blinking green: Identify module, firmware update
LED #2 Analog audio signal present Green: Signal present
Yellow: Limiting
Red: Clipping
t Expansion connection - LVDS audio and control expansion connection (RJ-50). Use when connecting multiple
MSA12X loudspeaker modules.
Output Panel
q Expansion connection - Audio and control connection (RJ-50). Use when connecting multiple MSA12X
loudspeaker modules.
w Power connector - Use the included power interconnect cable to connect multiple MSA12X loudspeaker
modules. Use the power interconnect cable that is appropriate for your region.
NOTE: The MSA12X is commonly installed with the Input Panel located at the bottom of the unit, and the Output
Panel located at the top of the unit. However, the unit can be rotated 180 degrees for installation, which reverses
the positions of the input and output panels. See page 20 for additional instructions when installing the unit in
this position.
RISK OF ELECTRICAL
SHOCK. DO NOT OPEN.
EXPANSION OUT/
۞ىӞ
CONNECT ONLY TO MSA12X/
эܯӰ
MSA12X
100-240V ~ 50/60Hz
4A/400W MAX
AVIS: RISQUE DE CHOC.
ELECTRIQUE NE
PAS OUVRIR.
q w
q
w t
r
e
