Controls, Indicators and Connections
English Deutsch FrançaisDansk Español Italiano SvenskaNederlandsDansk Italiano SvenskaDeutsch NederlandsEnglish FrançaisEspañol

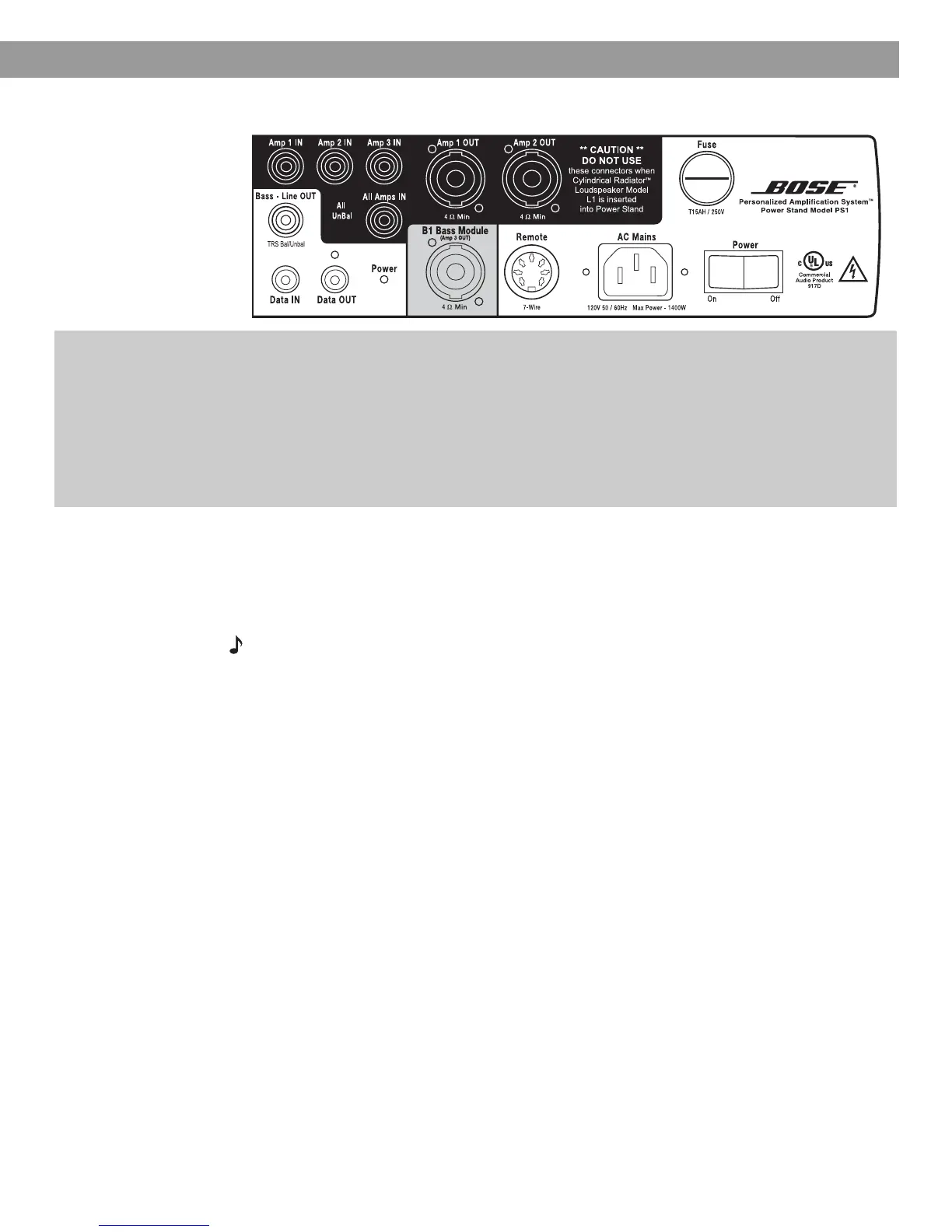

Power amp patch, bass, remote and AC power connections
Amp 1 IN............................................. Amplifier 1 input jack
Amp 2 IN............................................. Amplifier 2 input jack
Amp 3 IN............................................. Amplifier 3 input jack
All Amps IN ........................................ Input jack to all amplifiers
Amp 1 OUT......................................... Amplifier 1 output jack
Amp 2 OUT......................................... Amplifier 2 output jack
B1 Bass Module (Amp 3 OUT).......... Bass output (amplifier 3 output) jack. Used to drive
one or two B1 bass modules
Bass - Line OUT ................................ Balanced or unbalanced bass signal output for
extended bass configurations
Note:
For more information on extended bass configurations, visit www.bose.com/musicians.
Data IN ............................................... Digital data input. Used for updating product software
Data OUT ........................................... Channel 1/2 digital output
Remote............................................... Input connection for the R1 remote control
AC Mains............................................ 3-conductor power cord connections
Fuse.................................................... AC power fuse
On/Off................................................. PS1 power stand on/off switch
Used only when an L1
Cylindrical Radiator™
loudspeaker is NOT
installed in the PS1
power stand.
