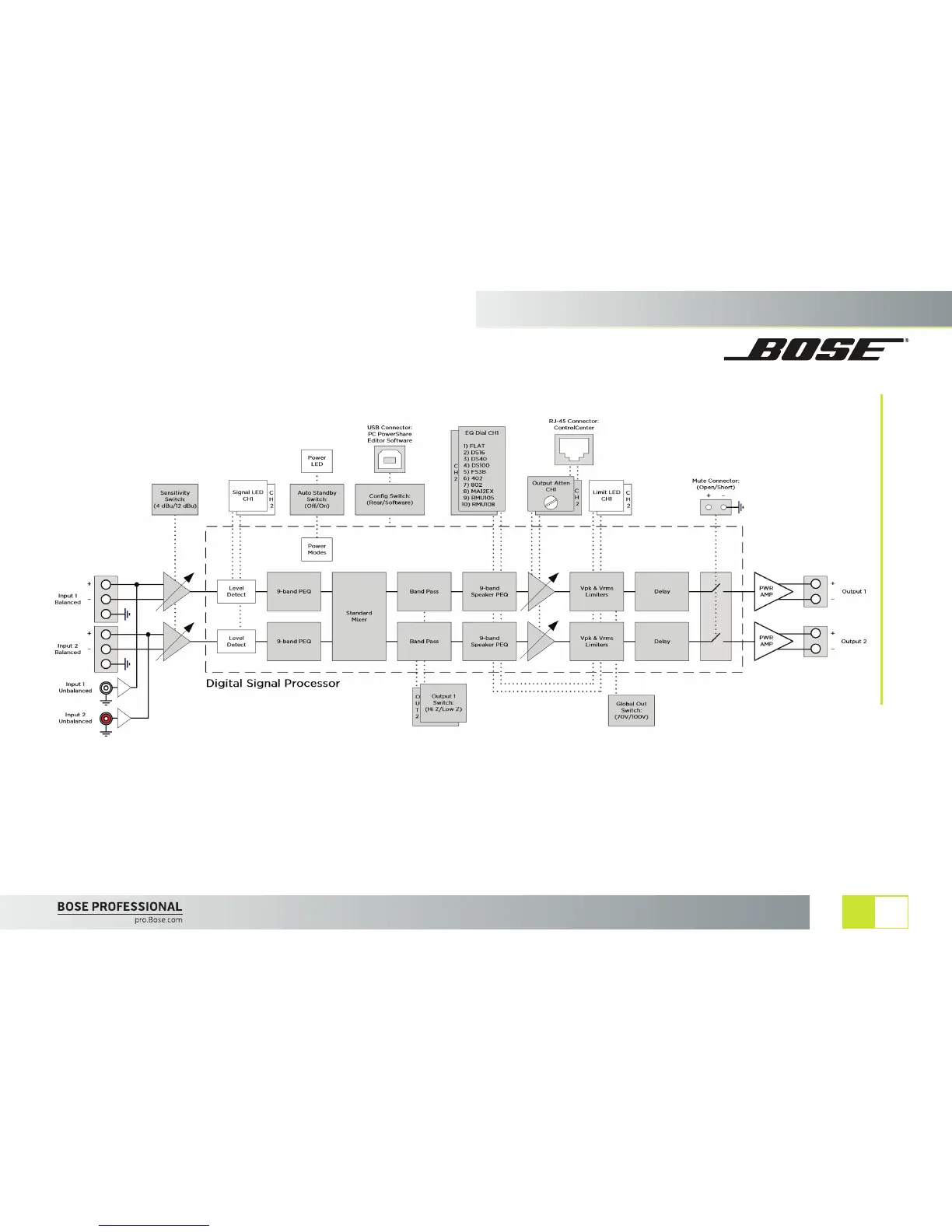

TECHNICAL BLOCK DIAGRAM
PowerShare PS602
adaptable power amplifier
1
OF 1
All information subject to change without notice.
© 2016 Bose Corporation
All trademarks are those of theirrespective owners.
Input 1
Balanced
Input 2
Balanced
Input 1
Unbalanced
Input 2
Unbalanced
BOSE PROFESSIONAL
pro.Bose.com
~
~
Digital Signal Processor
USB Connector :
PC PowerShare
Editor Software
Config Sw itch:
(Rear/Software)
Standard
Mixer
EQ Dial CH 1
1)
FLAT
2) 0516
3) DS40
c 4) DS100
H 5) FS3B
2 6) 402
7) 802
8) MA12EX
9) RMU105
10) RMU108
0 Output1
u Switch:
T (Hi Z/Lo w Z)
RJ - 45 Connector :
Contro i Center
Mute Co nnector:
(Open/Short)
+
~ I·
I
I
I
I
Output 1
Output 2
