Installation and Safety Guidelines Page 3
pro.Bose.com Components
This document is intended to provide professional installers of sound reinforcement equipment basic guidelines for the design and
assembly of Bose RoomMatch™ loudspeaker arrays. The document will list the Working Load Limits of each component and provide
general guidelines for determining the acceptable working loads for the entire array. In general, information that is available in other
documents for RoomMatch components is not duplicated in this document. Please see pro.Bose.com to download these files.
Component Description – Loudspeaker Modules
Each RoomMatch module is a 2-way, full-range loudspeaker designed to form progressive directivity arrays for fixed-installation sound
reinforcement of the highest-quality live music and speech. Overcoming the limitations of both line array and point-source conventional
designs, RoomMatch modules define a new category of loudspeaker by delivering unprecedented sound quality for a wide variety of
room sizes and shapes, acoustic requirements, and budgets. System flexibility provides precise, constant-directivity coverage, from
single modules up to 8-module arrays, to ensure consistent tonal balance for many different room shapes and acoustic requirements.
The full-range modules are shipped with integrated side-plate array rigging hardware. The rigging system is designed to allow fast con-
struction of typical fixed-installation arrays of up to 8 modules, while maintaining a 10:1 Safety Factor.
A companion subwoofer, the RoomMatch RMS215 module is also available for systems that require additional low-frequency level and
impact. The RMS215 module is designed to integrate with RoomMatch™ arrays using the optional side-plate mounting kit for suspend-
ed applications. The side plates are not required for floor-mounted installations.

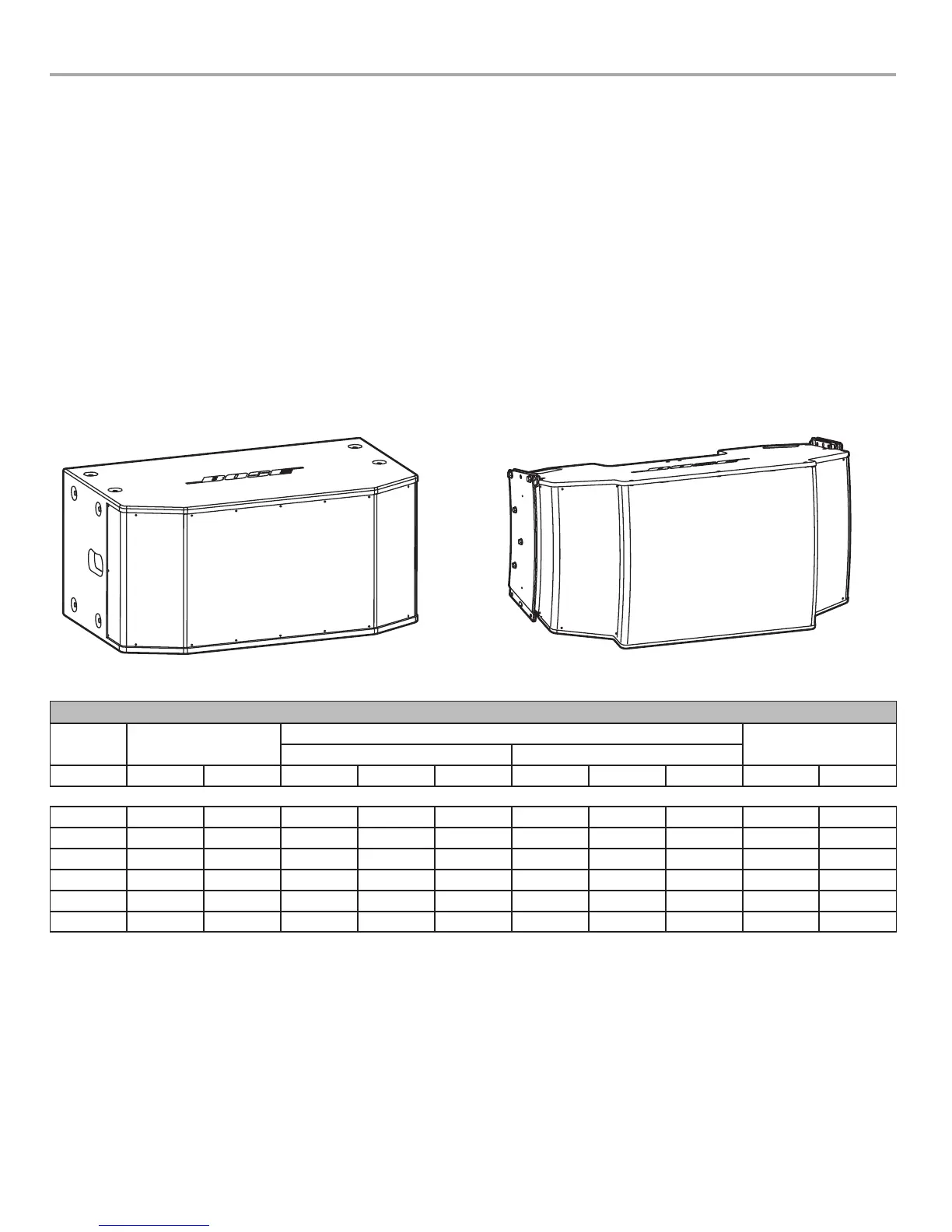

Figure 2. RoomMatch™ RM7020 module
Figure 1. RoomMatch™ RMS215 subwoofer module
Figure 3. RoomMatch™ Module Dimensions and Weights
Dimensions and Weights
Array
Module
Coverage Dimensions Net Weight
Inches mm
H° V° Height Width Depth Height Width Depth lb kg
RMxx05 Any 5 16.9 39.1 23.6 428 993 598 123 55.8
RMxx10 Any 10 17.9 39.1 23.6 455 993 598 123 55.8
RMxx20 Any 20 20.0 39.1 23.6 509 993 598 123 55.8
RMxx40 Any 40 24.0 39.1 23.6 610 993 598 124 56.3
RMxx60 Any 60 27.5 39.1 23.6 700 993 598 125 56.7
RMS215* Omni Omni 17.8 37.1 21.8 452 943 553 132 59.9
*Dimensions and weight of RMS215 do not include RMSFLY rigging kit.
