Page 4 Installation and Safety Guidelines
Components pro.Bose.com

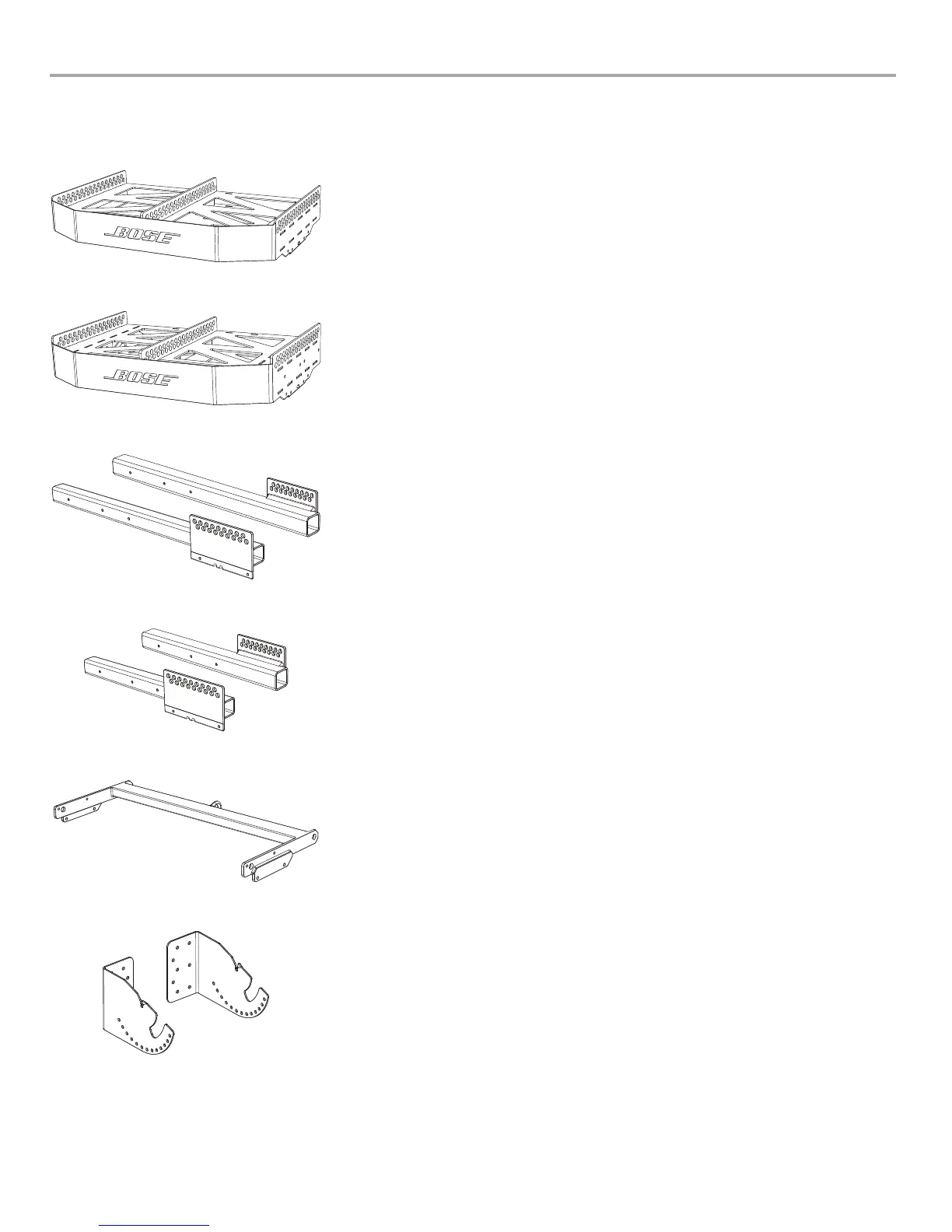

Component Description – Rigging Hardware and Accessories
RoomMatch™ Array Frame rigging accessories are designed for fixed-installation overhead suspension of RoomMatch full-range and
subwoofer array modules. Use with non-RoomMatch loudspeakers is not recommended.
RMAFSM Small Array Frame. Use with 1 to 4 full-range or subwoofer modules in
overhead suspended arrays.
RMAFLG Large Array Frame. Use with 4 to 8 full-range or subwoofer modules in over-
head suspended arrays. Compatible with Long and Short Extender Bars (see below).
When used with Extender Bars, the Large Frame will support up to 8 modules, with an
additional 2 subwoofer modules mounted behind the primary array. This is the largest
array possible and typically requires the RMPULL bracket for 3-point suspension for
most array pitch angles.
RMXLNG Long Extender Bars. Use with Large Array Frame to accommodate up to 2
subwoofer modules mounting in back of primary array. Also provides additional shackle
mounting holes to allow more extreme angles for 2-point mounting. Kit of left and right
pair with fasteners.
RMXSRT Short Extender Bars. Use with Large Array Frame to accommodate up to 2
subwoofer modules mounting in back of primary array. Also provides additional shackle
mounting holes to allow more extreme angles for 2-point mounting. Kit of left and right
pair with fasteners.
RMPULL Pull Back Bracket. Use with bottom-most array module to provide third-
point suspension to building structure to allow more extreme downward angle of arrays
than possible from 2-point, gravity-hang suspension. The RMPULL bracket can also be
used as a “mini frame” for suspending 1 or 2 modules. Single bracket with fasteners.
RMBRKT Surface-Mount Bracket. Allows a single full-range module to be mounted
on flat surfaces, such as building walls or ceilings. The brackets allow pitch angle
adjustment from 0° up to -90°, depending on module. Brackets attach to the side-plate
rigging hardware of each full-range module. (RMBRKT bracket is NOT intended for use
with RoomMatch subwoofer modules.) Kit of left and right pair with fasteners.
