PRODUCT DESCRIPTION
SoundDock
®
is a powered acoustic package for current and future versions of Apple’s iPod portable
MP3 player. It takes the design form of a “picture frame” - a rectangular speaker package that allows
the iPod to dock into the middle. SoundDock with docked iPod is an elegant, highly functional, and
great-sounding system for use in the living room, kitchen, or bedroom. Bose
®
developed and manu-
factured the product with input from Apple. Apple and Bose will advertise and sell the product.

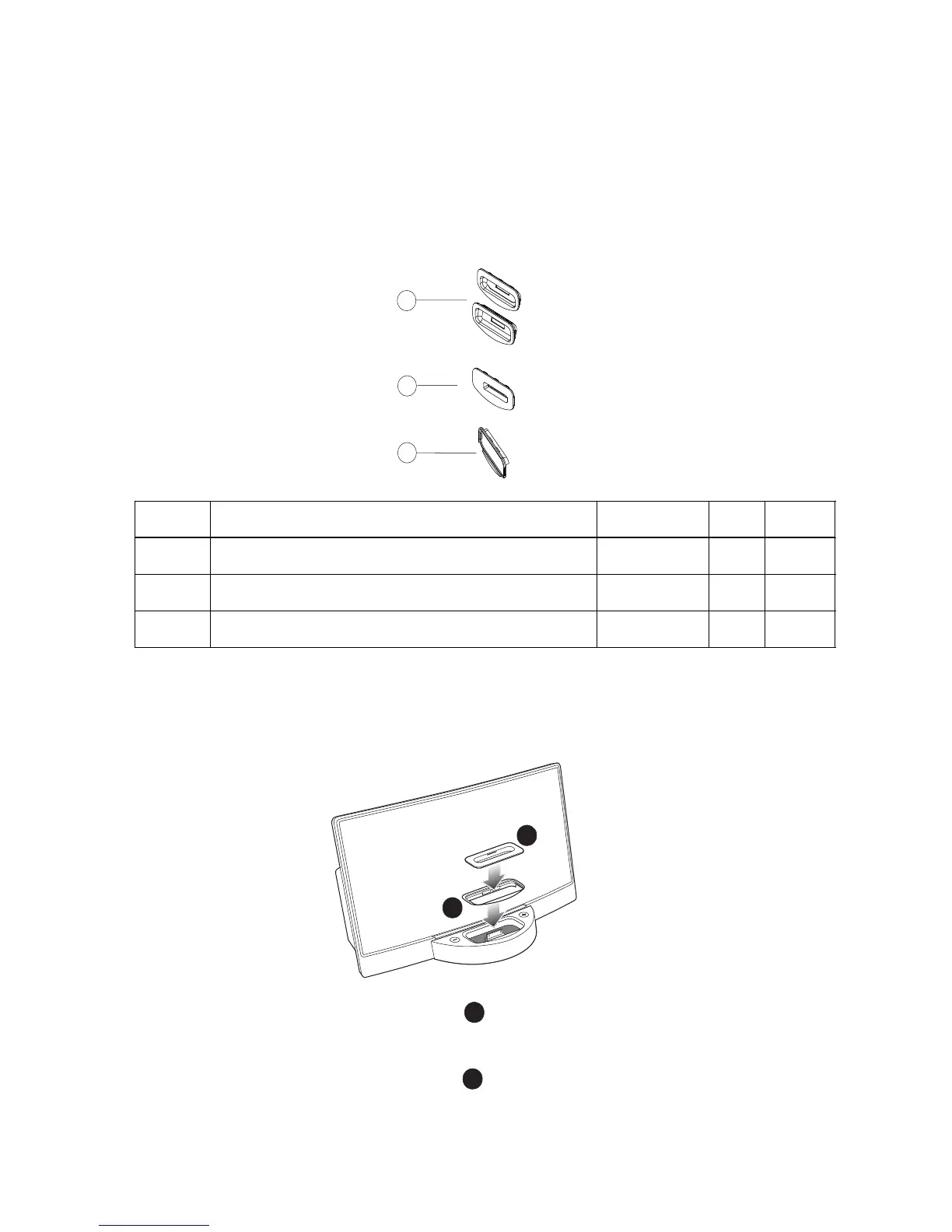

There are 4 adapters shipped with the product.
1
1
Item
Number
Description Part Number QTY Note
1 Kit, Inserts, iPod, 2pcs, WHT
Kit, Inserts, iPod, 2pcs, BLK
285755-002
285755-012
1
2 Insert, iPod, Nano, 1pcs, WHT
Insert, iPod, Nano, 1pcs, BLK
292498-001
292498-002
1
3 *Universal Insert, iPod, Adapter, 1pcs, WHT
*Universal Insert, iPod, Adapter, 1pcs, BLK
042246
042399
1
1
1
.
2
3
.
.
*The universal insert (Item number 3 above) allows an Apple Dock adapter to work with the
SoundDock. Some of the new iPods players will require the following set up:
2
2
1
1
Apple Dock adapter (included with with an iPod)
Universal insert for use with Apple Dock adapters

Bose SoundDock Specifications

General

Compatibility	iPod
Product color	Black
Dimensions (WxDxH)	302.6 x 168.9 x 164.7 mm

Weight and Dimensions

Weight	2070 g
