CHANGING THE BATTERY
When the indicator goes dim or no longer
lights while an effect is on, it means that the
battery is nearly dead and must be re-
placed.
Replace the battery following the steps
below.
1 Loosen the thumbscrew at the front of the
pedal, then lift the pedal upwards to open
the unit.
* The thumbscrew can be left in the pedal
while changing the battery.
2 Remove the old battery from the battery
housing, and remove the snap cord con-
nected to it.
3 Connect the snap cord to the new battery,
and place the battery inside the battery
housing.
* Be sure to carefully observe the battery's
polarity (+ versus -).
4 Slip the coil spring onto the spring base on
the back of the pedal, then close the
pedal.
* Carefully avoid getting the snap cord
caught in the coil spring.
5 Finally, insert the thumbscrew into the
guide bush hole and fasten it securely.

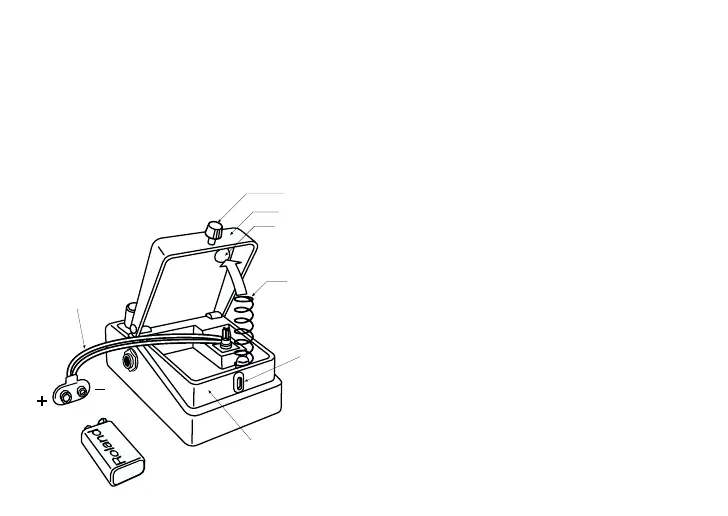

Thumbscrew
Pedal
Spring Base
Coil Spring
Guide
Bush
Hole
Battery
Housing
Battery Snap Cord
Battery Snap
9V Battery
