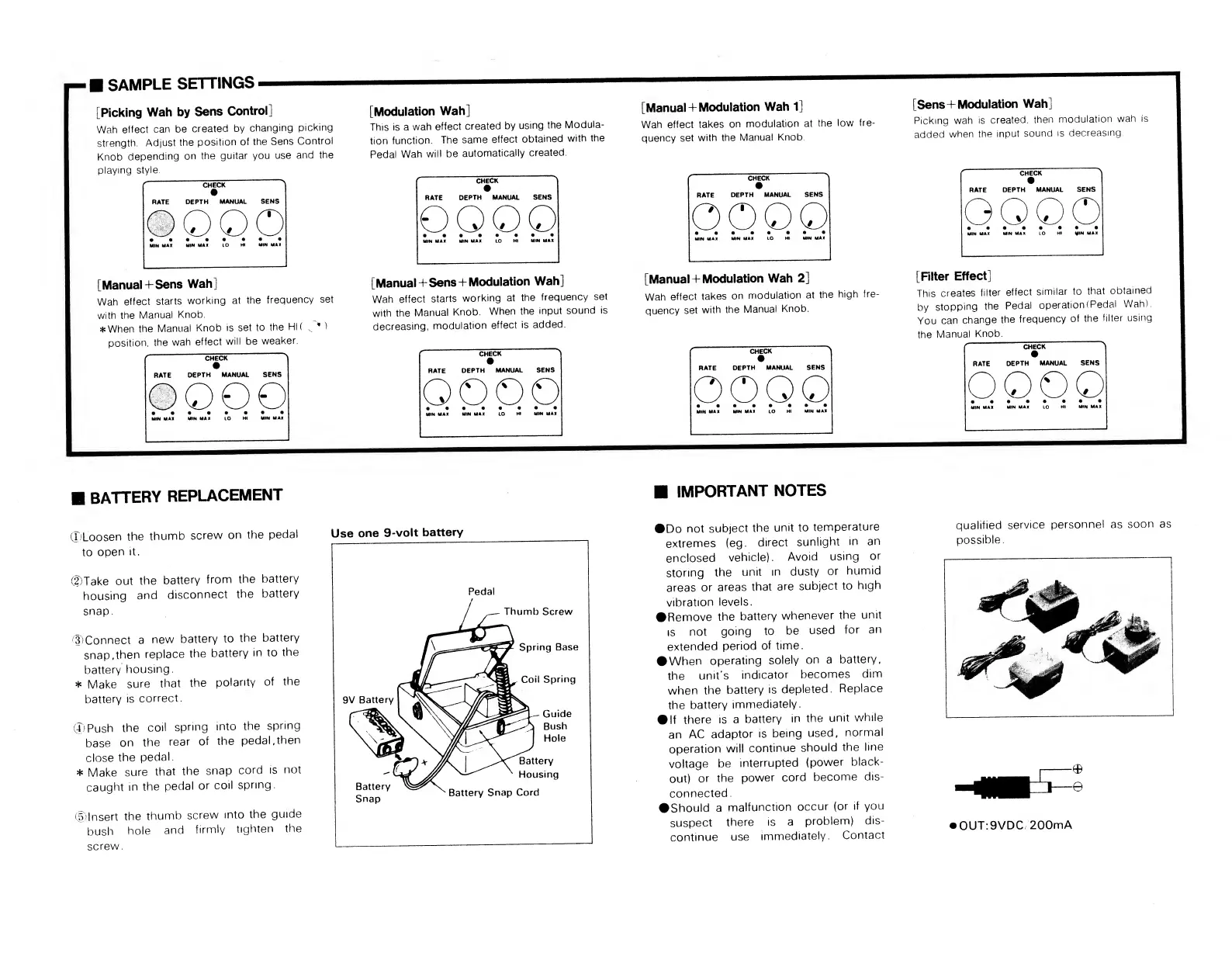

■ SAMPLE SETTINGS
[Picking Wah by Sens Control]
Wah effect can be created by changing picking
strength. Adjust the position of the Sens Control
Knob depending on the guitar you use and the
playing style.
[Manual+Sens Wah]
Wah effect starts working at the frequency set
with the Manual Knob.
* When the Manual Knob is set to the HI ( 0 )
[Modulation Wah]
This is a wah effect created by using the Modula¬
tion function. The same effect obtained with the
Pedal Wah will be automatically created.
[Manual + Sens+Modulation Wah]
Wah effect starts working at the frequency set
with the Manual Knob. When the input sound is
decreasing, modulation effect is added.
■ BATTERY REPLACEMENT
0 Loo sen the thumb screw on the pedal
to open it.
(2) T a k e out the battery from the battery
housing and disconnect the battery
snap.
(3) C o n n e c t a new battery to the battery
snap,then replace the battery in to the
battery housing.
* Make sure that the polarity of the
battery is correct.
(4) P u s h the coil spring into the spring
base on the rear of the pedal,then
close the pedal.
* Make sure that the snap cord is not
caught in the pedal or coil spring.
©Insert the thumb screw into the guide
bush hole and firmly tighten the
screw.
Use one 9-volt battery
[Manual + Modulation Wah 1]
Wah effect takes on modulation at the low fre¬
quency set with the Manual Knob.
[ManualsModulation Wah 2]
Wah effect takes on modulation at the high fre¬
quency set with the Manual Knob.
[Sens+Modulation Wah]
Picking wah is created, then modulation wah is
added when the input sound is decreasing.
[Filter Effect]
This creates filter effect similar to that obtained
by stopping the Pedal operation (Pedal Wah).
You can change the frequency of the filter using
the Manual Knob.
■ IMPORTANT NOTES
•Do not subject the unit to temperature
extremes (eg. direct sunlight in an
enclosed vehicle). Avoid using or
storing the unit in dusty or humid
areas or areas that are subject to high
vibration levels.
• Remove the battery whenever the unit
is not going to be used for an
extended period of time.
• When operating solely on a battery,
the unit's indicator becomes dim
when the battery is depleted. Replace
the battery immediately.
• If there is a battery in the unit while
an AC adaptor is being used, normal
operation will continue should the line
voltage be interrupted (power black¬
out) or the power cord become dis¬
connected .
• Should a malfunction occur (or if you
suspect there is a problem) dis¬
continue use immediately. Contact
qualified service personnel as soon as
possible.
• OUT:9VDC 200mA
