Boss DD-8 User Manual

Connections
7
Footswitch connections

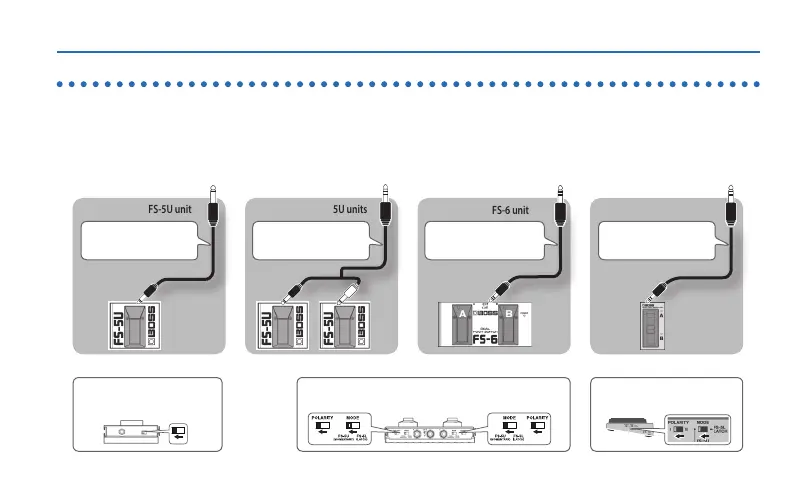

Refer to the diagrams for details on the appropriate cables to use and the setting of the polarity switch.
* When connecting a footswitch, you must turn o the power before connecting or disconnecting cables. Failure to observe this
precaution will cause malfunctions.
Connecting one FS-7 unit
Stereo 1/4” phone type
,
Stereo 1/4” phone type
Connecting one FS-6 unit
Stereo 1/4” phone type
,
Stereo 1/4” phone type
Connecting one FS-5U unit
1/4” phone type
,
1/4” phone type
Connecting two FS-5U units
Stereo 1/4” phone type
,
1/4” phone type × 2
FS-5U POLARITY switch
A&B
RING TIP
A&B
FS-6 MODE/POLARITY switch FS-7 MODE/POLARITY switch
Connect to TEMPO/EXP jack Connect to TEMPO/EXP jack Connect to TEMPO/EXP jack Connect to TEMPO/EXP jack

Boss DD-8 Specifications

General

Type	Digital Delay
Maximum Delay Time	10 seconds
Power Supply	9V DC
Tap Tempo	Yes
Presets	No
Expression Pedal Input	Yes
Current Draw	65 mA
Input Impedance	1 M ohm
Output Impedance	1 k ohm
Modes	ANALOG, STANDARD, TAPE, WARM, REVERSE, SHIMMER, WARP
Delay Time	1 ms to 10 seconds
Outputs	2 x 1/4 inch
Dimensions	73 x 129 x 59 mm
Mono/Stereo	Mono/Stereo
Looper	Yes
Bypass	Buffered bypass
Recommended Load Impedance	10k ohms or greater
Accessories	Owner's Manual, Leaflet (USING THE UNIT SAFELY)
Weight	430 g
Connectors	1/4" jacks
