Boss MC900B - Wire Diagram

3
ENGLISH
GROUND CABLE
METAL FRAME
(R) OUTPUT RED
(L) OUTPUT WHITE
PRE-AMP OUTPUT
FUSE REPLACEMENT
WITH ATO TYPE ONLY
15 AMP
(R) INPUT RED
(L) INPUT WHITE
AUX INPUT
USB
CHARGING
(1A MAX)
REMOTE
CONTROL
4-OHM
SPEAKERS
WHITE
GRAY
GREEN
VIOLET
LEFT
CHANNEL 1
RIGHT
CHANNEL 1
LEFT
CHANNEL 2
RIGHT
CHANNEL 2
WHITE/BLK
GRAY
GREEN/BLK
VIOLET/BLK
+
-
+
-
+
-
+
-
+12V YELLOW
REMOTE OUT
(500mA MAX)
ORANGE
+12V BLUE
IGNITION
BATTERY
+12V RED
20A
CHASSIS
GROUND
POINT
BATTERY
DIRECT BATTERY
WIRING CIRCUIT
BLACK
OPTIONAL
FUSE AND FUSE HOLDER
(NOT INCLUDED)
INSERT
CHASSIS
GROUND
POINT
PINK
ANTENNA
(DO NOT CUT)
15
OPTIONAL BACKLIGHTING
ON/OFF CONTROL
(DO NOT GROUND OR
CONNECT TO +12V)

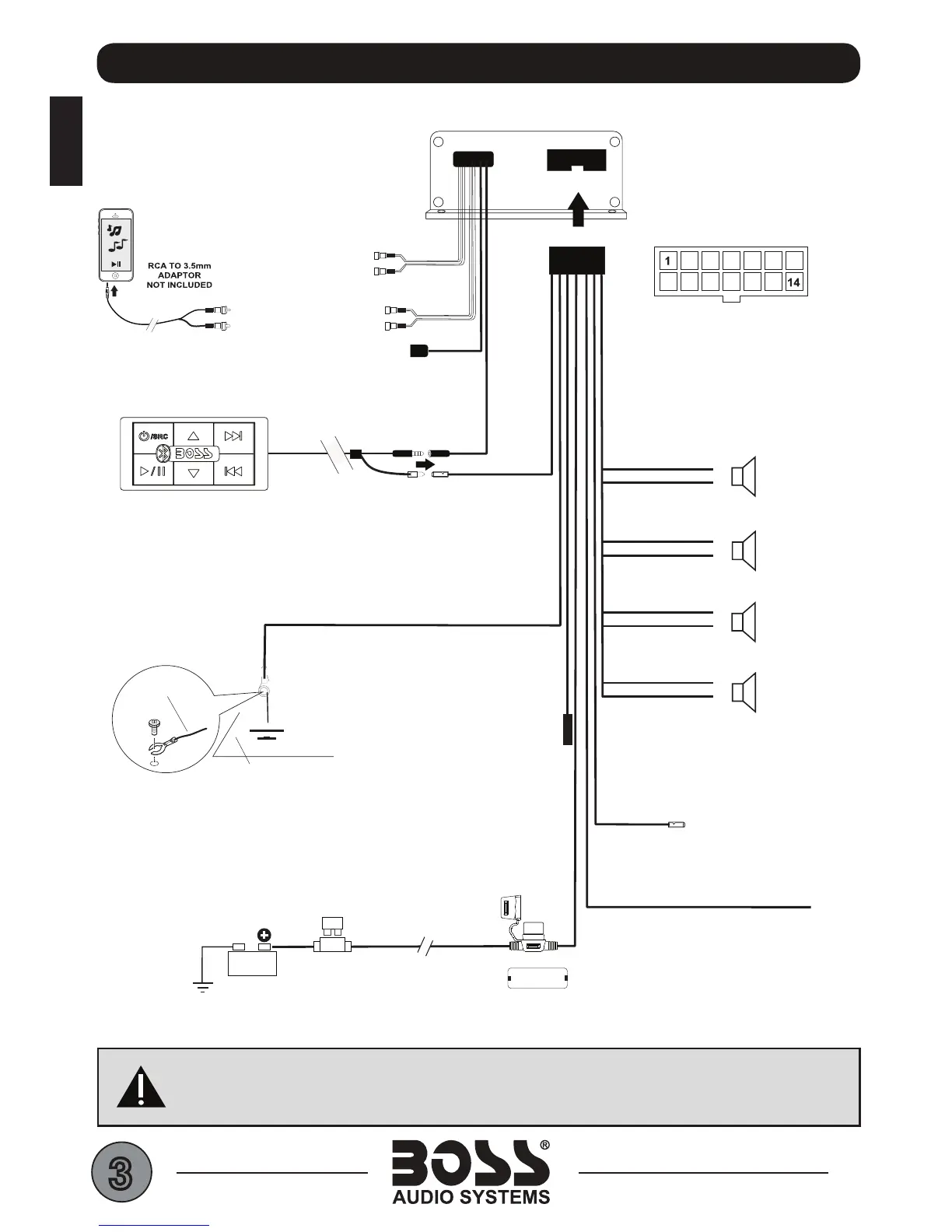

WIRE DIAGRAM
CAUTION!! Do not ground or short the PINK antenna wire
