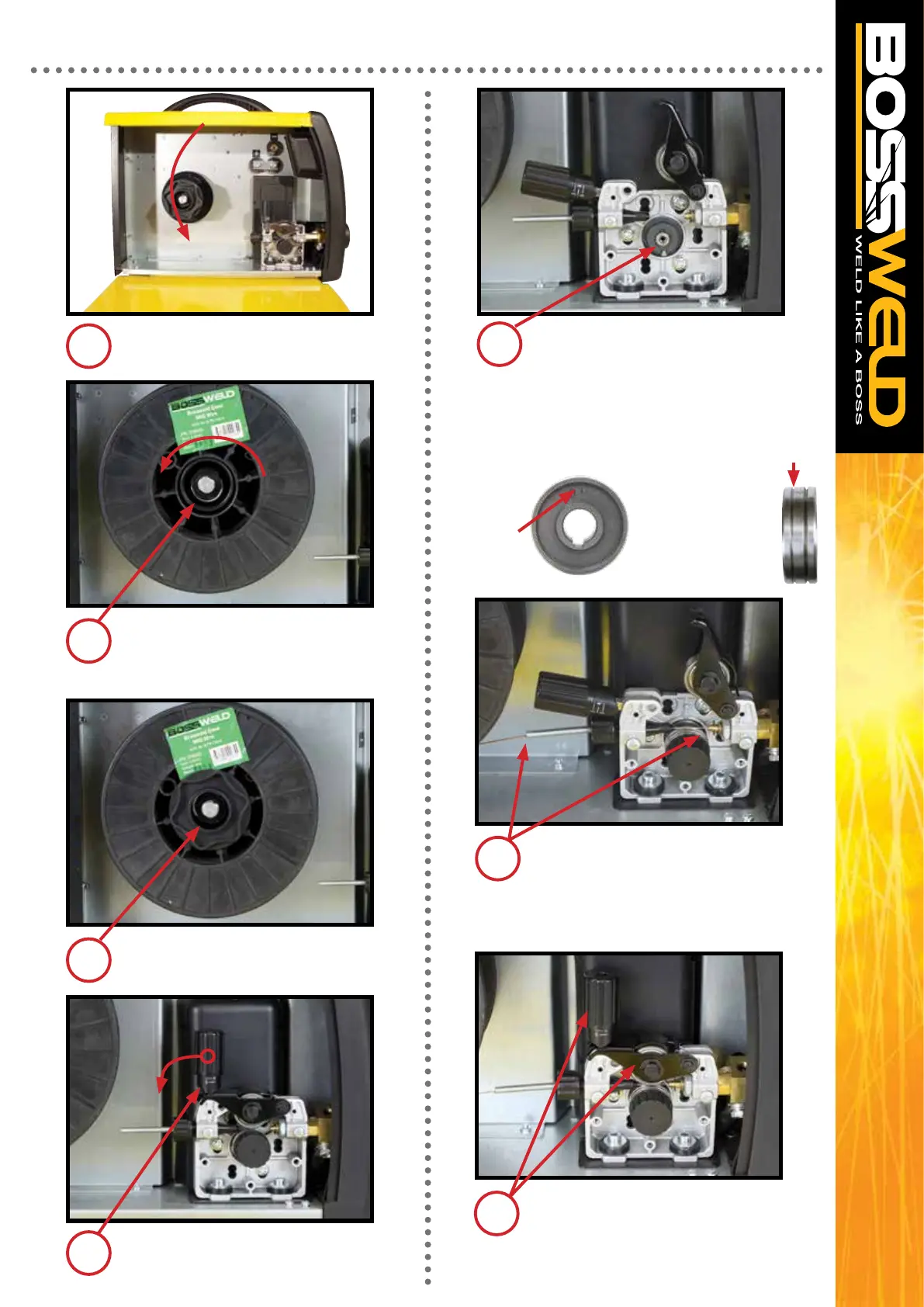

SET UP OF WIRE SPOOL & WIRE FEED UNIT
Open the side door of the machine.
Release the Wire Feed Tensioning
Knob by pulling it to the left.
Take the end of the wire and feed
into the Guide tube until it passes to
the Inlet Tube, and out of the Euro
connection Approx 3-5cm
Remove the Spool Hub Nut and
place spool of wire on Spool Hub.
Note: Wire to roll from under spool
into wire feeder
Remove the Drive Roller Cover. Check
the Drive roller is matched to the wire
size for the job Note: Correct wire side
on roller to face into machine when
tting. Then replace the Drive Roller
Cover.
See Page 16 for drive roller
size and type.
Put down Wire Tensioning Arm so it
locks into position, and turn the Wire
Feed Tensioning Knob to gently
tighten.
Replace Spool Hub Nut and adjust
rmly - without too much pressure.
Note: Pictures may vary from your machine model
Ensure you hold the spool and check
tension to stop wire spool unraveling
1
5
2
3
4
7
6
Roller Groove
V Groove - Mild Steel
U Groove - Aluminium
V-knurled - Gasless Wire
Drive roller
size (mm)
