MACHINE SET UP GASLESS MIG WELDING
Roller Groove
V Groove - Mild Steel
U Groove - Aluminium
V-knurled - Gasless Wire
4. Connect MIG Torch to the
Euro Connection terminal
NOTE: Ensure connector nut
is tighten rmly
6. Connect earth Clamp
to the terminal
8.Select MIG mode

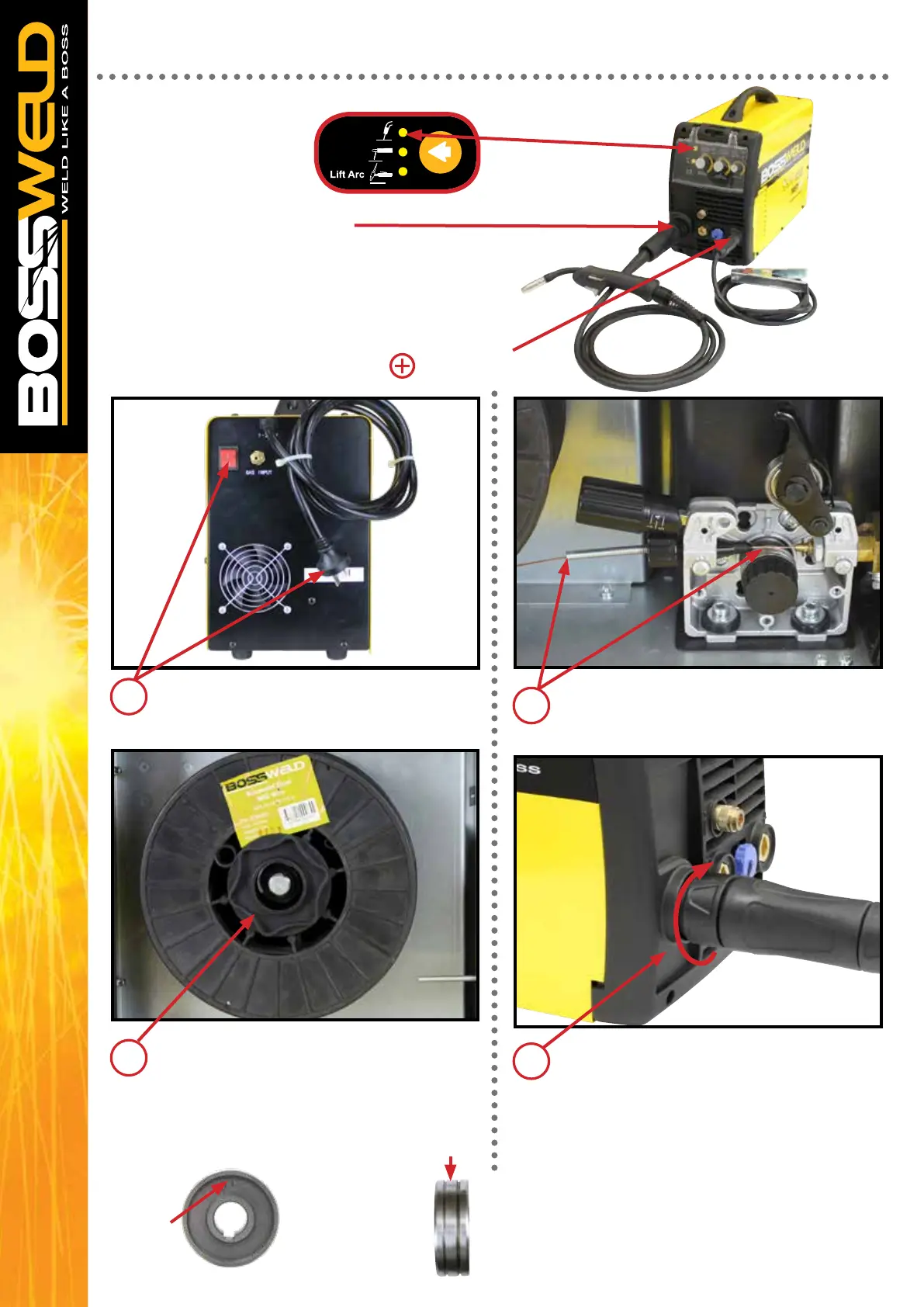

Open wire feed side panel and install Gasless
wire into machine ensuring the drive roller is
matched to the wire size and type. Refer to
“Drive Feed Roller Selection’’ on page 16
Note: Wire to roll from under spool into wire
feeder
Set up the wire feed unit as per section “Set
up Wire Feed Unit”.
3
2
Install Euro connect MIG torch over the
protruding wire, line up the spring connectors
and screw the Euro connector nut up rmly.
4
Plug the machine 10Amp input power lead into
the wall socket, e
nsuring that the power
switch on the machine is in the OFF position.
1
Drive roller
size (mm)
Note: Pictures may vary from your machine model
To Next Page
