CONNECTING TO AN UNBALANCED INPUT
PREAMPLIFIER

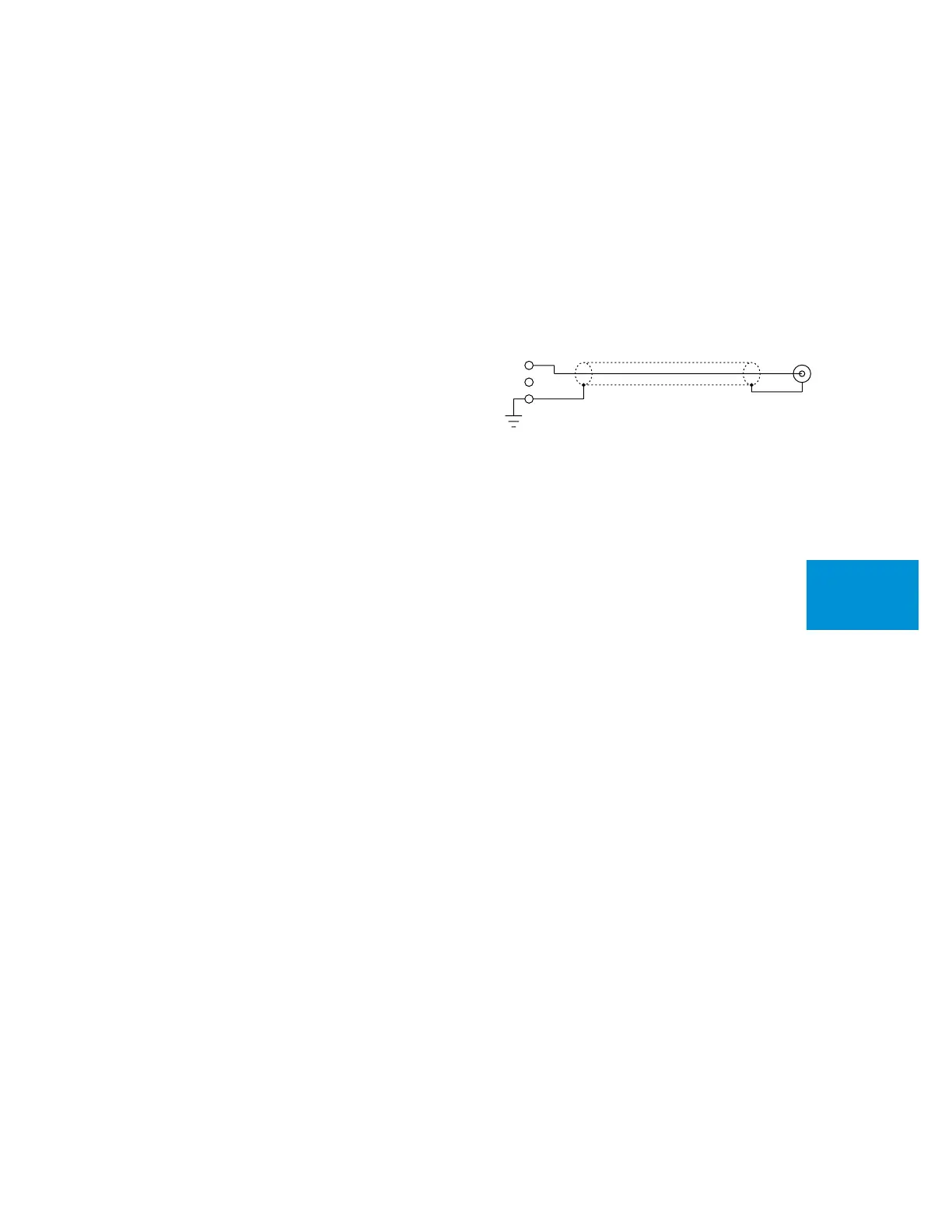

A special cable is required to make this connection. This cable con-
nects pin 1 to the shield and pin 2 to the center pin. It leaves the out-
put pin 3 unconnected.
Connecting the unused output pin (usually pin 3) to ground will
cause excessive ground currents and degrade performance. Use an
ohmmeter or continuity checker to determine how a cable is wired.
