CONNECTING THE POWER
SUPPLY TO THE 2008
Your Boulder 2008 Phono Preamplifier
is supplied with a Boulder 2000 Triple
Power Supply. Each of the three supplies
is independent of the others except for the
front panel LED which confirms correct
power supply operation of all three sup-
plies.

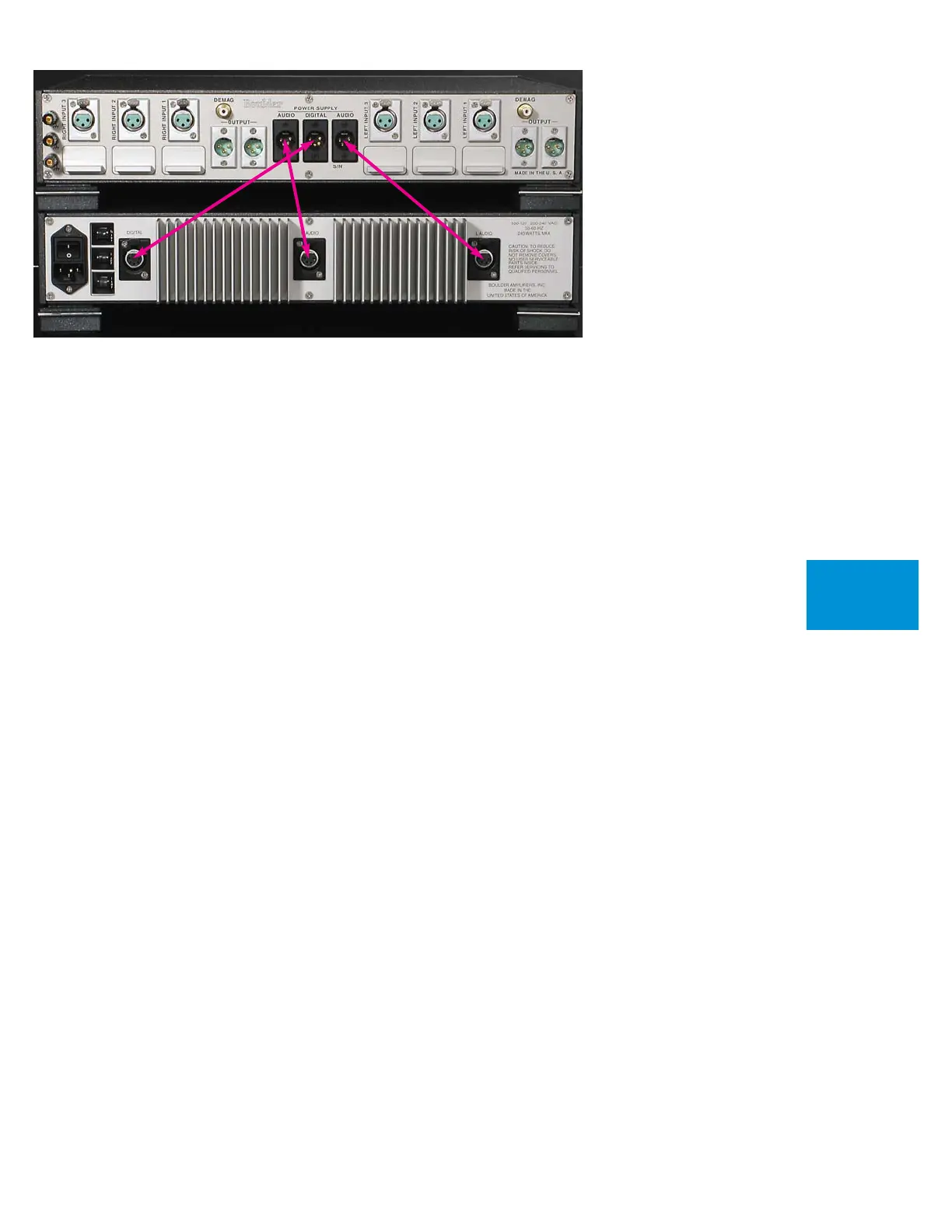

Three cables are provided for connect-
ing the power supply to the main chassis.
Two of these cables have 4 pin connectors
and are used for connecting the left and
right audio supplies (±27V). The third one
has 5 pin connectors and is used for the digital supplies (+5V).
Care must be taken not to confuse these as any attempt to insert the
wrong connector will result in a damaged connector.
WARNING: Connect and disconnect these cables only with the
power supply turned off for at least 1 minute.
GETTING
STARTED
1-2
