7.3 Solvent Cooling System
The detergent solution cooler works over a heat exchanger that is cooled with a cooling agent. The
cooling of the solvent is set to 40 °C (104 °F).
The cooling is controlled over a thermal sensor at the input to the heat exchanger.
During each bath, the program remains stopped before pumping up (the cage does not move) until the
selected detergent solution temperature has been reached. Then the detergent solution temperature is
monitored while the program runs.
707760-22-0

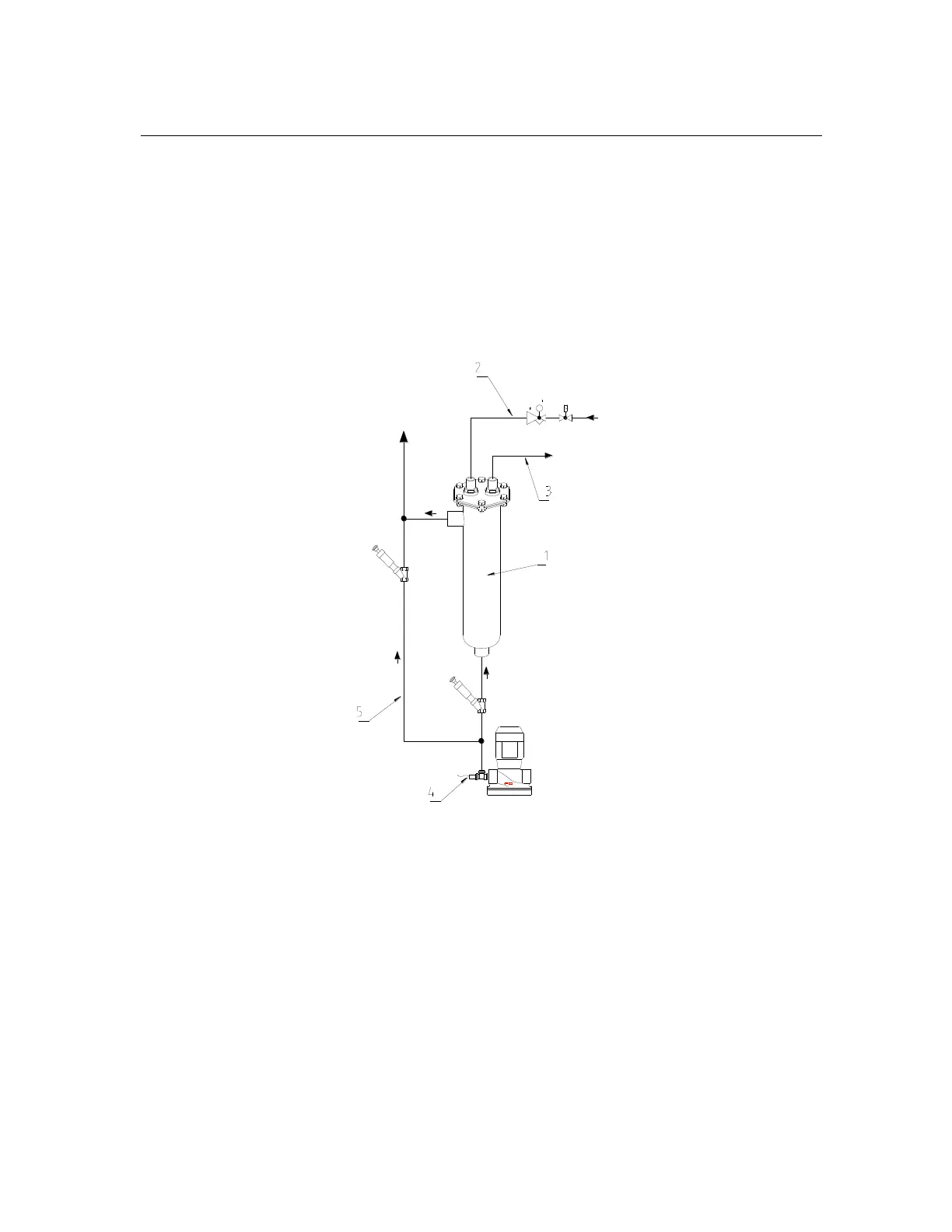

1 Solvent cooling system
2 Cooling agent inlet
3 Cooling agent outlet
4 Thermal sensor
5 Bypass without cooling
