11. Maintenance 11.

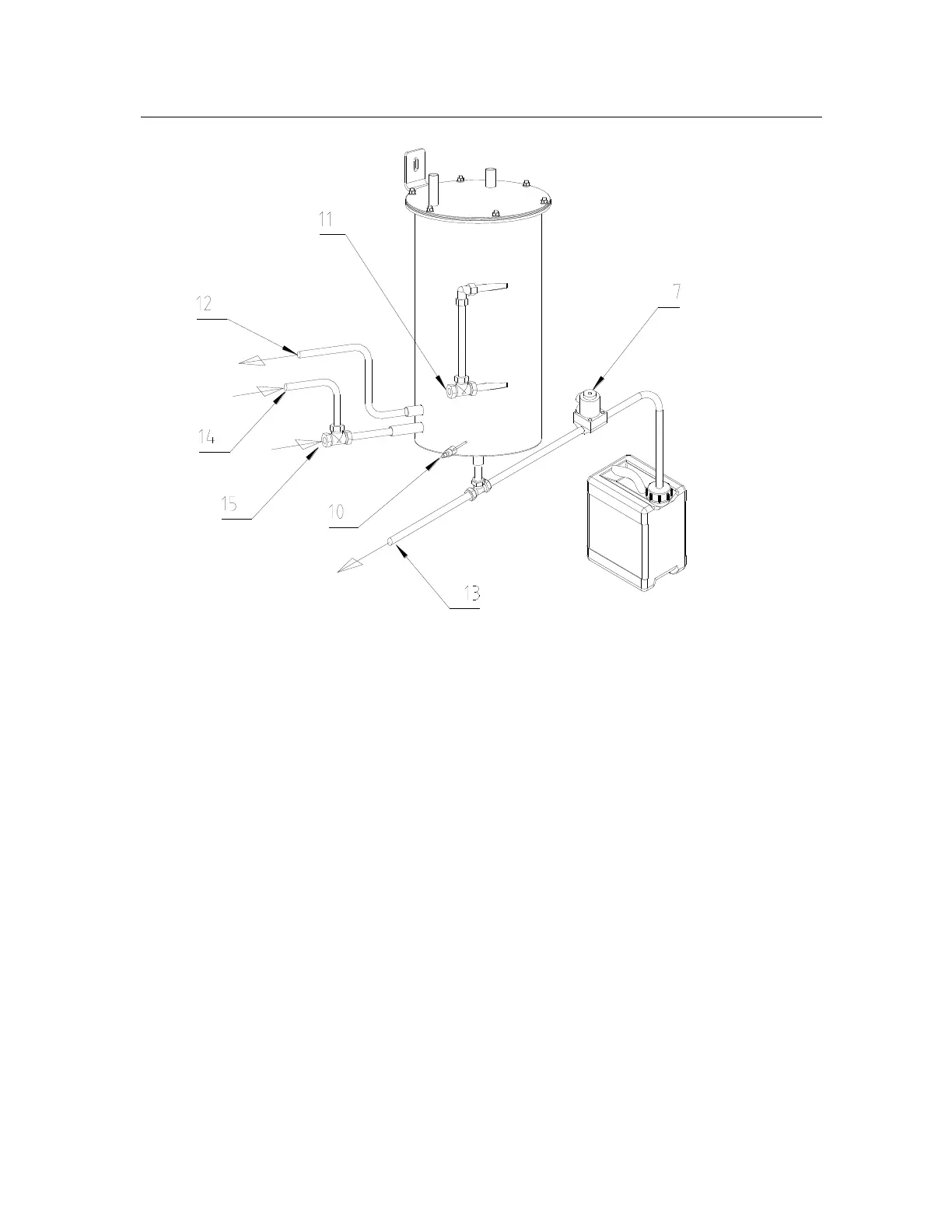

Extraction tank
707763-12-0
7 Draining, water phase
10 Water-sensitive sensor for process water
11 Connection, extraction tank rinsing with pump
12 Suctioning off solvent with pump
13 Emptying with pump
14 Distillation inlet
15 Drying inlet
11.5.4 Flash Tank
The flash tank cleans itself during each distillation cycle, and does not require any separate maintenance.
