BÖWE M30 - Airshaft; Additional Lint Filter

33
M21-M26-M30
7. Functional Units 7.
7.12 Airshaft
7.12

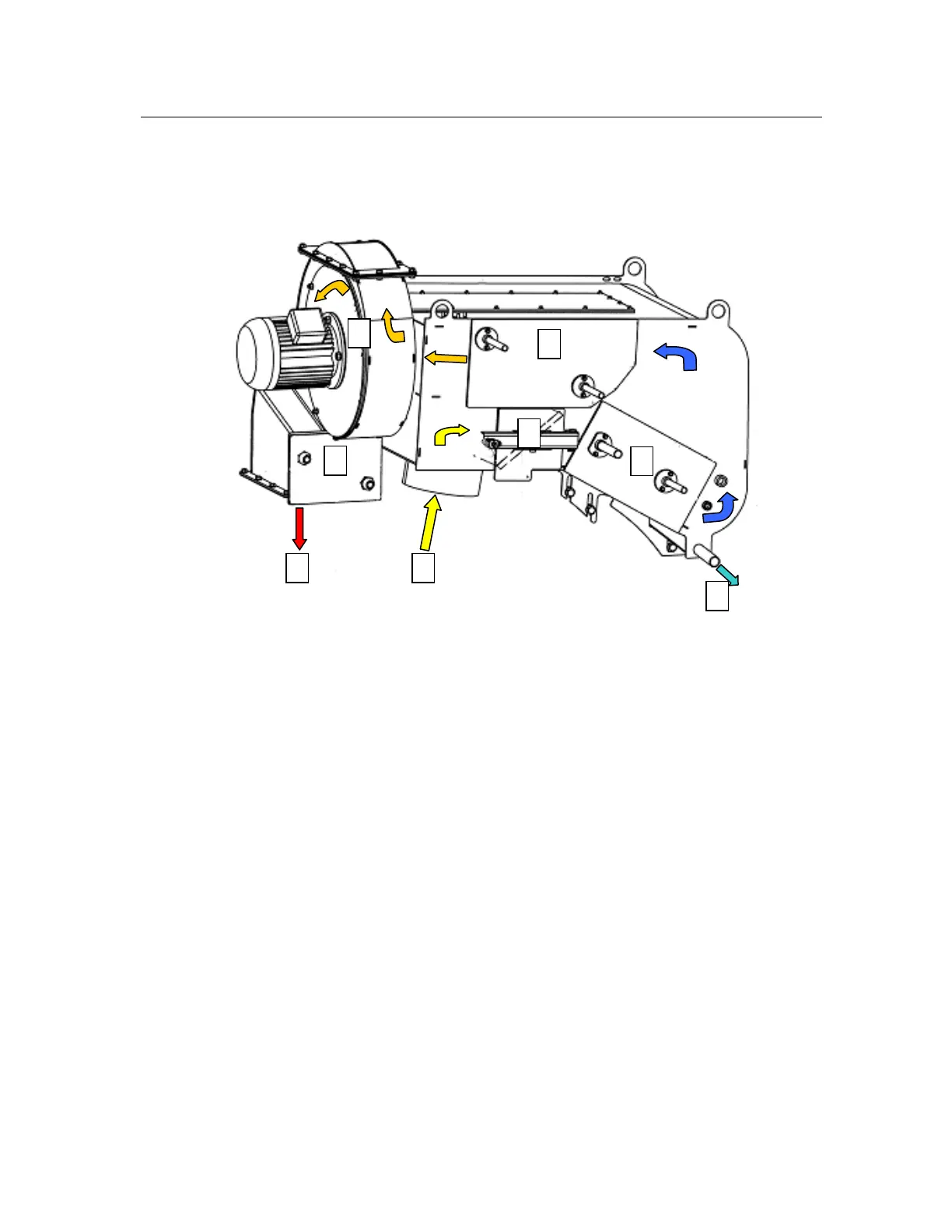

An additional lint filter, refrigeration unit and fan, with housing, are integrated in the airshaft.
Airshaft Rück.jpg
1
Additional lint filter
2
Intense cooling unit
4
Pre-heater
5
Fan with housing
6
Heater battery
7
Solvent drain
8
Air inlet
9
Air outlet
7.12.1 Additional Lint Filter:
For safety reasons, the additional lint filter protects the cooling register from linting up in case the lint
basket has been left in the button trap.
1
4
2
6
5
7
9
8
