BÖWE M30 - Page 81

71
M21-M26-M30
11. Maintenance 11.

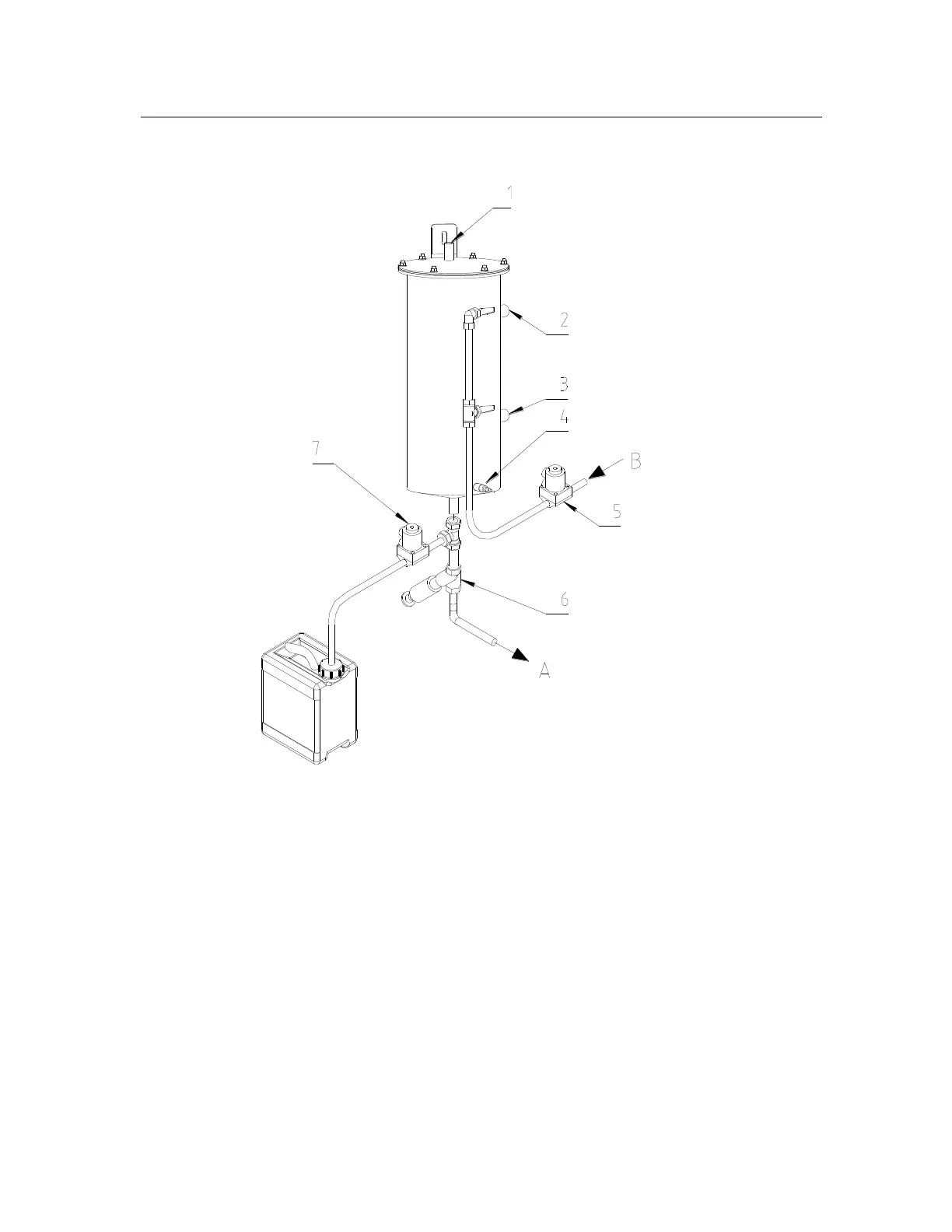

Water separator
707763-11-0
1 Ventilation and aeration atmospheres
2 Solvent discharge to clean tank
3 Distillation inlet
4 Sensor for process water
5 Rinsing, water separator
6 Drain, water separator
7 Draining, water phase
A – Pumping to distillation
B – Pump line from clean tank
