BÖWE P 300 - Machine Connections Specification Slimline

20
7. Connection

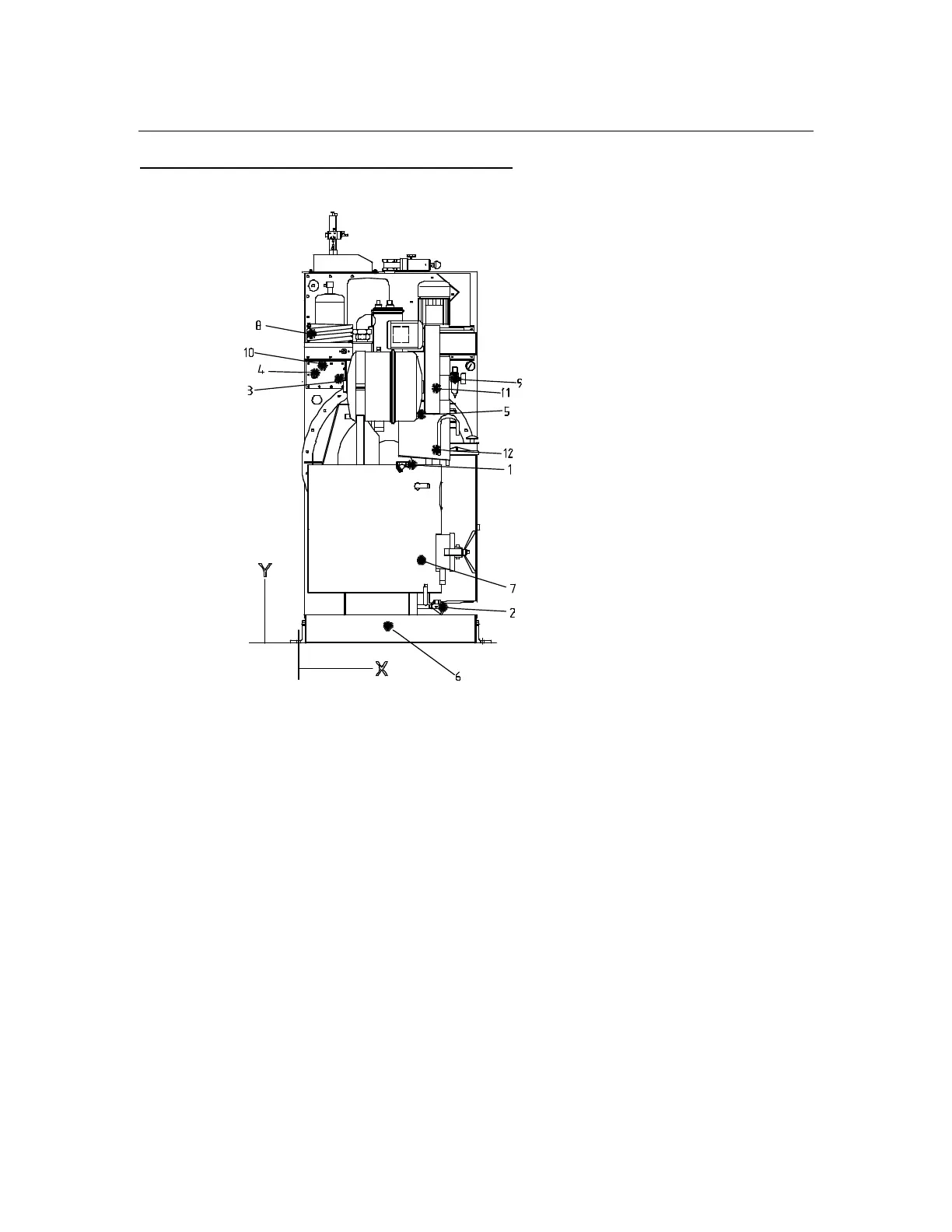

7.2 Machine connections specification
Slimline
703868-16-A
We reserve the right to change measurements!
Pos. Medium NW Zoll - X - - X - - Y - - Y -
mm inch mm inch mm inch
________________________________________________________________________
1 Steam still 15 1/2 610 24 950 37.4
2 Condensate still 15 1/2 775 30.5 190 7.5
3 Condensate heater 15 1/2 220 8.7 1400 55.1
4 Steam heater 15 1/2 90 3.5 1440 56.7
5 Cooling water inlet without tank cooling 15 1/2 660 26 1220 48
6 Cooling water inlet with tank cooling 15 1/2 480 18.9 90 3.5
7 Cooling water inlet still electr.
with water addition 15 1/2 660 26 440 17.3
8 Cooling water outlet 20 3/4 70 2,8 1650 65
9 Compressed air 8 1/4 840 33.1 1400 55.1
10 Electr. connection 130 5.1 1480 58.3
11 Venting water separator 22 - 740 29.1 1360 53.5
12 Rake out system - pump out 20 3/4 740 29.1 1020 40.2
