Bowers & Wilkins 702 S3 User Manual

4
ENGLISH
Speaker Installation
702 S3 / 703 S3 / 704 S3
702 S3, 703 S3 and 704 S3 are intended to be oor mounted
only. For proper stability, always install the provided plinth, then
ensure that the speakers stand rmly on the oor using the spike
or rubber feet supplied.

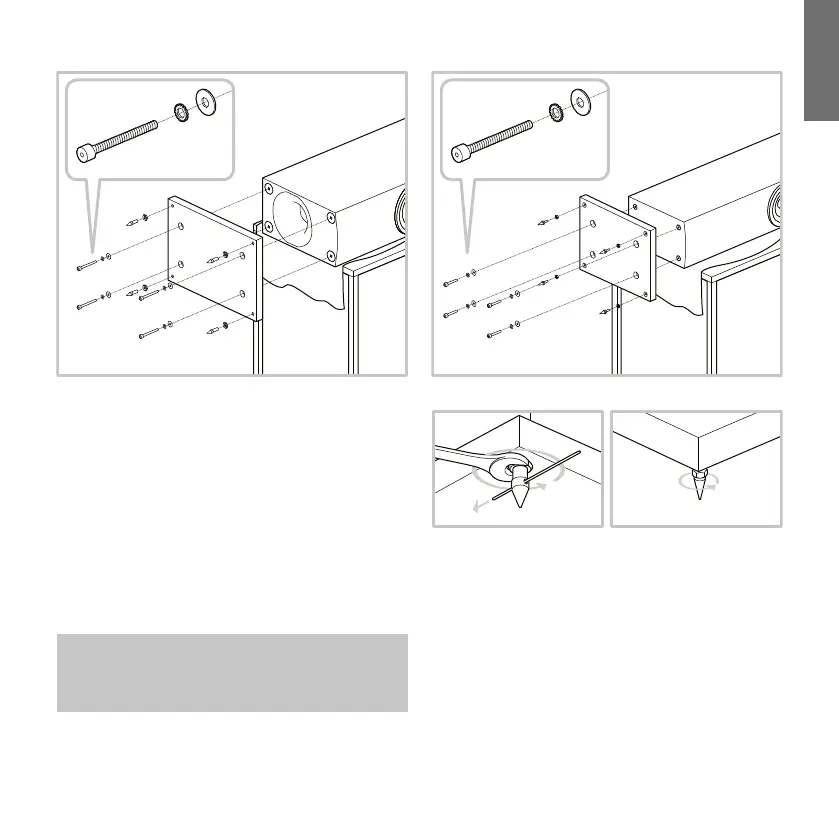

You may attach the plinth during the unpacking process, following
the illustrations above or the diagrams on the top ap of the
carton.
Warning
The plinth MUST always be used, with the rubber or spike feet
inserted into the plinth. DO NOT insert rubber or spike feet
directly into the cabinet.
Note: Rubber feet installation is nearly identical to spike feet
installation. The tommy bar and spanner are only included
and used with the 702 S3 model during spike / rubber feet
installation.
702 S3 703 S3 / 704 S3
2. Positioning
702 S3 703 S3 / 704 S3

Bowers & Wilkins 702 S3 Specifications

General

Type	Floorstanding speaker
Midrange	1x 150mm (6 in) Continuum cone FST midrange
Sensitivity	90dB spl (2.83Vrms, 1m)
Impedance	8Ω (minimum 3.1Ω)
Net Weight	29.5 kg (65 lbs)
Tweeter	1x 25mm (1 in) Decoupled Carbon Dome
Frequency Range	28Hz to 33kHz
Frequency Response	46Hz - 28kHz ±3dB
Recommended Amplifier Power	30W - 300W
Dimensions	200mm (7.9 in) width
Finish	Gloss Black, Satin White
Bass	3x Ø165mm (6.5 in) Aerofoil Profile bass
