Contents
ENGLISH 4
1. Unpacking 4
2. Positioning 5
3. Connections 7
4. Fine Tuning 8
5. Running In 9
6. Aftercare 9
Ensure that the positive terminals on the speaker (marked + and
coloured red) are connected to the positive output terminal on the
amplier and the negative terminals on the speaker (marked – and
coloured black) are connected to the negative output terminal on
the amplier. Incorrect connection can result in poor imaging and
loss of bass.
Ask your dealer for advice when selecting speaker cable.
All connections should be made with the audio equipment
switched off.

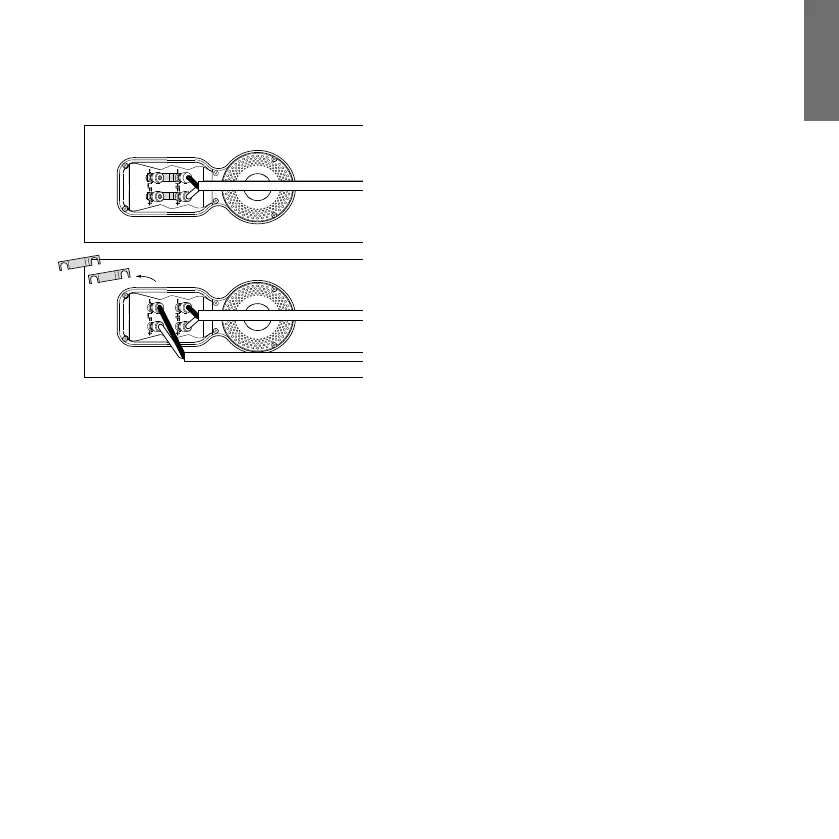

There are 2 linked pairs of terminals on the back of the speaker.
For conventional connection (above left), the terminal links
should remain in place (as delivered) and just one pair of
terminals connected to the amplier. For bi-wire connections
or bi-amplication (above right), the terminal links should be
removed and each pair of terminals connected to the amplier
or ampliers independently. Bi-wiring can improve the resolution
of low-level detail.
3. Connections
