Bowflex 3.1 Bench - Parts Identification; Parts Guide Overview

4

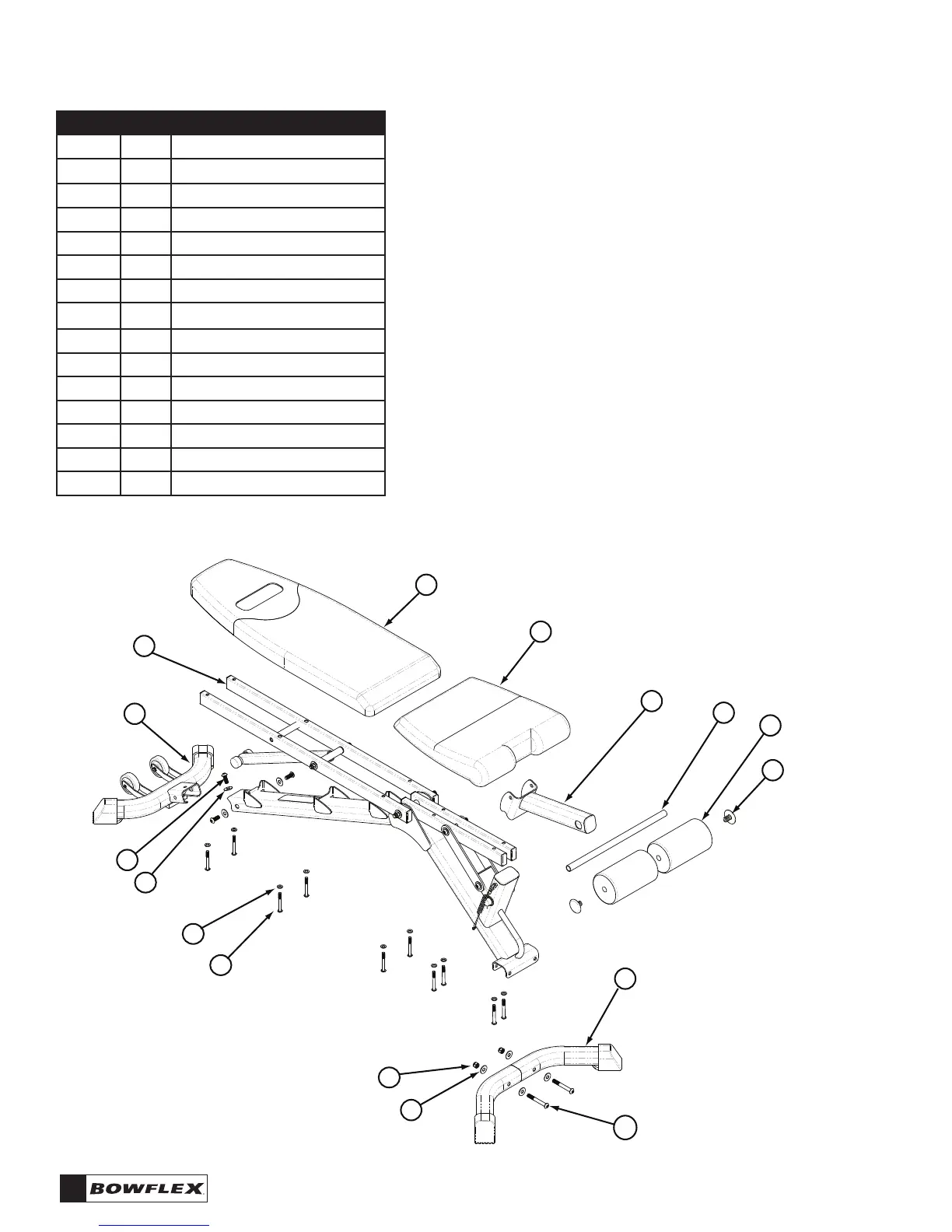

Parts Guide
Item # Qty Description
1 1 Frame Assembly
2 1 Rear Stabilizer
3 1 Front Stabilizer
4 1 Back Pad
5 1 Seat Bottom
6 1 Leg Hold Down Assembly
7 1 Tube, Foam Roller
8 2 Pad, Foam Roller
9 2 End Cap 3/4”
10 10 Allen Bolt 5/16 x 2 1/2”
11 3 Allen Bolt 3/8 x 1”
12 2 Allen Bolt 3/8 x 3”
13 2 Nylock Nut 3/8
14 10 Flat Washer 5/16
15 7 Flat Washer 3/8
