Bowflex Blaze - Page 21

19

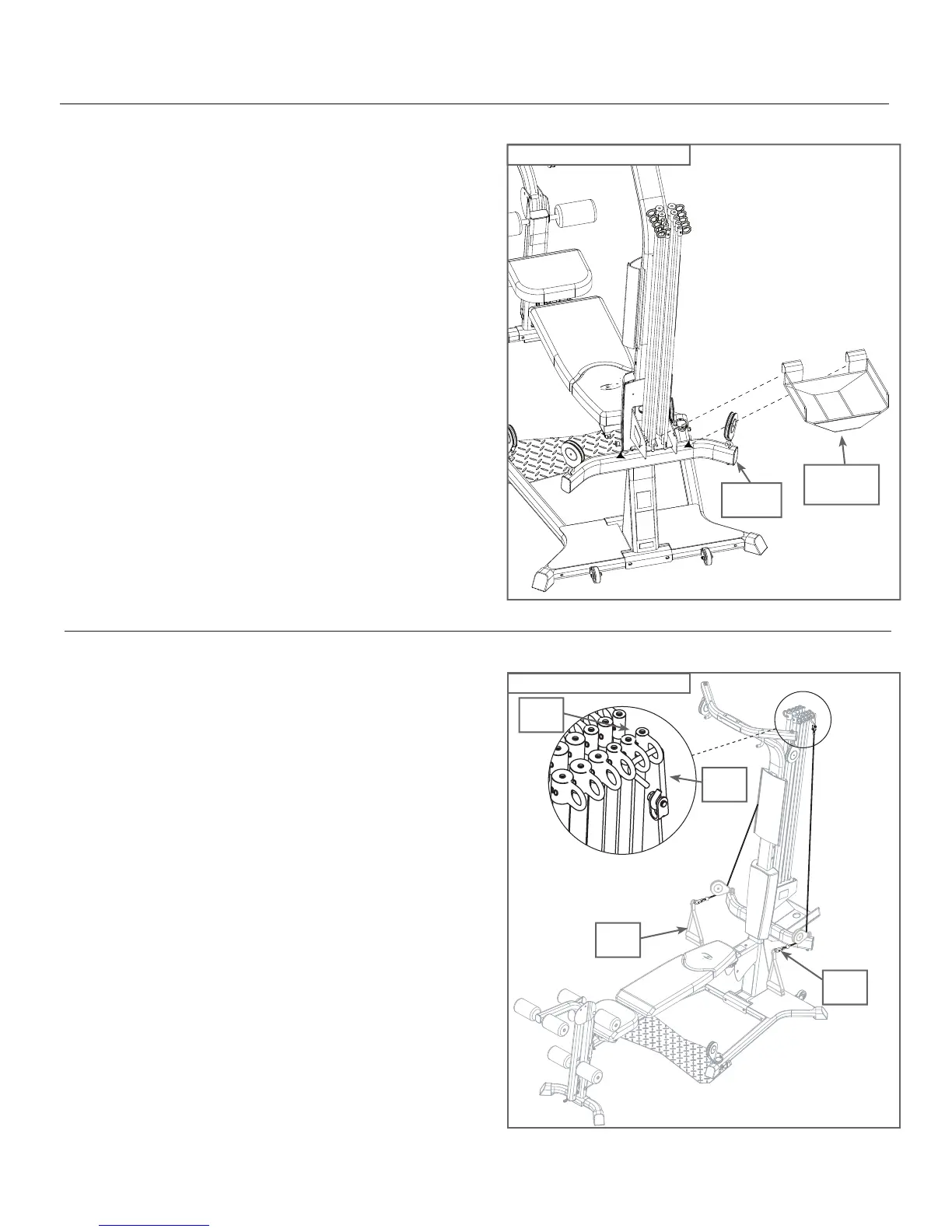

Step 24 - Attach the Accessory Basket
Locate the following items:
• Item #CC - Accessory Basket
Place the hooks on the Accessory Basket over the
the Chest Bar as shown.
Step 25 - Route the Rod Cables
Locate the following items:
• Item #S - (2) Hand Grips
• Item #V - (2) Snap Hooks
• Item #Y - (2) Rod Cables with (2) Snap Hooks (attached)
Unwrap the Cables from both Pulleys on the Chest bar.
Pull one end of the Cable from the Chest Pulley upwards.
Attach the Cable to one Rod Cap by hooking the Rod Hook
through the hole in the Rod Cap.
Then, fasten one Hand Grip to the Snap Hook on the
opposite end of the Cable, as shown in Figure 23
.
Repeat for remaining Chest Pulley Rod Cable.
Assembly Guide
Figure 25 - Rod Cables
Hand
Grip
Snap
Hook
Rod
Hook
Rod
Cap
Figure 24
Accessory
Basket
Chest Bar
