Bowflex Blaze - Hardware Guide; Tools You will Need

4
Item #: G
Qty.:
1
Descr: 3/8" X 2 3/4"
Button Head Screw
Item #:
C
Qty.:
8
Descr: 5/16" X 3/4"
Button Head Screw
Item #: A
Qty.: 4
Descr: #10 X .75”
Phillips Head Screw
Item # N
Qty.:
46
Descr: 3/8" Flat Washer
Item #: B
Qty.:
3
Descr: #10 X 1"
Phillips Head Screw
Item #: L
Qty.:
3
Descr: 1/4" Flat Washer
Item #:
H
Qty.:
8
Descr: 3/8" X 3"
Button Head Screw
Item #:
E
Qty.: 10
Descr: 3/8" X 3/4"
Button Head Screw
Item #:
J
Qty.:
2
Descr: 3/8" X 4 1/4"
Button Head Screw
Item #:
K
Qty.:
4
Descr: 3/8" X 5"
Button Head Screw
Item #: M
Qty.:
8
Descr: 5/16" Flat Washer
Item #: O
Qty.: 18
Descr: 3/8" Nylock Nut
Tools You Will Need
You will need the following tools to complete the assembly of your Bowflex® Blaze™ home gym. If you don’t have these
tools, you can find them at any hardware or department store for a reasonable price.
• 1/2" combination wrench
• 9/16" combination wrench
• Phillips screw driver
• Rubber mallet (optional)
• Utility Knife or Scissors
• (2) Allen Wrenches (included)
Hardware Guide
Item #: F
Qty.:
1
Descr: 3/8" X 2 1/2"
Button Head Screw
Item #: I
Qty.:
2
Descr: 3/8" X 3 1/4"
Button Head Screw

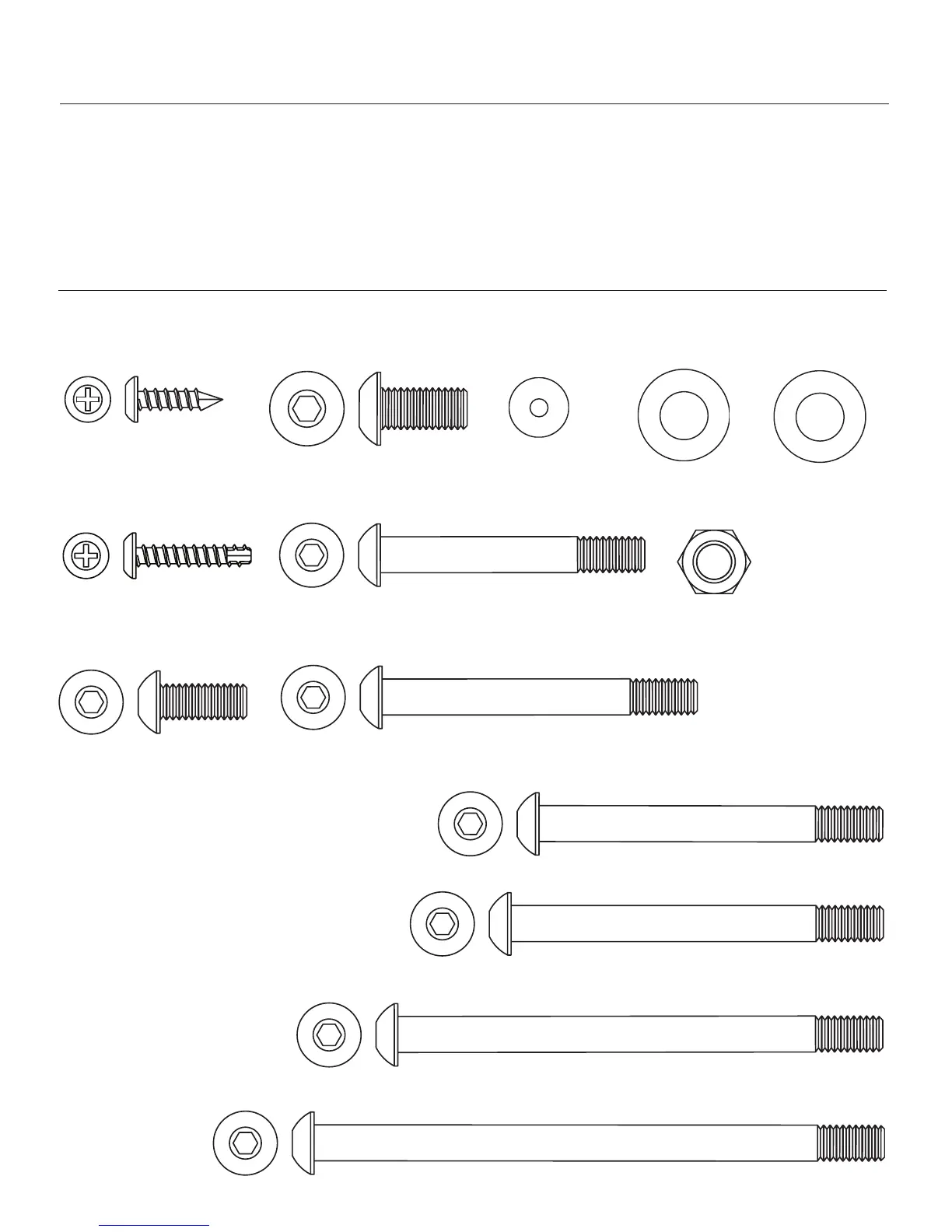

Note: Drawings are actual size
