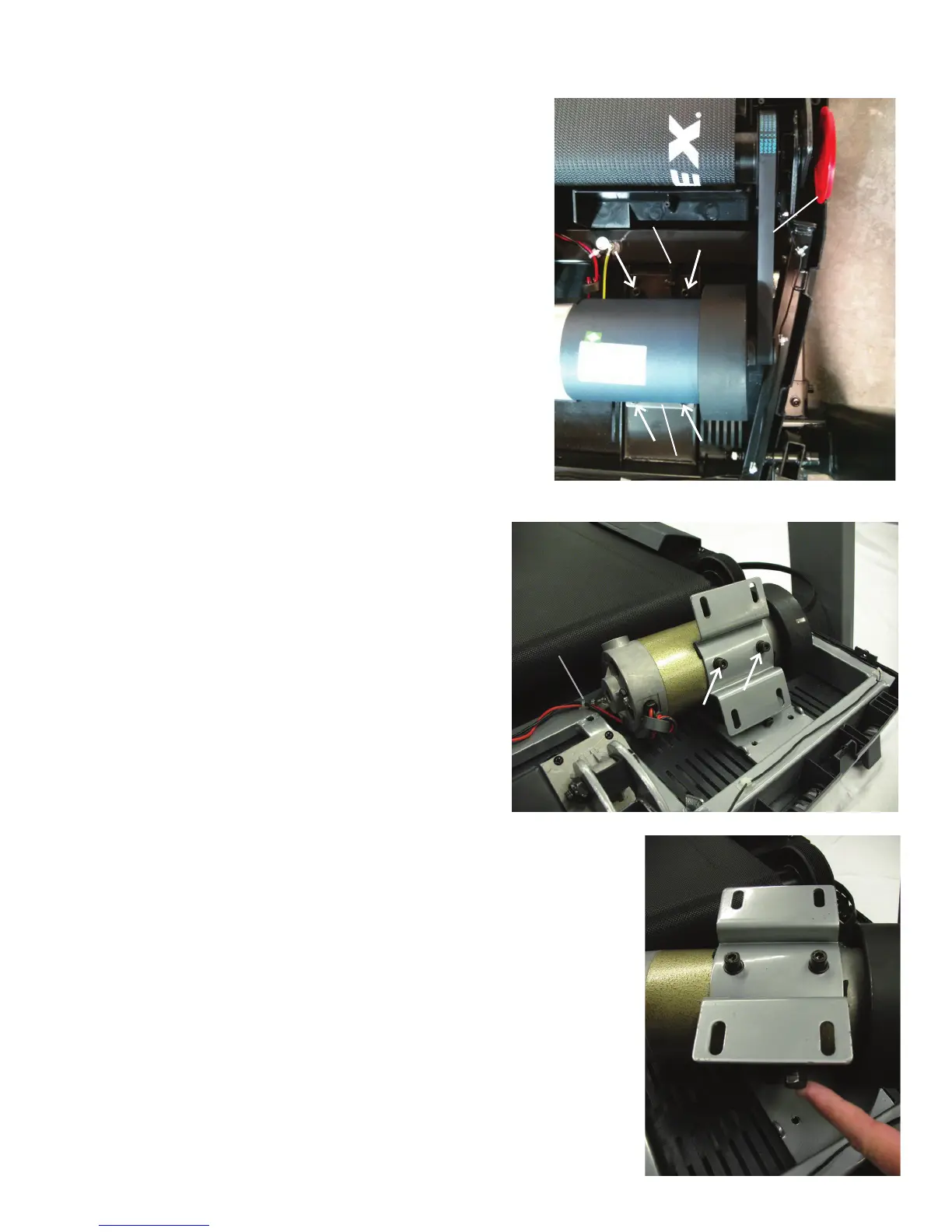

9. Using a #2 Phillips screwdriver, disconnect the Motor Ground Wire from the
Frame.
10.Usinga6mmhexwrench,loosentheindicatedscrews(byarrows)onthe
Motor Mount.
11. Using a 13mm Open Ended Wrench, rotate the Belt Tensioner Screw
enough to loosen the Drive Belt.
Note: To assist with reassembly, be sure to record the number of threads
exposedbeforeloosening.
12.Usinga6mmhexwrench,removetheindicatedscrews(byarrows)from
the Motor Mount. Remove the Drive Belt and rotate the Motor Assembly
exposingtheMotorMount.
13. Cut the 3 Zip-Ties that secure the Motor Cables.
14.Usinga6mmhexwrench,removetheindicatedhardwarefromtheMotor
Mount and remove the old Motor.
15. Attach the Motor Mount to the new Motor. Be sure the Belt Tensioner
Screw is properly oriented toward the rear of the machine when the Motor is
re-installed.
Motor
Drive Belt
Belt Tensioner Screw
Motor Mount
Motor Cables
Zip-Tie
