Bowflex BXT116 - Page 128

128

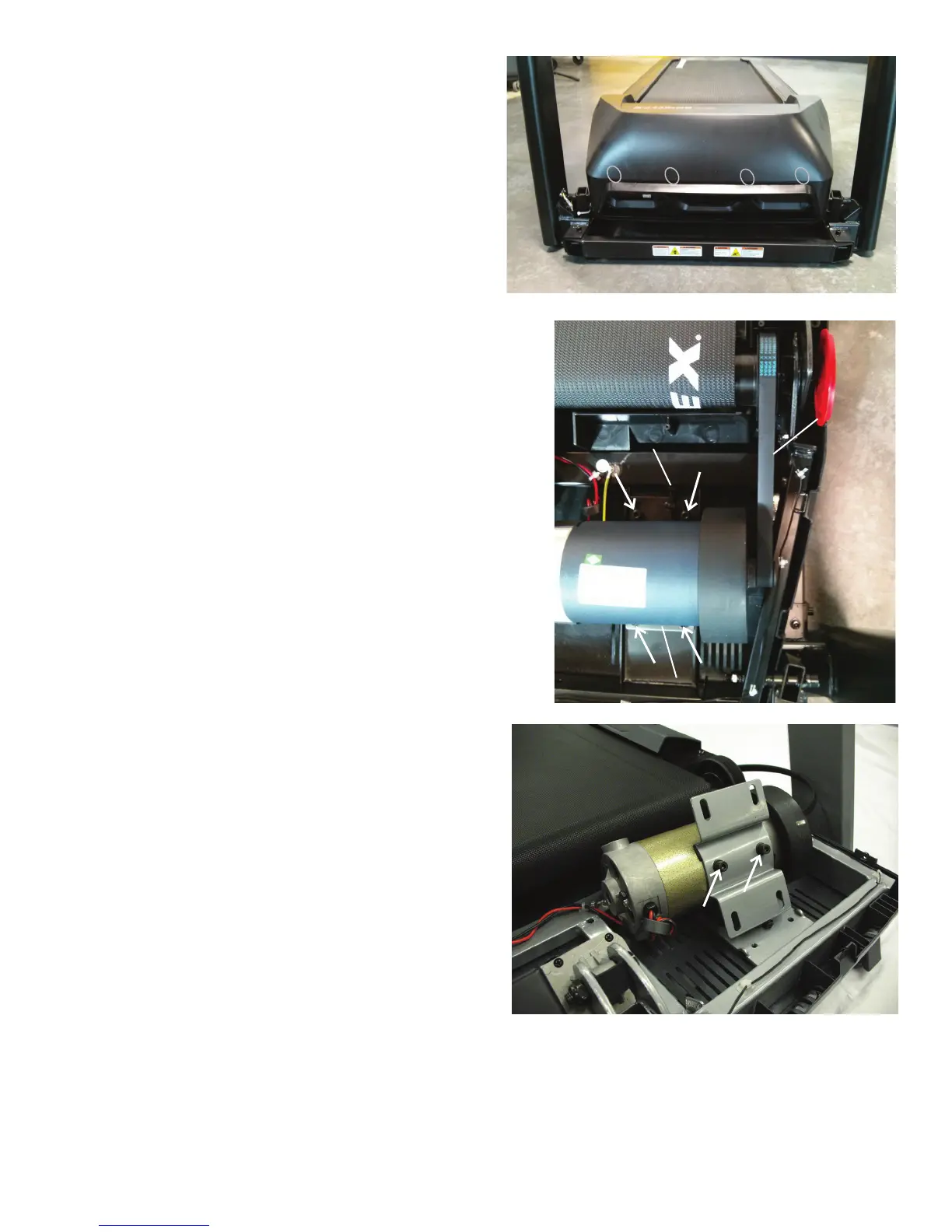

6. Gently release the front snaps (indicated by ovals) that secure the
Motor Cover and pivot it back toward the walking belt until it releases.
Remove from the machine.
7.Usinga6mmhexwrench,loosentheindicatedscrews(byarrows)on
the Motor Mount.
8. Using a 13mm Open Ended Wrench, rotate the Belt Tensioner Screw
enough to loosen the Drive Belt.
Note: To assist with reassembly, be sure to record the number of threads
exposedbeforeloosening.
9.Usinga6mmhexwrench,removetheindicatedscrewsfromtheMotor
Mount.RemovetheDriveBeltandrotatetheMotorAssemblyexposing
the Motor Mount.
10.Usinga6mmhexwrench,removetheindicatedhardwarefromthe
Motor Mount.
Motor
Drive Belt
Belt Tensioner Screw
Motor Mount
