Lift Shock
!

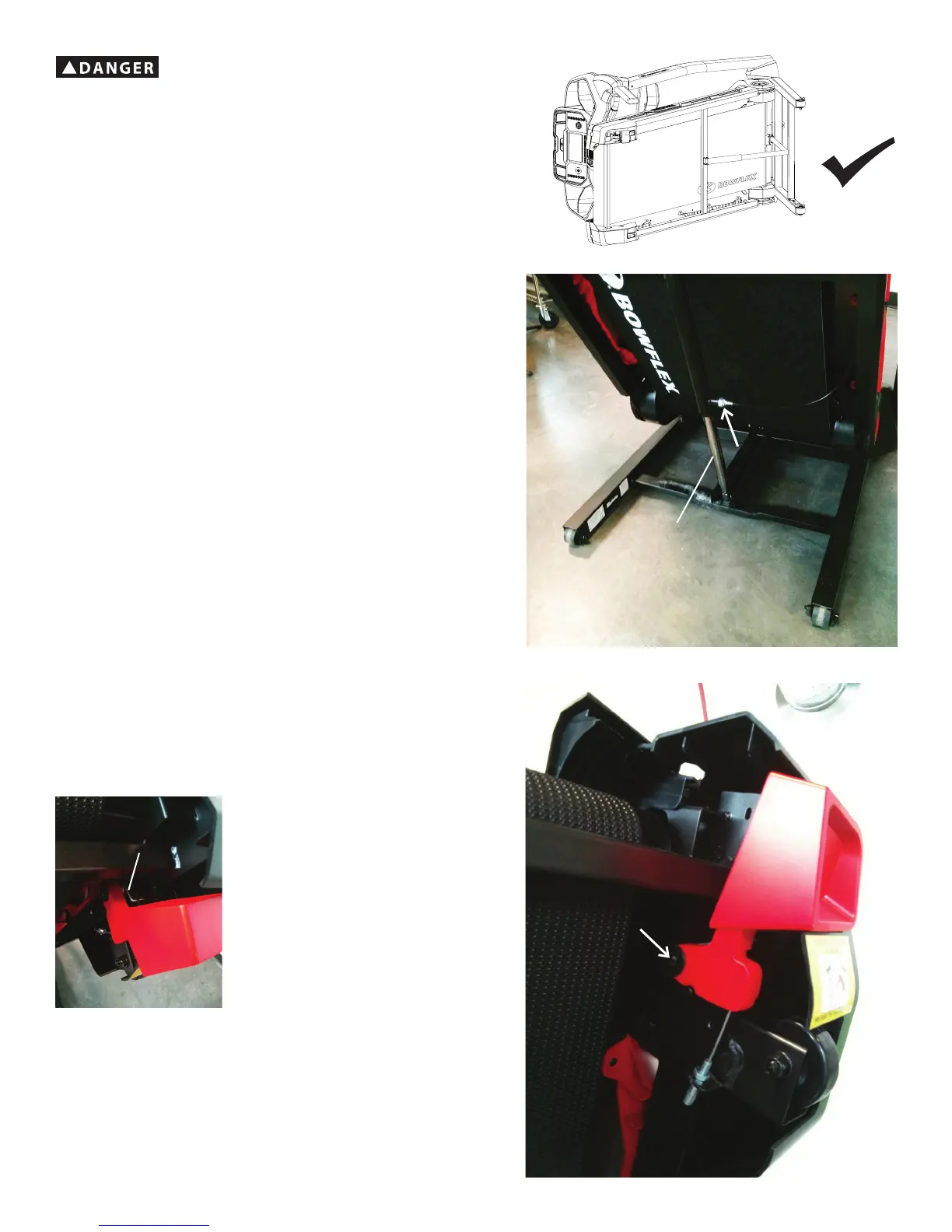

The following images show the machine upright,
and not fully resting on its side. The machine must
be on its side to safely complete the following
steps.
10. Using a 10mm wrench, loosen the locking nut for the Release Cable
(indicated by arrow).
11. Using a 14mm wrench, disconnect the securing nut and remove the
Release Cable Assembly from the Lift Shock.
12. Using a #2 Phillips screwdriver, remove the indicated screw and the
Deck Release Handle Assembly.
13. Route the new cable through the frame, and attach the new Deck
Release Handle Assembly with a #2 Phillips screwdriver.
Spring
Note: Make sure the spring that connects to the Deck Release Handle is
properly oriented during re-assembly.
