Bowflex BXT216 - Parts

Assembly / Owner’s Manual
9
Item Qty Description Item Qty Description
1 1 Console Assembly 11 1 Base Shroud, Right
2 1 Upper Junction Cover, Left 12 1 Base Assembly
3 1 Handlebar Assembly, Incline 13 1 Upright, Left
4 1 Lower Junction Cover, Left 14 1 Base Shroud, Left
5 1 Handlebar Assembly, Speed 15 1 Power Cord
6 1 Lower Junction Cover, Right 16 1 Safety Key
7 1 Upper Junction Cover, Right 17 1 Document Kit / Hardware Card
8 1 Tray 18 1 Heart Rate Strap
9 1 Crossbar 19 1 Media Cable
10 1 Upright, Right
DO NOT CUT the Shipping Strap ( * ) on the Base Assembly until instructed.
When moving the Base Assembly, do not touch the Walking Deck Release Button. Pressing the Walking Deck
Release Button releases the locking mechanism on the hydraulic lift.

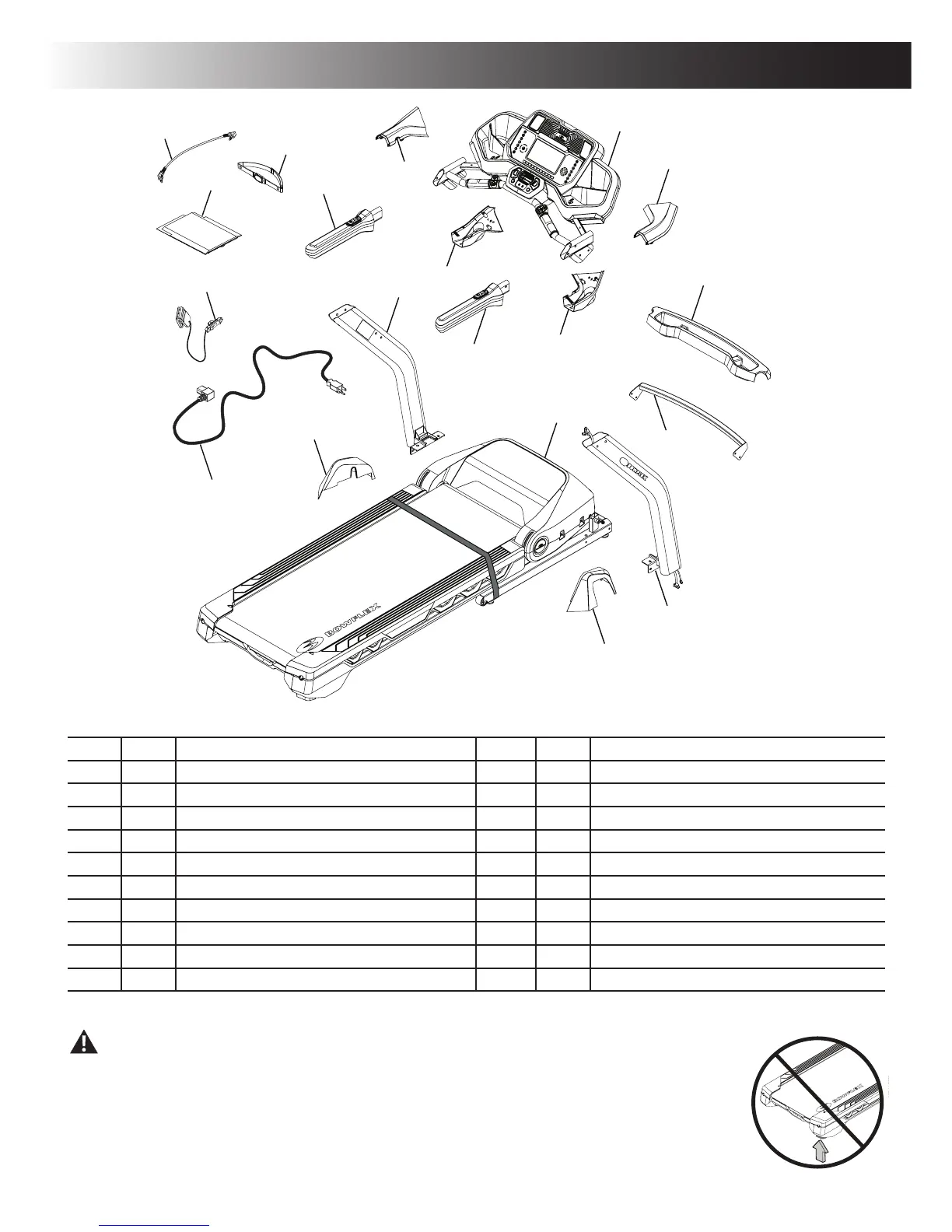

Parts
1
16
7
4
2
3
6
8
12
9
11
10
15
14
13
5
17
18
19
*
