108

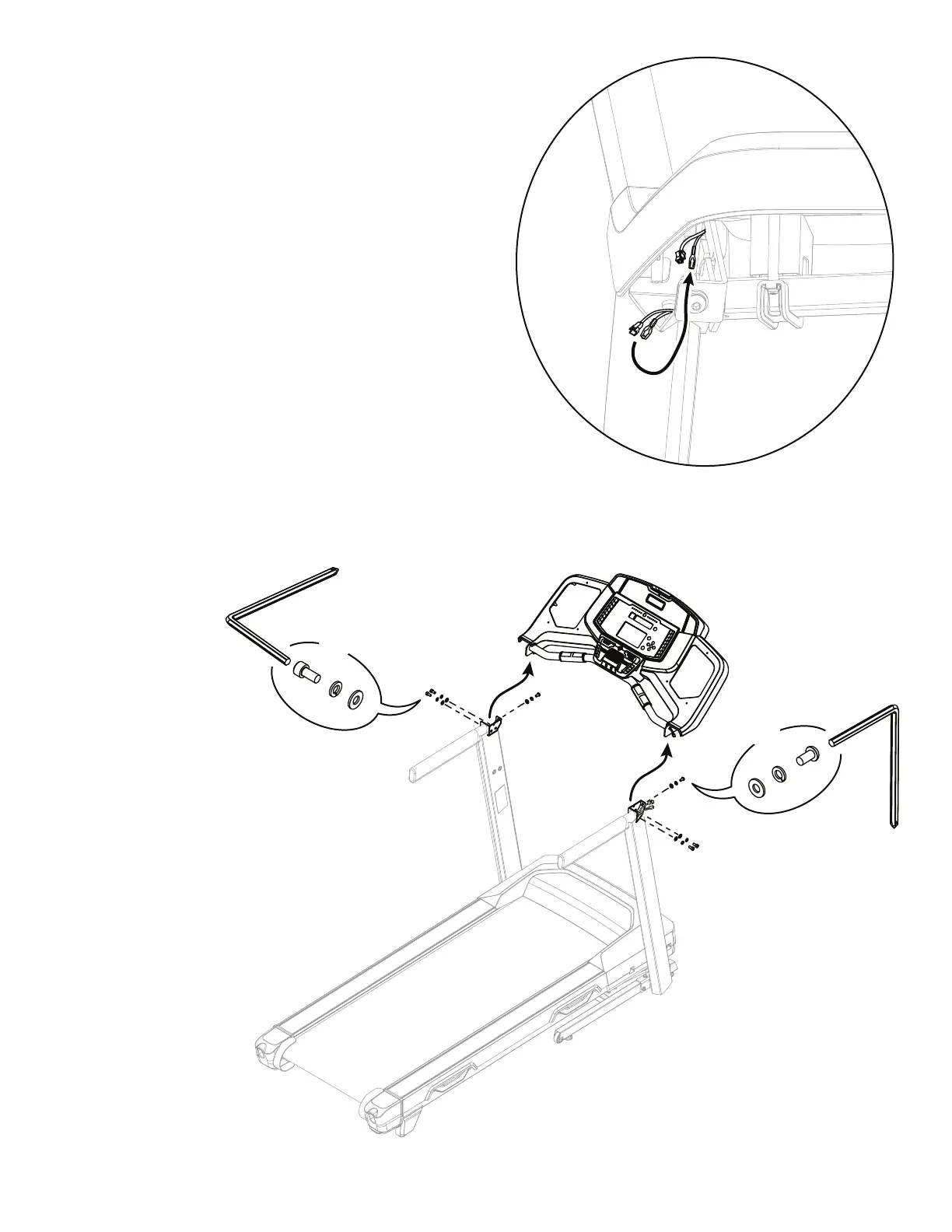

5. From the front of the machine, locate the Input/Output (I/O) Cable Con-
nectors from the Right Upright to the Console Assembly. Disconnect them.
Do not allow the I/O Cable to fall into the Right Upright. Secure it with a
Zip-Tie, rubber band or piece of wire.
Note: Do not pinch or cut the Cables.
6. Using a 6mm hex wrench, remove the indicated hardware from the
Uprights.
6mm
X4
X2
6mm
To Next Page
