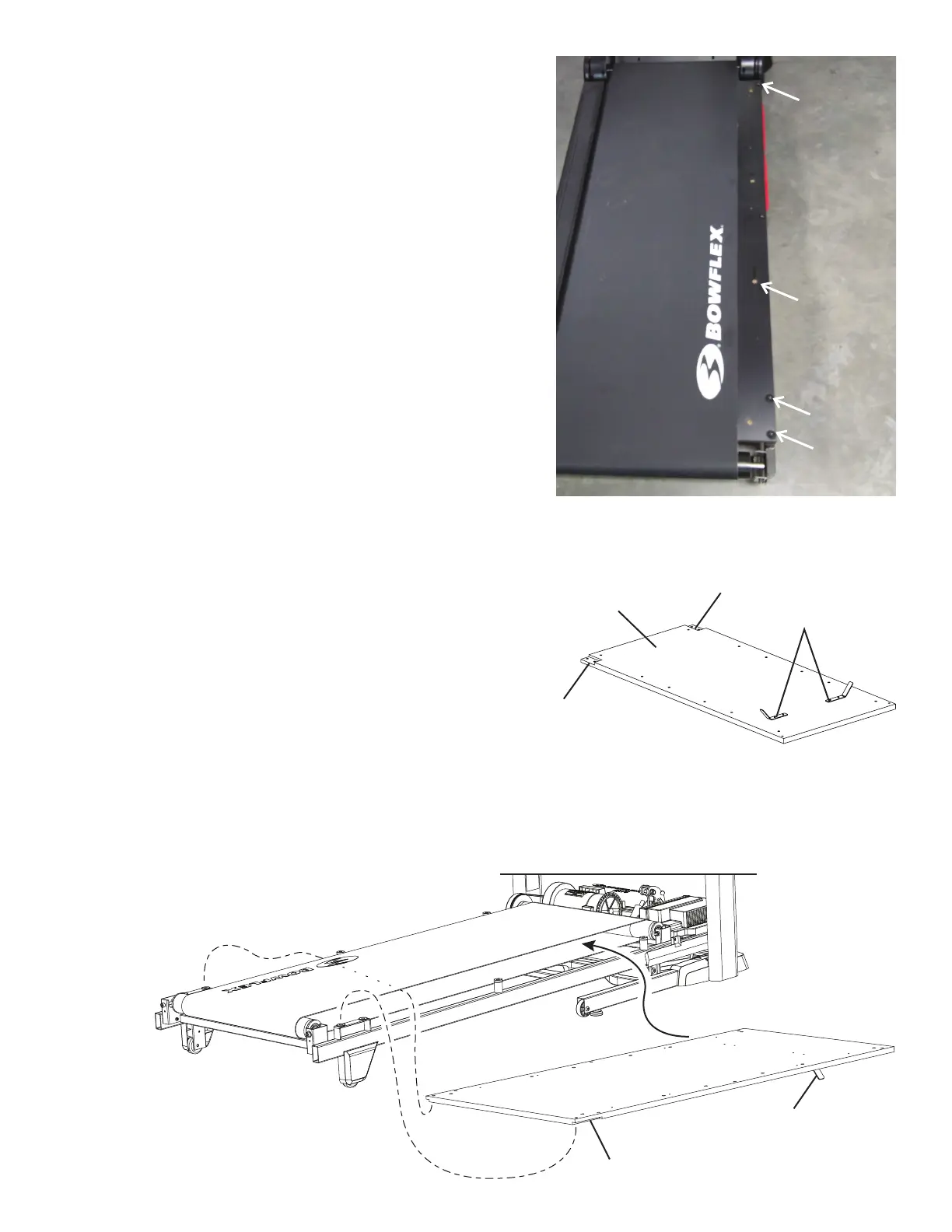

19. Using a 6mm hex wrench, remove the 4 indicated screws from each
side of the Walking Deck.
20. Slide the old Walking Deck Assembly out of the Walking Belt, and ip
over so the Walking Belt Guides are exposed.
21. Using a #2 Phillips screwdriver, remove the Walking Belt Guides and
attach them to the new Walking Deck as shown.
Note: The Walking Belt Guides must be attached to the new Walking
Deck on the side with the Securing Tabs.
22. Turn over the new Walking Deck Assembly, and slide it between the
Walking Belt with the Walking Belt Guides down and to the front of the
machine.
New Walking Deck
Walking Belt Guides
Securing Tab
Securing Tab
Walking Belt Guide
Securing Tab
