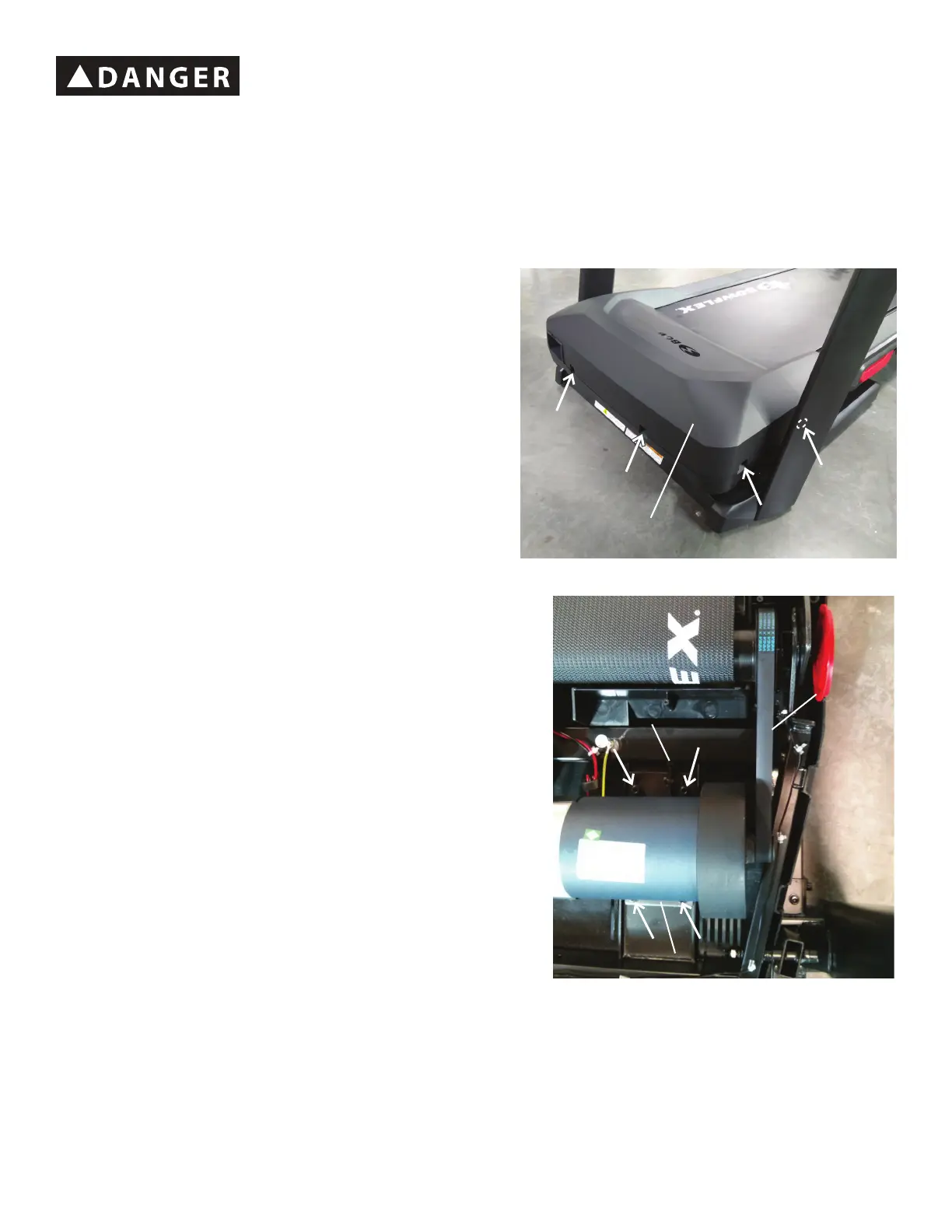

1. Unplug the power cord from the machine and wait 5 minutes. Place the
power cord in a secure location.
2. Using a #2 Phillips screwdriver remove the 4 indicated screws, and two
additional screws on the far side, from the Motor Cover and remove it.
3. Using a 6mm hex wrench, loosen the indicated screws (by arrows) on
the Motor Mount.
4. Using a 13mm Open Ended Wrench, rotate the Belt Tensioner Screw
enough to loosen the Drive Belt.
Note: To assist with reassembly, be sure to record the number of threads
exposed before loosening.
5. Using a 6mm hex wrench, remove the indicated screws from the Motor
Mount. Remove the Drive Belt and rotate the Motor Assembly exposing
the Motor Mount.
!
To reduce the risk of electrical shock or unsupervised usage of the equipment, always unplug the power
cord from the wall outlet and wait 5 minutes before cleaning, maintaining or repairing this machine. Place
the power cord in a secure location.
Motor
Drive Belt
Belt Tensioner Screw
Motor Mount
Motor Cover
