93
Motor Cables
Zip-Tie

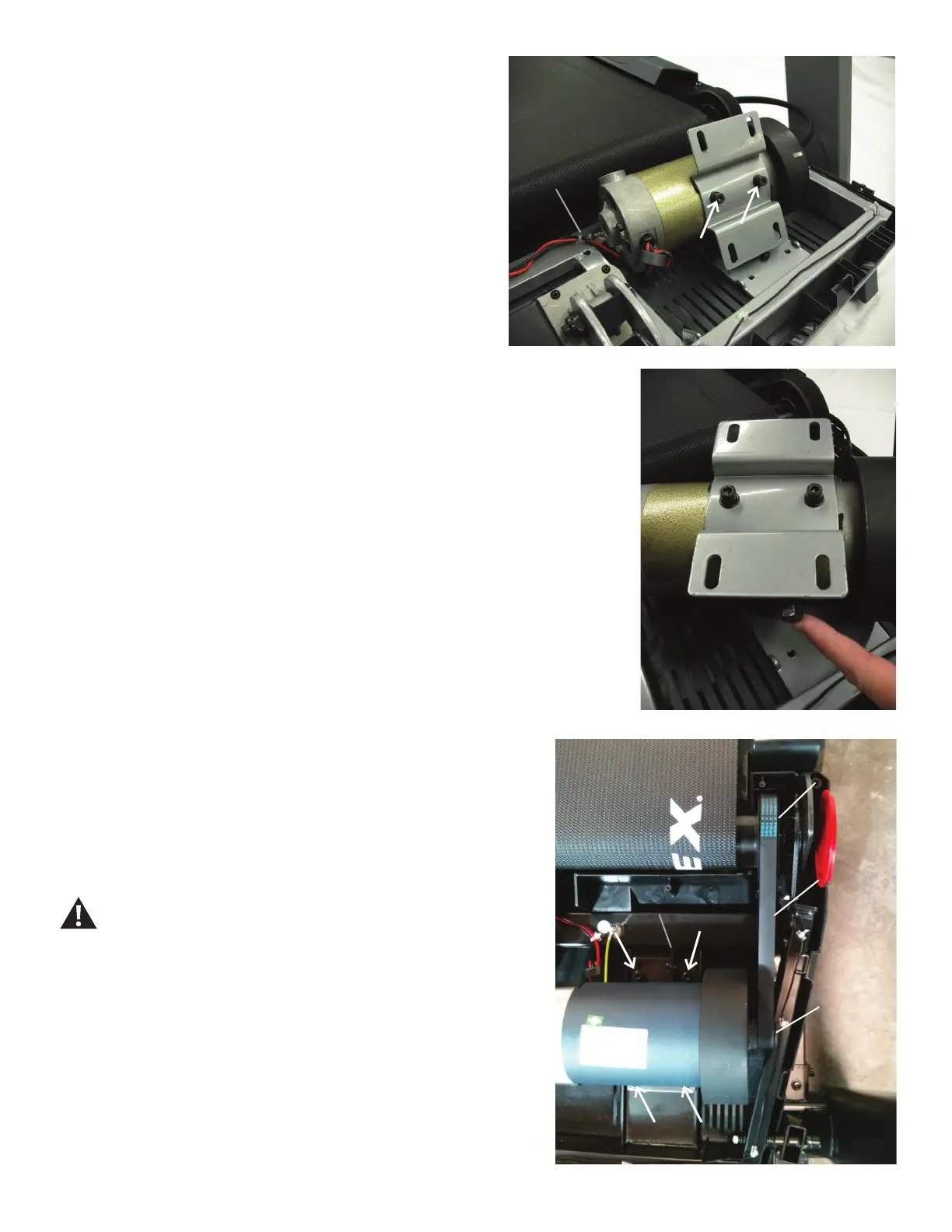

6. Using a 6mm hex wrench, remove the indicated hardware from the Motor
Mount.
7. Attach the new Motor Mount to the Motor. Be sure the Belt Tensioner
Screw is properly oriented toward the rear of the machine when the Motor is
re-installed.
8. Lightly attach the Motor Assembly to the Frame. Be sure to only nger
tighten the hardware.
9. Loop the Drive Belt onto the Motor Pulley. With the Drive Belt looped onto
the Motor, carefully roll the Drive Belt onto the Drive Pulley in a clockwise
motion. Be sure the Belt does not come off of the Motor Pulley.
Keep ngers out of any pinch opportunities when turning the
Pulleys.
10. Roll the Drive Pulley clockwise until the Drive Belt is fully installed.
Continue to roll the Belt forward while adding side pressure with ngers to
align as necessary.
11. With the Motor Assembly loosely attached to the Frame, turn the Belt
Tensioner Screw to the previous level. This will tighten the Drive Belt to the
previous tension level.
Motor
Drive Belt
Motor Pulley
Drive Pulley
Belt Tensioner Screw
