Bowflex Elite Plus - Step 10 - Attach the Leg Extension Pivot Tube

A-9
Step 10 - Attach the Leg Extension Pivot Tube
Locate the following items:
• Item #13 - Leg Extension Pivot Tube
• F
rom Step 9 - Main Assembly
• Item #30 - Lock Out Pin
• Item #G - (1) 3/8" X 2 3/4" Button Head Screw
• Item #N - (2) 3/8" Washers
• Item #O - (1) 3/8" Nylock Nut
• Item #Q - (1) Bolt Cover
Undo the twist ties from the Pivot Bushings. Align the holes located
on the “curve” of the Leg Extension Pivot Tube (Item #13) with the
holes on the bracket of the Rear Leg, as shown in Figure 10a.
Place (1) 3/8" Washer (Item #N) over the end of (1) 3/8" X
2 3/4" Button Head Screw (Item #G). Thread the screw
through the aligned holes and bushings and secure by
placing (1) 3/8" Washer and (1) 3/8" Nylock Nut (Item #O)
over the end of the screw, as shown in Figure 10a.
Do not over-tighten hardware from Step 10.
Place (1) Bolt Cover (Item #Q) over the Nylock Nut installed
during Step 10.
Note: When storing the Rail Assembly, insert the
Lock Out Pin (Item #30) through the holes in the
Pivot Tube to temporarily hold the Leg Extension in
place while folding the Rail up (see Figure 10b).

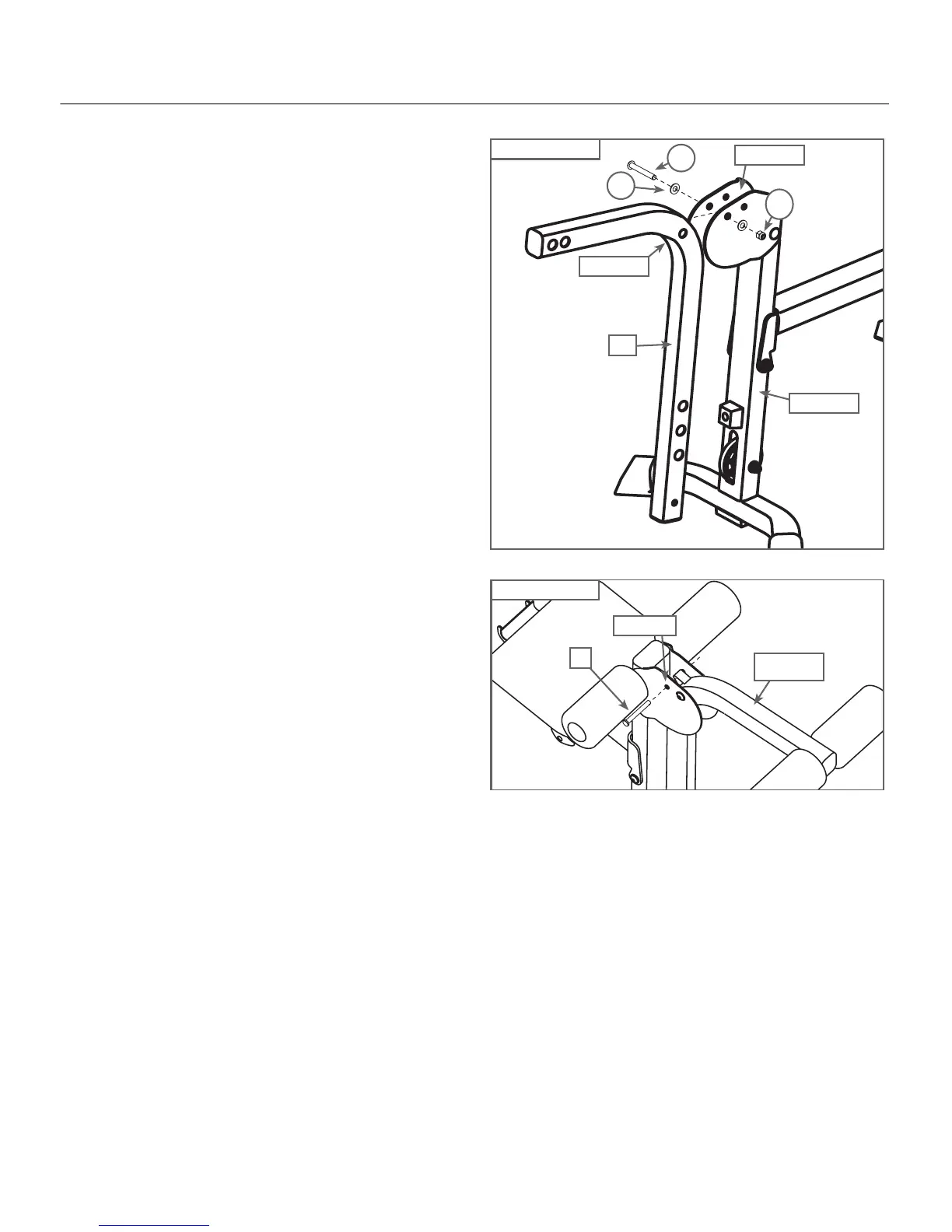

Figure 10a
13
N
O
G
Bracket
Rear Leg
“Curve”
Figure 10b
Holes
Leg
Extension
30
Assembly Guide
