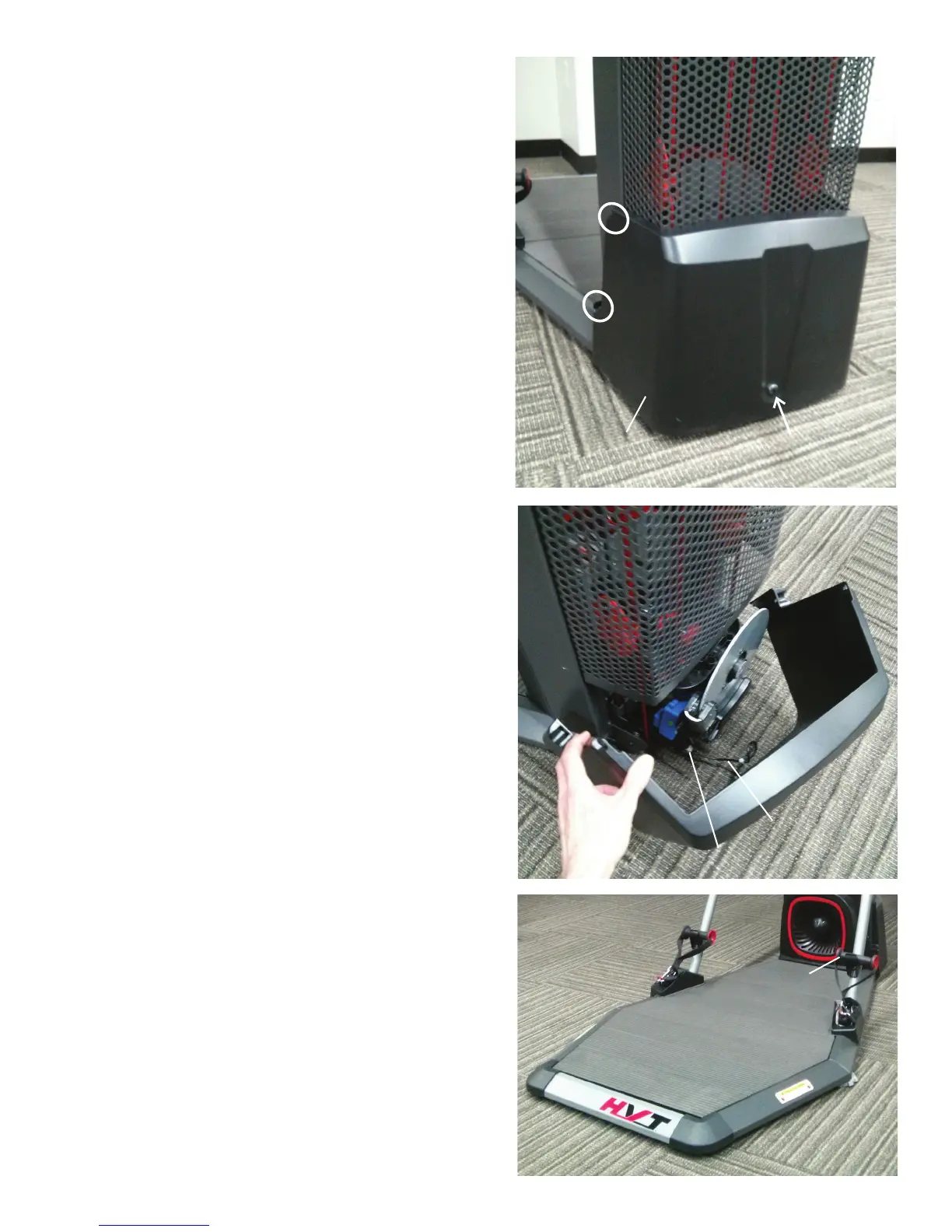

1. Unplug the AC Adapter from the wall outlet and machine.
2. Using a #2 Phillips screwdriver, remove the four screws that secure the
Lower Rear Shroud- two on the right side (indicated by ovals) and two on
the left side (not shown).
3. Slightly remove the Lower Rear Shroud exposing the Power Cable.
Note: The Power Cable is attached to the inside of the Lower Rear
Shroud. Be sure not to crimp the cable by placing the Lower Rear Shroud
close to the assembly.
4. Disconnect the Power Cable at the connector.
5. Safely remove the Right Lower Hand Grip and Snap Hook from the
machine.
Power InletLower Rear Shroud
Power Cable
Connector
Right Lower
Hand Grip
To Next Page
