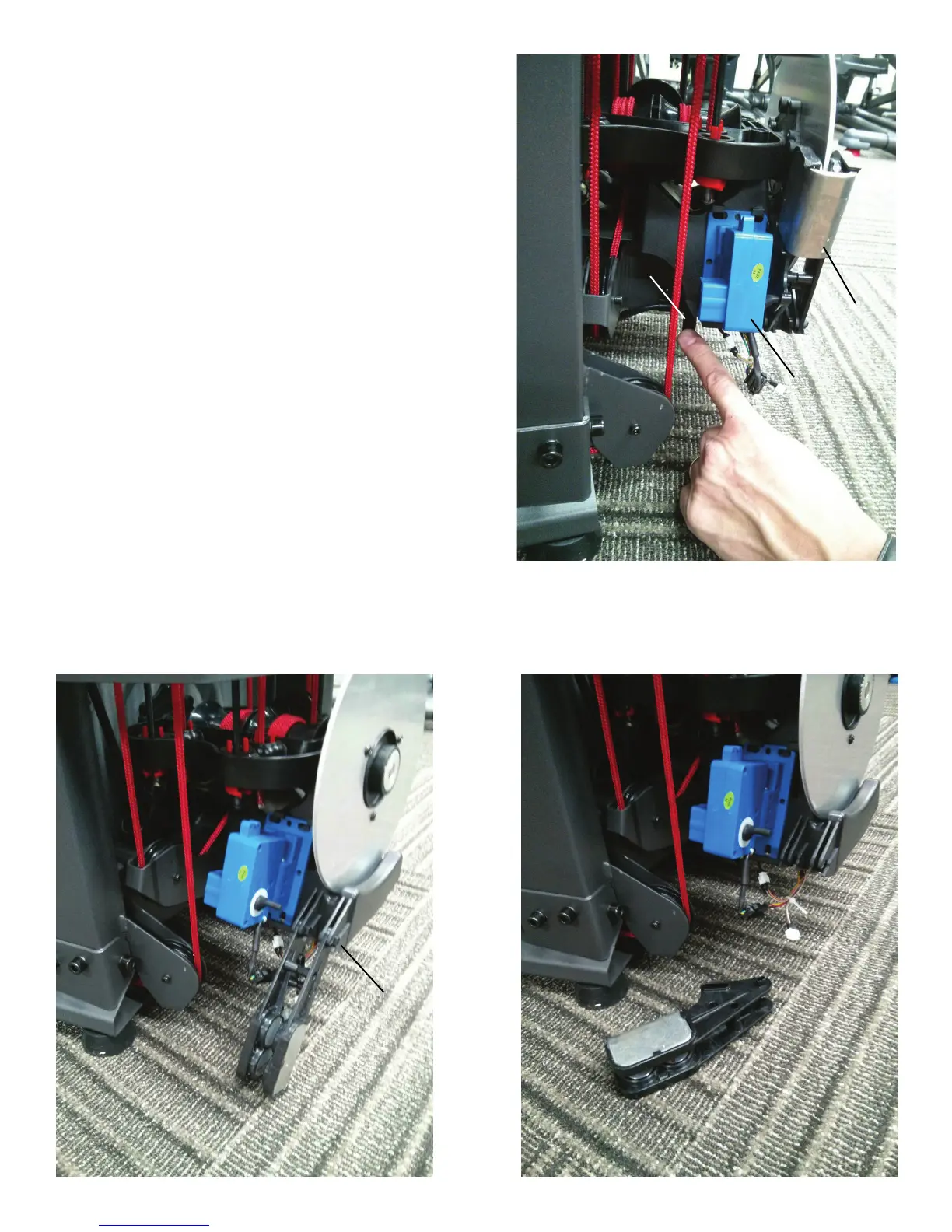

6. Push the Release Tab away from the Servo Motor while supporting
the Brake Assembly.
7. Now slightly shift the Servo Motor toward the front of the machine
while still supporting the Brake Assembly. As the Brake Assembly is
released, allow it to gently pivot downward.
Note: Observe how components are attached to assist with re-
assembly.
8. With the Brake Assembly released and pivoted downward, slide it
out of the Pivot Housing. Note the angle the Brake Assembly must be
held at to slide it into or out of the Pivot Housing.
Brake
Assembly
Servo Motor
Release Tab
Pivot Housing
To Next Page
