122

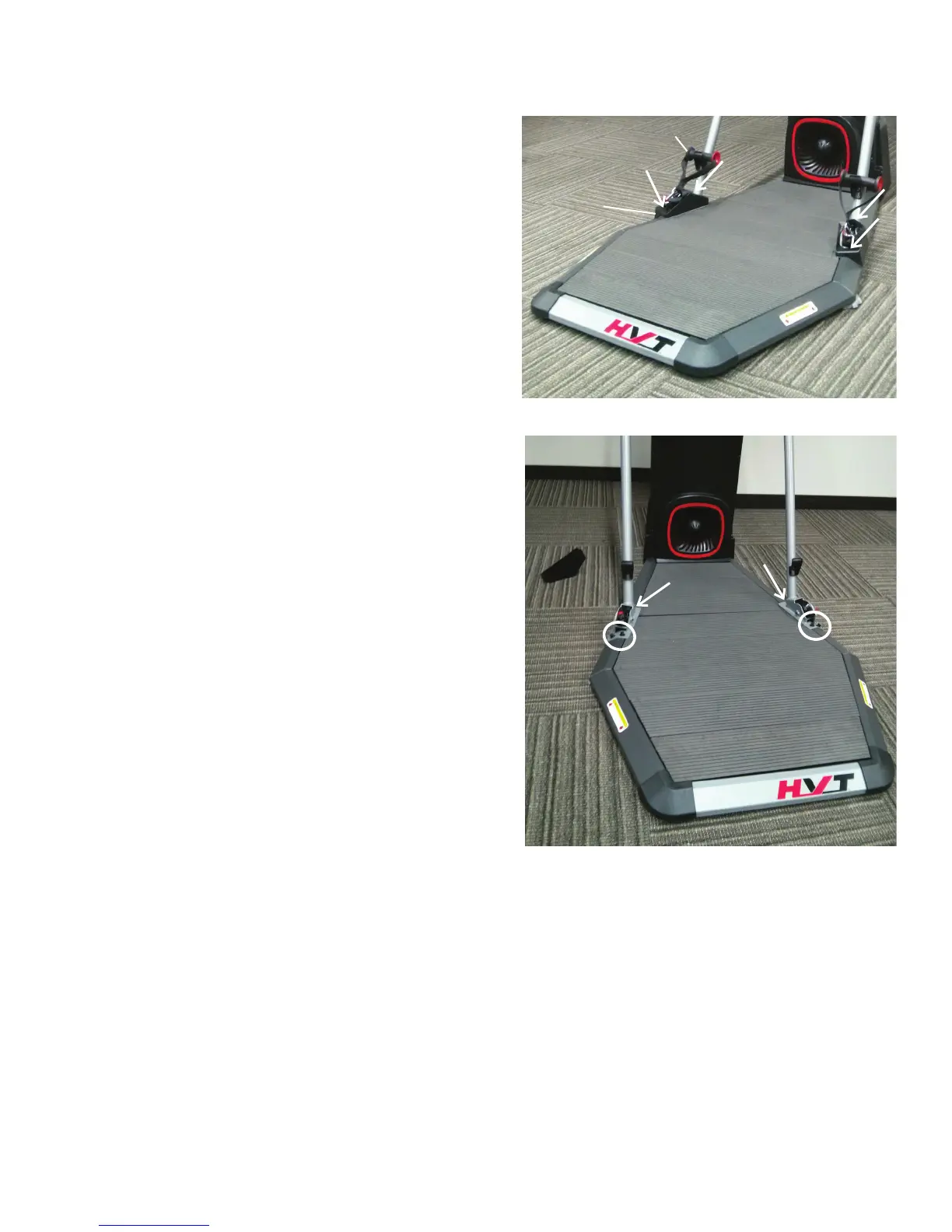

1. Unplug the AC Adapter from the wall outlet and machine.
2. Safely remove both of the Lower Hand Grips and their Snap Hooks
from the machine.
3. Using a #2 Phillips screwdriver, remove the four indicated screws (with
arrows) that secure the Lower Pulley Shrouds to the machine.
4. Using a 6mm hex wrench, loosen the six indicated screws by 1 com-
plete turn.
Lower Hand Grip
Lower Pulley
Shroud
To Next Page
