Bowflex HVT - Page 139

139

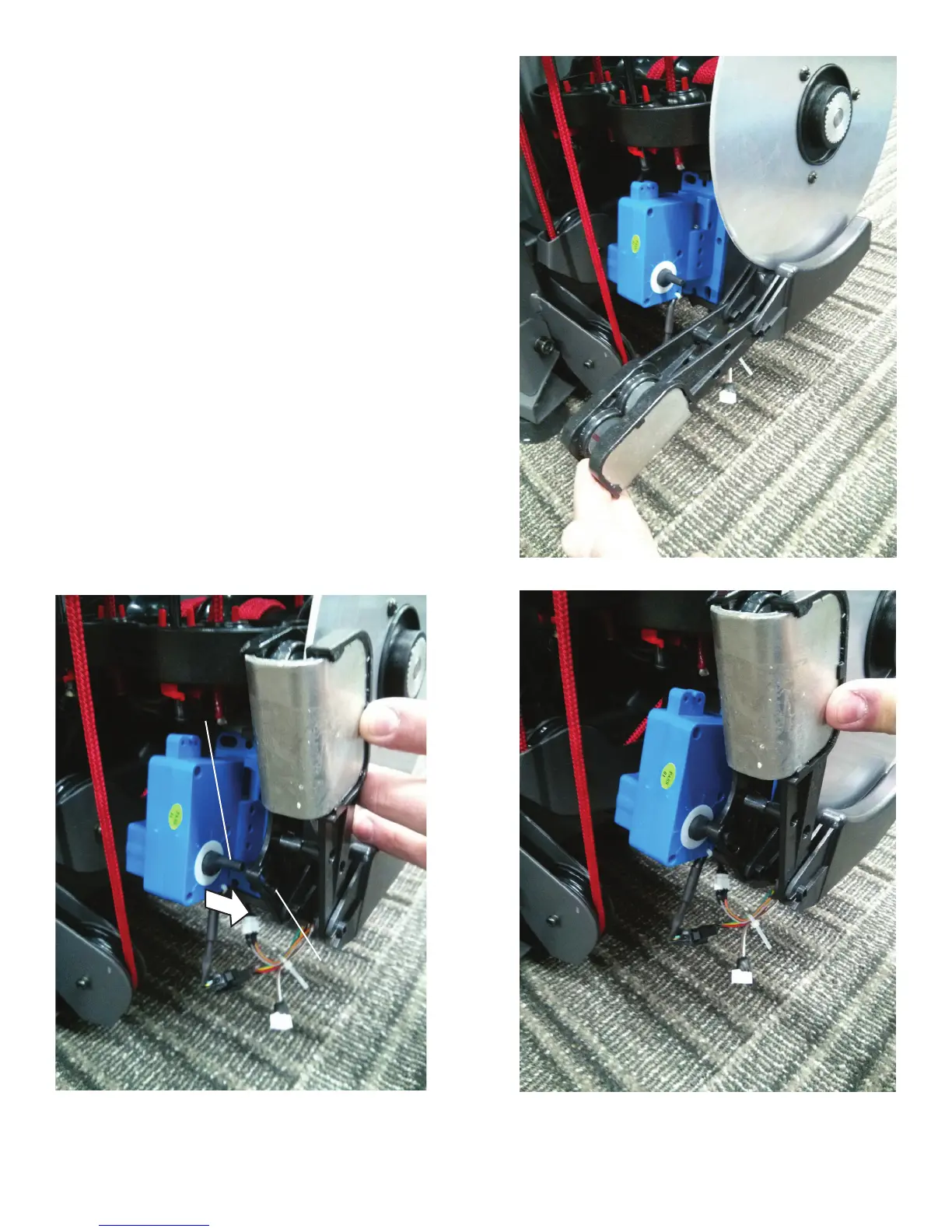

Brake Assembly
Channel
Servo Motor Arm
12. With the Brake Assembly oriented as shown, slide it into the Pivot Housing.
Once inserted, pivot the Brake Assembly up toward the Disc Brake and hold in
place.
Note: If there is any resistance when pivoting the Brake Assembly, it is not
correctly oriented in the Pivot Housing. Remove the Brake Assembly and try
again.
13. With the Brake Assembly pivoted upward, slide the Servo Motor over so
that the Servo Motor Arm slides into the Brake Assembly Channel. The Servo
Motor will latch into place when slid to the right, securing the Brake Assembly.
If screws had secured the Servo Motor, use the screws to attach the new
Servo Motor. Be sure that the Servo Motor Arm is still properly set into the
Brake Assembly Channel.
