NOTICE: ThisdocumentprovidesinstructionsforthereplacementofanUpperRopeontheBowex
®
HVT
™
machine.
If you need assistance, please call Bowflex Customer Service at 1-800-605-3369.
1. Unplug the AC Adapter from the wall outlet and machine.

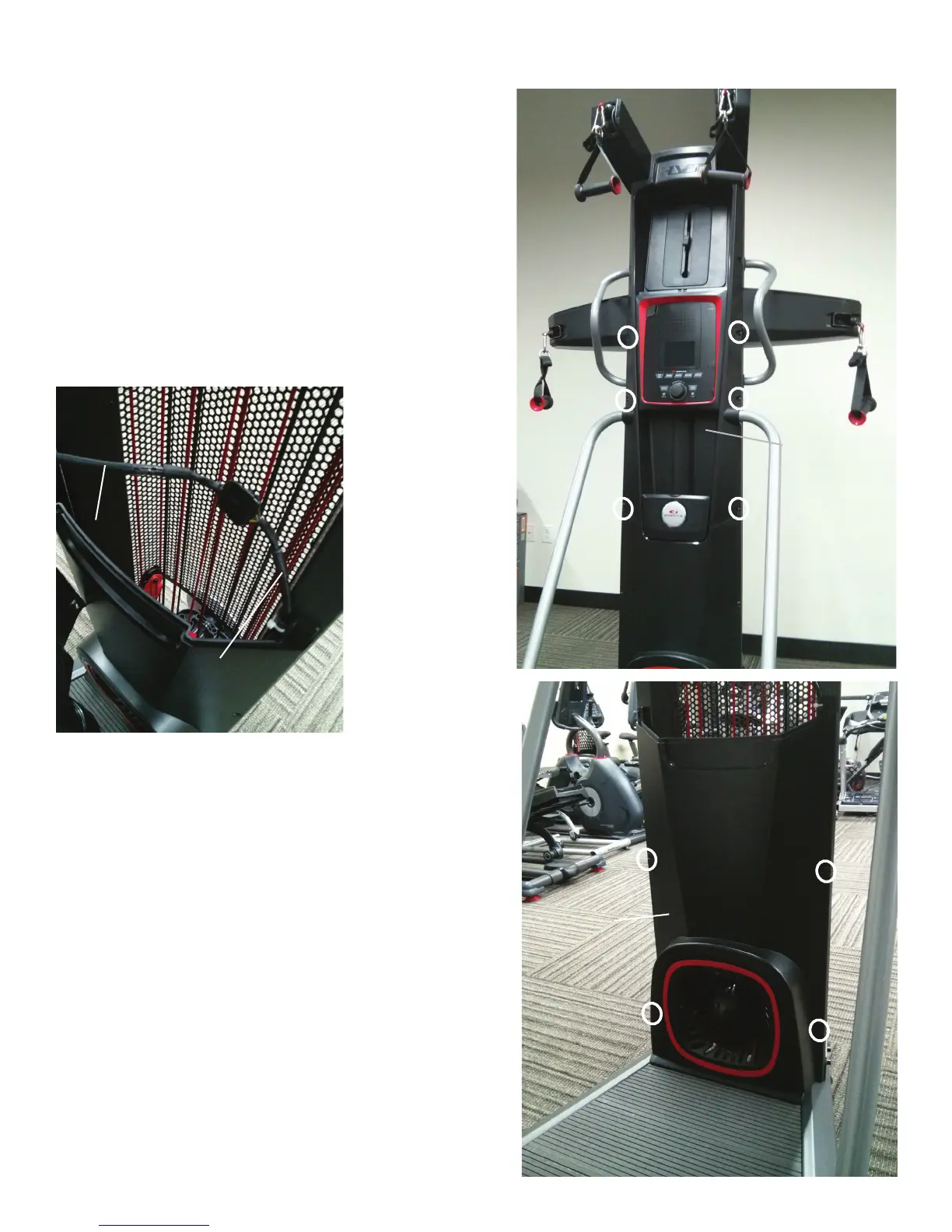

2. Using a #2 Phillips screwdriver, remove the six indicated screws (by
white ovals) from the Console Assembly.
Note: Be prepared to support the Console Assembly.
3. Slightly pivot the top of the Console Assembly out to expose the Con-
sole Cable.
Note: Be sure not to crimp the cable by supporting the Console Assem-
bly.
4. Disconnect the Console Cable from the Lower Cable and safely place
the Console Assembly out of the work area.
5. Using a #2 Phillips screwdriver, remove the four indicated screws from
the Fan Assembly Shroud.
Console Cable
Lower Cable
Console Assembly
Fan Assembly Shroud
