Upper Hand Grip
Snap Hook
Securing Ball
Securing Ball
Center Stopper
If replacing the Middle Deep V Pulley, go to Step 16.
If replacing the Upper Deep V Pulley, continue to the next step.

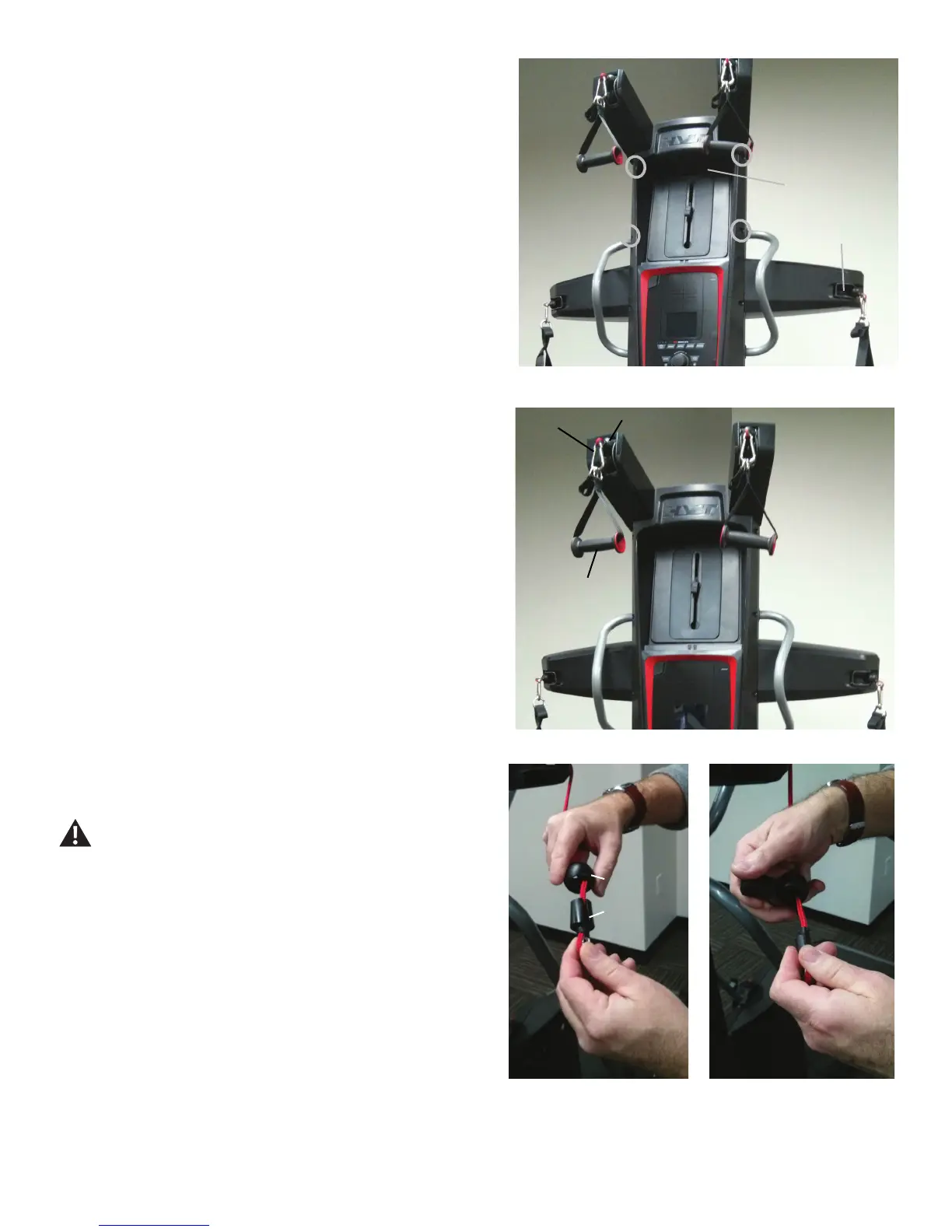

5. Using a #2 Phillips screwdriver, remove the four screws (by grey
ovals) from the Upper Shroud and remove it.
Note: Be prepared to support the Upper Shroud.
6. Safely remove the Upper Hand Grip and the Snap Hook from the
Upper Rope.
Note: Place the Snap Hook in your pocket or somewhere you can
easily access it from the upper, rear area of the machine.
7. Slowly pull out enough of the Upper Rope to be able to remove the
Securing Ball from it.
The Rope will be under tension and will want to pull itself
into the Upper Pulley Shroud. Be sure not to allow any
ngers or hands to be pinched.
8. While keeping the rope from retracting, remove the Securing Ball
from the rope. Do not release the rope until instructed.
Note: Be sure to observe how the rope routes through the Upper
Pulley to assist with re-assembly. To remove the Securing Ball: Slide
the Securing Ball up the rope, remove the Center Stopper from the
rope, and slide the Securing Ball off the rope.
Upper Shroud
Middle
Deep V Pulley
To Next Page
