Bowflex Max Trainer M5 - Parts Identification; Box 1 Parts; Box 2 Parts

Assembly / Owner’s Manual
7

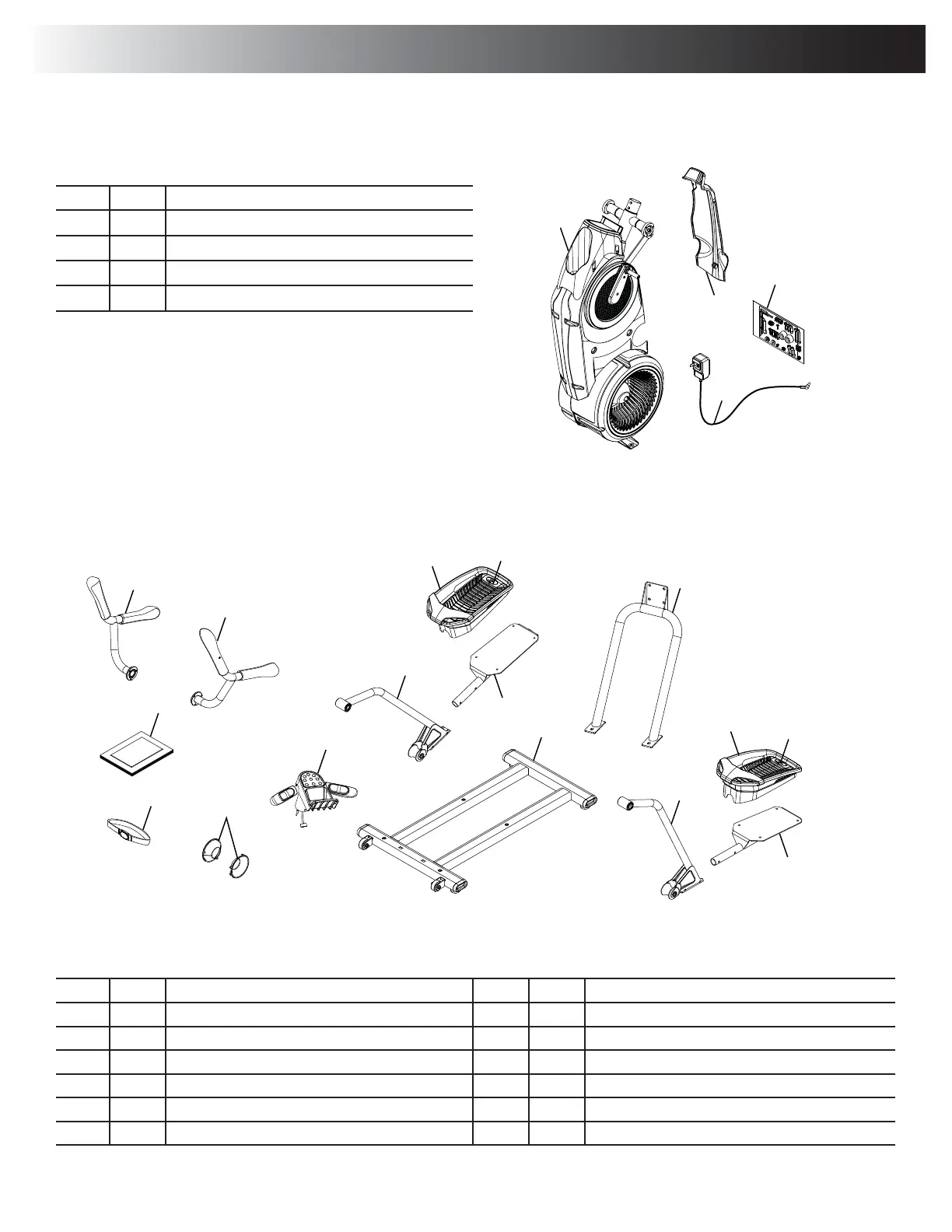

Parts
A decal has been applied to all right (“ R ”) and left (“ L ”) parts to assist with assembly.
Item Qty Description Item Qty Description
5 1 Upper Handlebar, Right 11 1 Rail Assembly
 1 Upper Handlebar, Left 12 1 Stabilizer Assembly
7 2 Leg 13 1 Static Handlebar Assembly
8 2 Foot Pad 14 2 Cap
9 2 Foot Pad Insert 15 1 Heart Rate Chest Strap
10 2 Pedal  1 Manual Kit
( 2 Boxes )
Box 1
Item Qty Description
1 1 Frame
2 1 Shroud, Rear
3 1 AC Adapter
4 1 Hardware Card
5
10
7
9
11
10
7
6
13
14
12
9
8
8
15
16
3
1
2
4
Box 2
