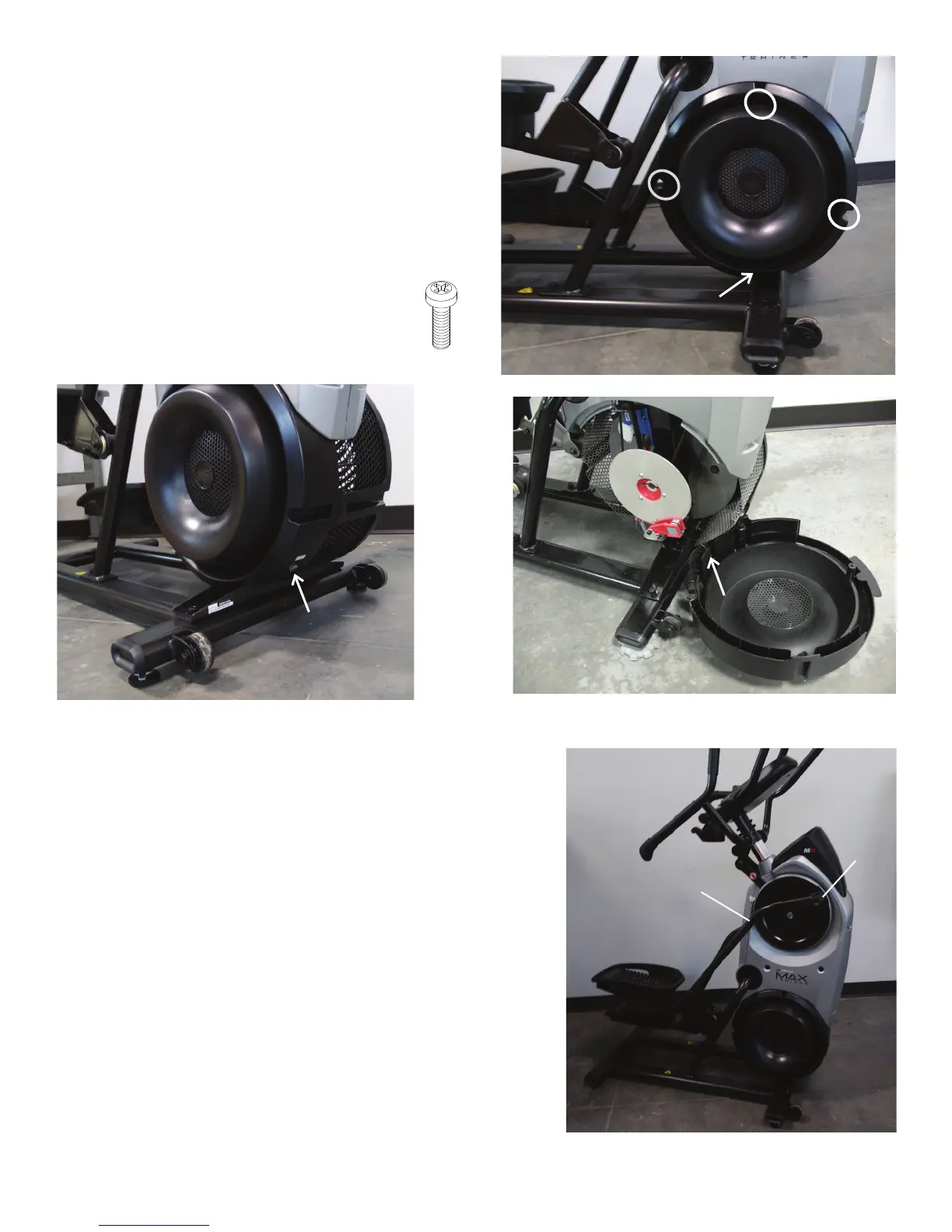

5. Using a #2 Phillips screwdriver, remove the indicated (by ovals)
screws and only loosen the lowest indicated screw (arrow) from the
Right Fan Cover.
6. The Right Fan Cover has a tab that needs to be pushed upward to
clear the loosened screw. While pushing up on the tab, remove the
Right Fan Cover from the assembly.
Note: The Power Cable is attached to the inside of the Right Fan
Cover. Be sure not to crimp the cable by placing the Right Fan Cover
close to the front of the machine.
To assist with assembly, note that the upper screw is a machine
screw and not a self-tapping screw.
7. Remove the indicated Cap from both sides of the machine.
8. Using a 6mm hex wrench, remove the hardware exposed from
below the Cap from both sides of the machine.
9. Slide the Leg Assemblies off of the machine.
Power Cable
Power Inlet
Cap
Leg Assembly
To Next Page
