1. Unplug the AC Adapter from the wall outlet and machine.
2. . Using a 5mm hex wrench, remove the indicated hardware from the
Left Upper Handlebar.
Note: Be aware that the Upper Handlebar must be supported when
removing the hardware.
3. Place a rag or protective material below the Connector Arm to protect
the Shroud from potential scratches from the Connector Arm.

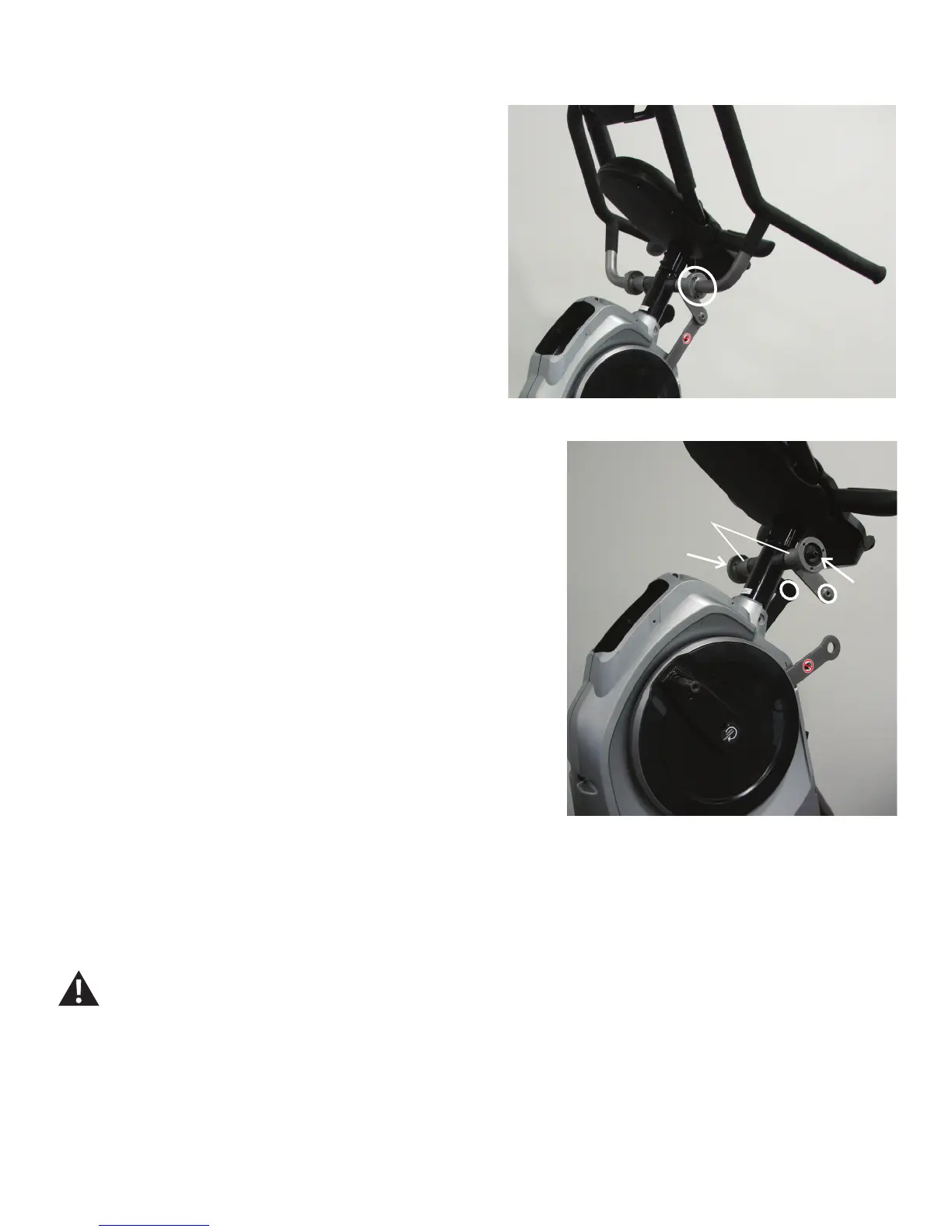

4. Using a 6mm hex wrench, remove the indicated hardware (by oval) that
connects the Connector Arm and the Handlebar Pivot Assembly.
Note: The Connector Arm will pivot downward if not lowered slowly onto
the rag protecting the Shroud.
5. Using a 6mm hex wrench, remove the indicated hardware (by arrow)
that connects the Handlebar Pivot Assembly to the Console Mast.
6. Slide the Handlebar Pivot Assembly off of the Console Mast and
replace with the new assembly.
7. Installation is the reverse procedure.
8. Final Inspection
Inspect your machine to ensure that all hardware is tight and components
are properly assembled.
Do not use until the machine has been fully assembled and
inspected for correct performance in accordance with the
Owner’s Manual.
Handlebar Pivot
Assemblies
Connector Arm
