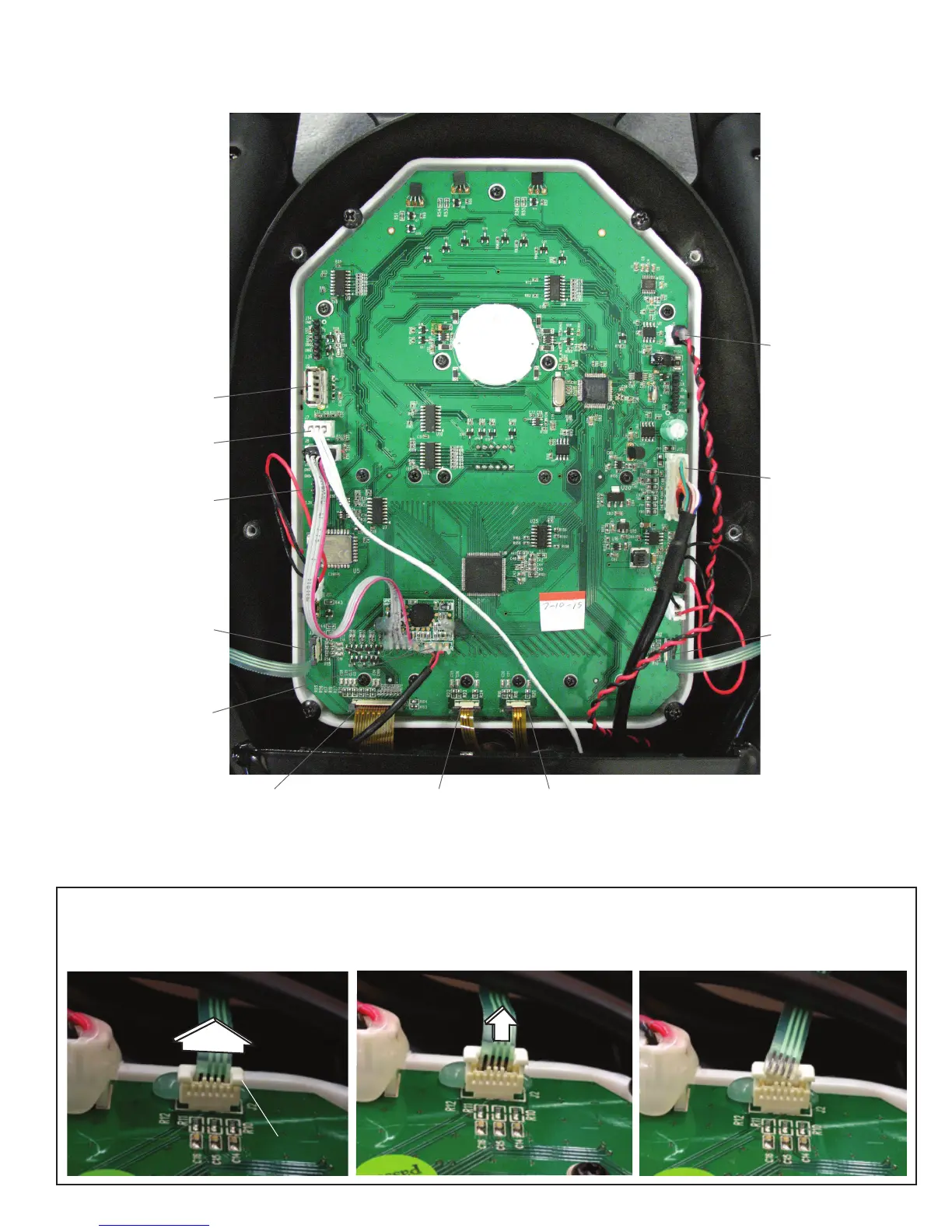

CONSOLE BOARD DETAIL
Target Burn Rate
(Increase)
[ Zero Insertion Force (ZIF)
Connector ]
Target Burn Rate
(Decrease)
[ Zero Insertion Force (ZIF)
Connector ]
Resistance Level
(Increase)
[ Zero Insertion Force (ZIF)
Connector ]
Resistance Level
(Decrease)
[ Zero Insertion Force (ZIF)
Connector ]
Input/Output
Cable
Main Overlay Buttons and
LEDs
Wireless Heart
Rate Module
Cable
USB
Contact Heart
Rate
Bluetooth
®
Module
Speaker
Disconnecting the Zero Insertion Force (ZIF) Connectors:
A. Lift the retaining clip. B. Remove the cable. C. Cable is disconnected from connector.
Zero Insertion Force
(ZIF) Connector
