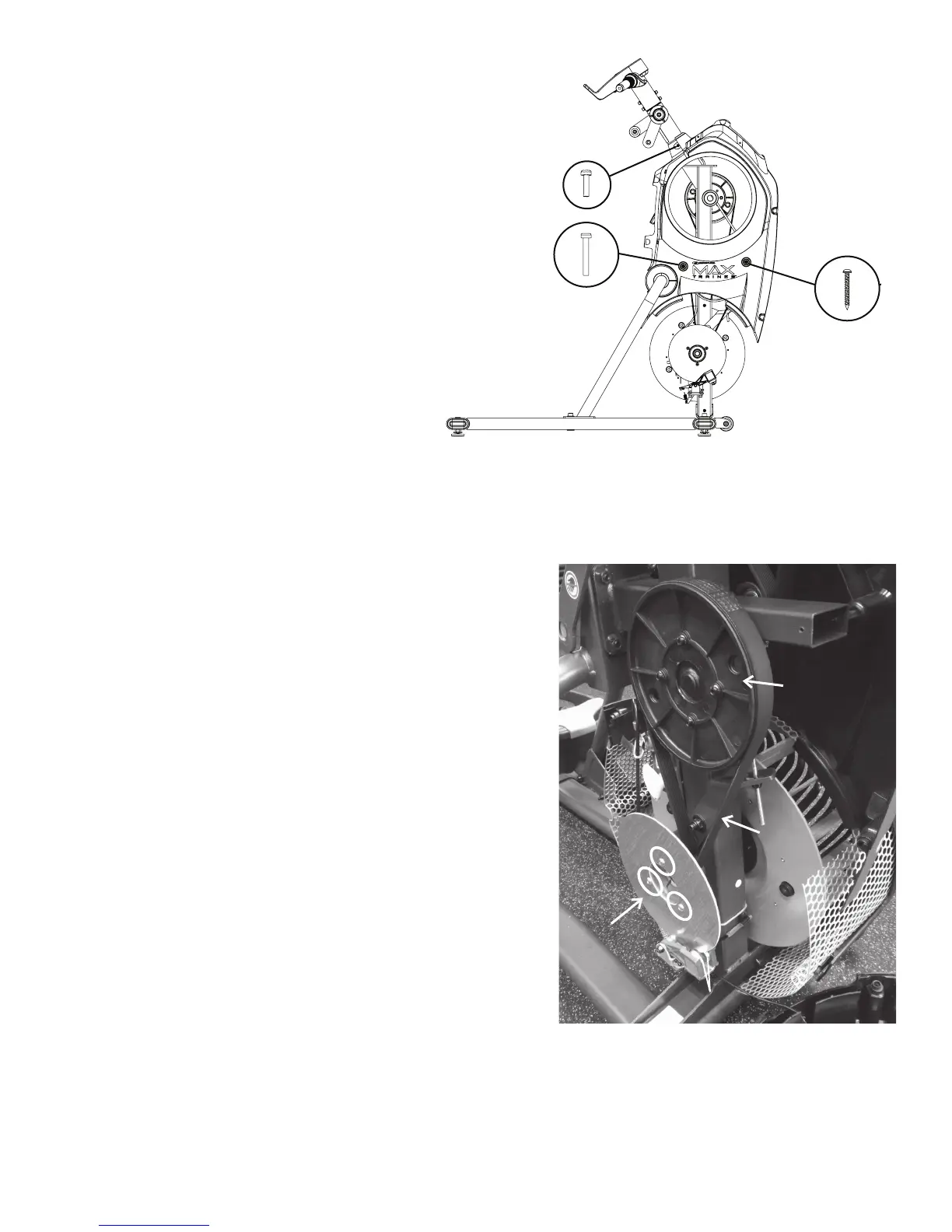

24. Using a #2 Phillips screwdriver, remove the screws from the
Right Shroud ( 3 screws on the Right Shroud). Remove the upper
screws labeled ‘ * ’ last.
25. Using a #2 Phillips screwdriver, remove the 3 indicated screws from the
Brake Disc.
26. Carefully remove the Brake Disc from the machine exposing the lower Fan
Belt.
Fan Belt
Brake Disc
Brake Magnets
Fan Pulley
Right Side Left Side
*
*
