Bowflex Max Trainer M7 - Page 124

124

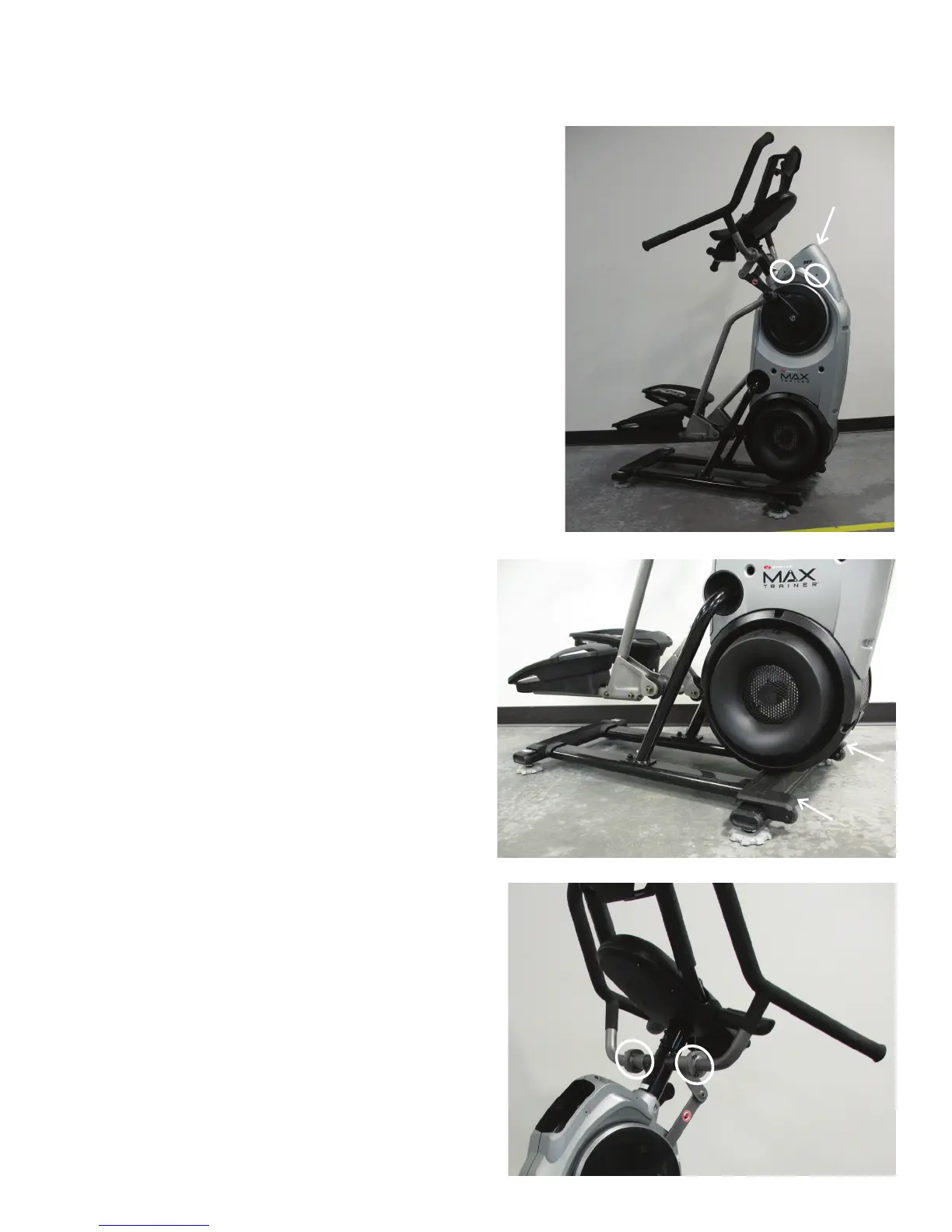

1. Unplug the AC Adapter from the wall outlet and machine.
2. Using a #2 Phillips screwdriver, remove the 4 screws (2 indicated on
one side) from the Upper Shroud.
3. Remove the Right and Left Stabilizer Shrouds from the machine.
4. Using a 5mm hex wrench, remove the indicated hardware from the
Right and Left Upper Handlebar.
Note: Be aware that the Right and Left Upper Handlebar must be sup-
ported when removing the hardware.
Upper Shroud
